Two Scan Engine Options on One Rugged Android Handheld
A 5.2-inch 1920 x 1080 display, an 8000 mAh main battery, and a body rated for 1.5 m / 4.9 ft. drops to concrete.
The C72 carries a full shift of barcode work on one charge: the 8000 mAh main battery is quoted at over 12 hours of continuous use, depending on the user environment. Which optics it carries is decided at order time. The 1D configuration runs the Honeywell N4313 linear scanner where every label is a linear code; the 2D configuration takes a Zebra SE4710, SE4750SR, SE4750MR, SE4750DP, or Honeywell N6603 imager where stacked, matrix, and postal symbologies turn up on the same round. Both builds share the same body, the same battery, and the same Corning Gorilla Glass touch panel that responds to gloves and wet hands. The platform is Android 11/13 with GMS, FOTA, Soti MobiControl, and SafeUEM support, on an octa-core 2.3GHz processor.
- Zebra SE47102D imager option
- Zebra SE4750 seriesSR, MR and DP variants
- Honeywell N6603Alternate 2D imager
- Honeywell N43131D linear scan engine
- Corning Gorilla GlassTouch panel cover glass
- Android 11/13GMS and FOTA supported
- Soti MobiControlSafeUEM also supported
- Bluetooth 5.0Wireless accessory pairing
- IEEE802.11 a/b/g/n/ac2.4G/5G dual-band
- GPS, GLONASS, BeiDouInternal GNSS antenna
- USB 2.0 Type-COTG and headphones
- ISO 14443A/BAlso ISO 15693, NFC-IP1
Overview
The C72 is a rugged Android handheld for work that runs on barcode data from the first scan of the shift to the last. It carries a 5.2-inch IPS LTPS 1920 x 1080 display, an octa-core 2.3GHz processor, 3GB + 32GB of memory with a 4GB + 64GB option, and a rechargeable 8000 mAh Li-ion main battery quoted at over 12 hours of continuous use depending on the user environment.
The optics are the only difference between the two configurations. Order the Honeywell N4313 and the engine reads linear symbologies; specify a 2D imager and it also decodes PDF417, Datamatrix, QR code, Aztec, MaxiCode, and postal codes. Dimensions, battery, keypad layout, and accessory fit are identical either way, so the fleet runs on one software image, one training session, and one set of spares.
The scan engines come from Zebra and Honeywell under their own part numbers, the cover glass is Corning Gorilla Glass, and the touch panel stays usable with gloves and wet hands. Android 11/13 supports GMS, FOTA, Soti MobiControl, and SafeUEM, so devices can be enrolled and updated without being collected from the floor. Explore the full range of mobile computers.
Key Features
Platform and Connectivity
- Android 11/13, GMS supported
- Octa-core, 2.3GHz
- 3GB + 32GB; 4GB + 64GB optional
- 5.2-inch IPS LTPS 1920 x 1080
- IEEE802.11 a/b/g/n/ac dual-band
Power and Endurance
- 8000 mAh Li-ion main battery
- Host IP65 per IEC specifications
- 1.5 m / 4.9 ft. drops to concrete
- 1000 x 0.5 m / 1.64 ft. tumbles
- Operating Temp. -20 °C to 50 °C
Data Capture
- Honeywell N4313 1D linear scanner
- Zebra SE4710 and SE4750 imagers
- 13 MP autofocus camera with flash
- NFC at 13.56 MHz, 2-4 cm range
- Micro SD (TF) card up to 256GB
Features & Functions at a Glance
Choose Your Configuration
| Feature | C72 with 1D Linear Scanner | C72 with 2D Imager |
|---|---|---|
| Best for | Shelf and asset work where every label is a linear code, read one after another for a full shift | Mixed rounds where linear labels sit next to QR code, Datamatrix, and postal symbologies on the same item |
| Form factor | 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in., 654 g / 23.07 oz. | |
| Shared hardware | Identical in both configurations | |
| Display | 5.2'' IPS LTPS 1920 x 1080, Corning Gorilla Glass, gloves and wet hands supported | |
| Battery | Li-ion, rechargeable, 8000 mAh | |
| Memory | 3GB + 32GB; 4GB + 64GB (optional) | |
| Camera | 13 MP Autofocus with flash | |
| NFC | 13.56 MHz, ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 | |
| Sealing and drop | Host IP65 per IEC sealing specifications; multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range | |
| Data capture | The rows below are the only differences | |
| Scan engine | Honeywell: N4313 | Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60 |
| 1D symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. | |
| 2D symbologies | — | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes |
| Platform | Common to both configurations | |
| Operating system | Android 11/13; GMS, FOTA, Soti MobiControl, SafeUEM supported | |
| Processor | Octa-core, 2.3GHz | |
| Wireless | IEEE802.11 a/b/g/n/ac 2.4G/5G dual-band; 2G, 3G and 4G WWAN; Bluetooth 5.0; GPS/AGPS, GLONASS, BeiDou | |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported | |

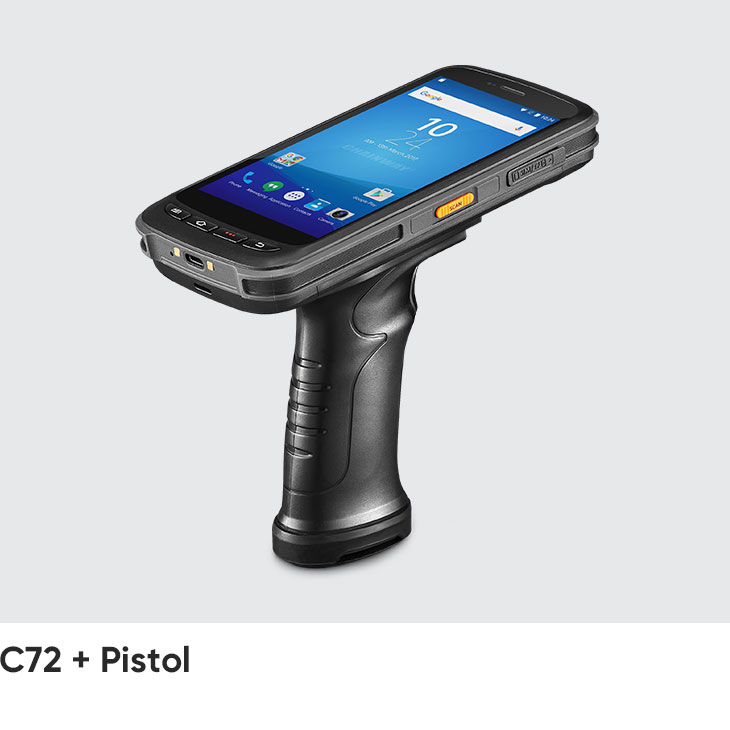

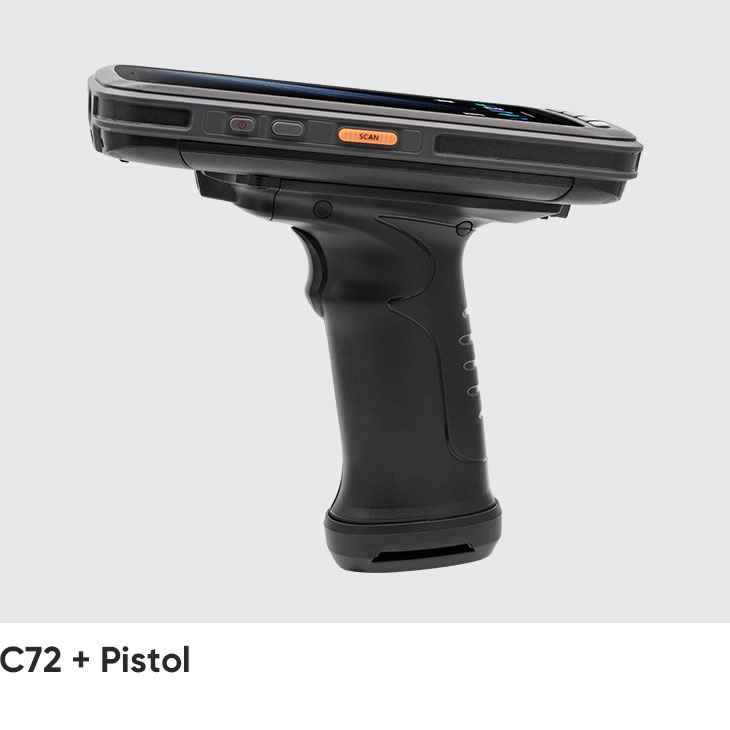

Accessory compatibility — both configurations share one body, so any accessory that fits one fits the other. The pistol grip shown in the product images is an order-time option; its part number and fit are confirmed in writing on the order.
Every value in this table matches the full Specifications section below.
A Closer Look at the Hardware

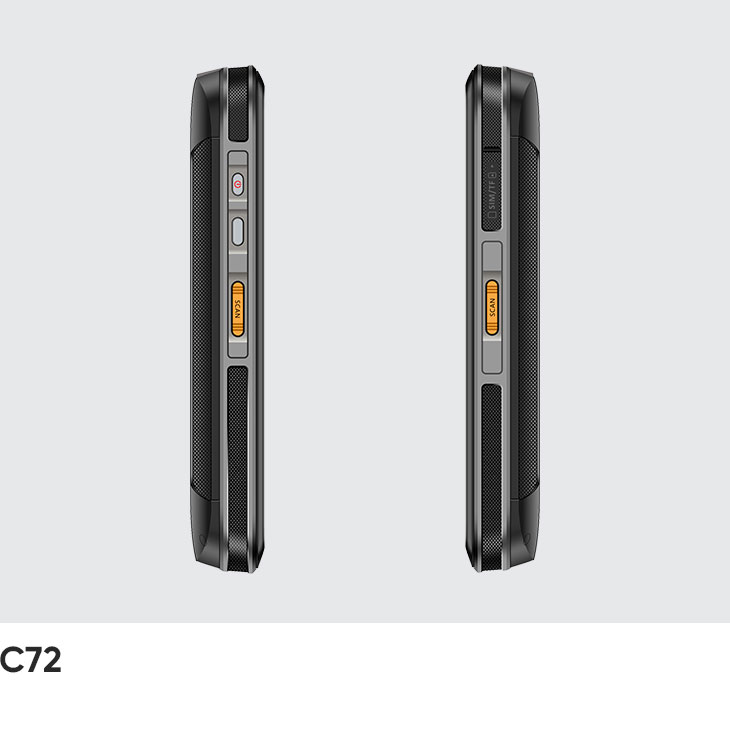

A scan key on each edgeThe keypad carries 4 front keys, 1 power key, 2 scan keys, and 1 multifunctional key. One scan key sits on each side of the body, so left- and right-handed operators reach it the same way.

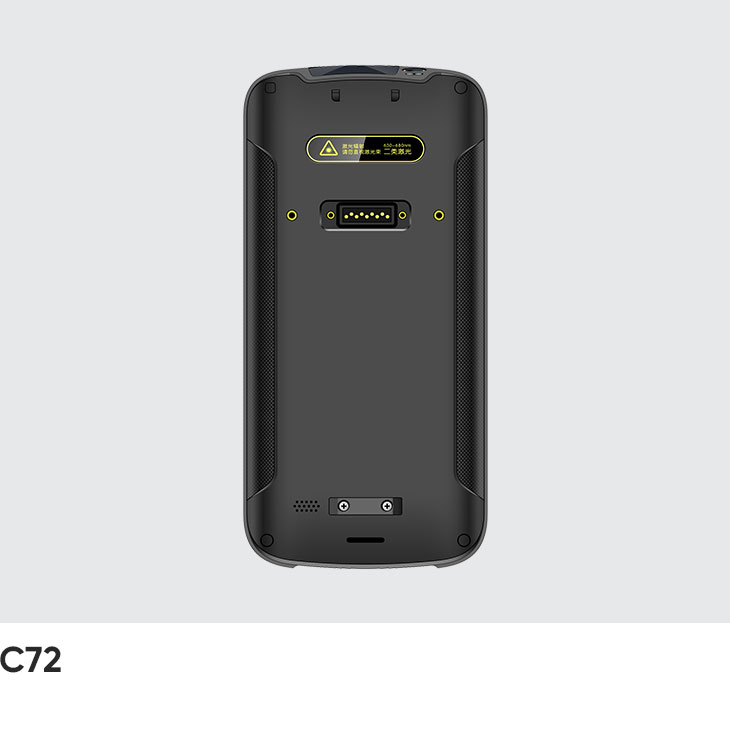

Contact block and battery coverThe rear face carries a contact block, a speaker opening, and a cover over the 8000 mAh Li-ion main battery. The scan window and its laser warning label sit at the top edge.
5.2-inch panel above the keysThe 1920 x 1080 IPS LTPS display fills the upper face, with the 4 front keys in a row beneath it. The multi-touch panel is Corning Gorilla Glass and accepts gloves and wet hands.
Specifications
Physical Characteristics
- Dimensions
- 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
- Weight
- 654 g / 23.07 oz.
- Display
- 5.2'' IPS LTPS 1920 x 1080
- Touch Panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Power
- Main battery: Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable) - Notification
- Sound, LED indicator
- Expansion Slot
- 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
- Interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
- Audio
- 1 microphone; 1 speaker; receiver
- Keypad
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
- Sensors
- Light sensor, proximity sensor, gravity sensor
Communication
- WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA: B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA: A/F
4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
B28B/B34/B38/B39/B40/B41 - WWAN (Others)
- Depending on the country's ISP
- Bluetooth
- Bluetooth 5.0
- GNSS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
* C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Developing Environment
- Operating System
- Android 11/13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- SDK
- CedaGlo Software Development Kit
- Language
- Java
- Tool
- Eclipse / Android Studio
Performance
- CPU
- Octa-core, 2.3GHz
- RAM+ROM
- 3GB + 32GB
4GB + 64GB (optional) - Expansion
- Supports up to 256GB Micro SD (TF) card
User Environment
- Operating Temp.
- 4 °F to 122 °F / -20 °C to 50 °C
- Storage Temp.
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
- Drop Specification
- Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble Specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Sealing
- Host IP65 per IEC sealing specifications
- ESD
- ±15 KV air discharge, ±6 KV conductive discharge
Barcode Scanning
- 1D Linear Scanner
- Honeywell: N4313
- 2D Imager Scanner
- Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
- 1D Symbologies
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
* This function is optional
Camera
- Camera
- 13 MP Autofocus with flash
NFC
- Frequency
- 13.56 MHz
- Protocol
- ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
- Chips
- M1 card (S50, S70), CPU card, NFC tags, etc.
- Range
- 2-4 cm
Every row above is transcribed from the C72 configuration sheet. Items not listed there are not offered on this page.
Why Buy the C72 From CedaGlo
Components You Can Verify
Every scan engine, processor, and cover glass named on this page carries its maker's own part number. Look each one up on the supplier site before you buy, then hold the delivered unit to that same list.
Configured Before It Ships
Tell us which symbologies your labels carry and how much memory your application needs, and the unit leaves the line already built that way. No swapping optics on a bench, no second order to correct the first.
Try It Before You Commit
Ask for a sample and run it against your own labels, your own network, and a real picking round. What that trial shows decides the final build, not a datasheet read across a meeting room table.
Serviceable for the Long Run
Spare part supply, repair turnaround, and firmware support are agreed in writing when you order, so a fleet deployed this year is still supportable when you add to it three years from now.
Frequently Asked Questions
Which barcodes can the C72 read?
That depends on the scan engine you order. The 1D configuration uses the Honeywell N4313 linear scanner and covers UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI and RSS. The 2D configuration adds PDF417, MicroPDF417, Composite, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode and postal codes including US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal and Dutch Postal (KIX).
Which configuration should I order?
Order the 1D configuration when every label on the route is a linear barcode, such as shelf labels and printed asset tags. Order the 2D configuration when the same round mixes linear codes with QR code, Datamatrix or postal symbologies. Both configurations share one body, one 8000 mAh battery and one Android 11/13 image, so the choice does not change your software rollout.
Which components are inside the C72?
The scan engines are supplied by Zebra (SE4710, SE4750SR, SE4750MR and SE4750DP) and Honeywell (N4313 and N6603). The touch panel uses Corning Gorilla Glass and accepts input from gloves and wet hands. The processor is an octa-core running at 2.3GHz, paired with 3GB + 32GB of memory or an optional 4GB + 64GB. Every part number listed here can be checked on the component maker's own site.
How long does the C72 run between charges?
The main battery is a rechargeable 8000 mAh Li-ion pack. The configuration sheet quotes over 12 hours of continuous use depending on the user environment, over 500 hours of standby, and a charging time of 3-4 hours with the standard adaptor and USB cable. Battery lifecycle and spare part availability are confirmed in writing on the order.
How rugged is the C72?
The configuration sheet rates the host at IP65 per IEC sealing specifications. It also quotes multiple 1.5 m / 4.9 ft. drops to the concrete, at least 20 times, across the operating temperature range, and 1000 falls of 0.5 m / 1.64 ft. at room temperature. Operating temperature runs from minus 20 to 50 degrees Celsius, and ESD is quoted at plus or minus 15 KV air discharge and plus or minus 6 KV conductive discharge.
How is the C72 maintained after delivery?
Applications are built with the CedaGlo Software Development Kit in Java, using Eclipse or Android Studio. The platform supports GMS, FOTA, Soti MobiControl and SafeUEM, so images and policies reach the fleet without devices being collected. Warranty terms, spare part supply and RMA handling are confirmed in writing on the order.
