An Android Handheld Built for Full-Shift Field Work
A 5.5" 1440 x 720 display, a 5000mAh removable battery, and a body rated for 1.5 m / 4.9 ft. drops to the concrete.
An octa-core 2.0GHz processor with 4GB of RAM and 64GB of storage runs Android 12 with GMS, so line-of-business applications and a data-capture workflow run on one device. The two builds share that platform: one handles voice, forms, photos, and NFC card taps, and the other adds a Zebra 2D imager for barcode-driven work. Both are sealed to IP68 per IEC sealing specifications and rated for multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range. The imager is a Zebra SE4710 or CM60, chosen at order time. Dual-band 802.11 a/b/g/n/ac, Bluetooth 5.0, Vo-LTE, and GNSS keep the fleet on tooling your IT team already supports.
- Android 12GMS included
- Zebra 2D imagerSE4710 or CM60
- 802.11 a/b/g/n/ac2.4G/5G dual-band, 5G PA
- Bluetooth 5.0Headsets, printers, cradles
- Vo-LTEVoice carried over LTE
- FDD-LTE and TDD-LTEBands listed in full below
- GNSSGPS, GLONASS, BeiDou
- NFC 13.56 MHz2-4 cm read range
- ISO14443A/BContactless card protocol
- USB Type-CUSB 2.0 with OTG
- Micro SD (TF) cardUp to 256GB
- JavaEclipse or Android Studio
Overview
The MC95 is a rugged Android handheld for staff who spend the whole shift away from a desk. An octa-core 2.0GHz processor, 4GB of RAM, and 64GB of storage carry Android 12 with GMS, and the 5.5" 1440 x 720 multi-touch panel answers to gloves and wet hands. The 5000mAh main battery is removable and supports quick charge, so a spare goes in on the floor instead of at a bench.
One part separates the two builds: the Zebra 2D imager. Order it and the imager reads the 1D and 2D symbologies listed further down, from Code128 and Interleaved 2 of 5 through PDF417, Datamatrix, and QR code. Leave it out and the same housing still carries NFC at 13.56 MHz, a 13MP autofocus rear camera with flash, and a 5MP front camera. The body, the battery, the radios, and the operating system are identical either way, so one deployment covers a mixed fleet.
The imager is a Zebra SE4710 or CM60. Wireless covers IEEE802.11 a/b/g/n/ac on 2.4G and 5G with a 5G PA, Bluetooth 5.0, Vo-LTE, and GNSS across GPS/AGPS, GLONASS, BeiDou, and Galileo. Developers write in Java, in Eclipse or Android Studio, against the CedaGlo Software Development Kit. Explore the full range of rugged mobile computers.
Key Features
Platform and Display
- Octa-core, 2.0GHz
- 4GB RAM + 64GB ROM
- Android 12 with GMS
- 5.5" 1440 x 720 panel
- 802.11 a/b/g/n/ac, 2.4G/5G
Sealed Body and Endurance
- 5000mAh removable battery
- IP68 sealing per IEC
- 1.5 m / 4.9 ft. drops to concrete
- ±15 KV air discharge ESD
- Operating -20 °C to 50 °C
Data Capture Options
- Zebra SE4710 or CM60 imager
- 1D and 2D symbologies
- NFC 13.56 MHz, 2-4 cm
- 13MP autofocus rear camera
- 5MP front camera
Features & Functions at a Glance
Choose Your Configuration
| Feature | MC95, no imager | MC95, with 2D imager |
|---|---|---|
| Best for | Voice, forms, photo capture, and NFC card taps through a full shift | Barcode-driven picking, receiving, and stock counts through a full shift |
| Shared hardware | Identical in both configurations | |
| Dimensions | 160.0 x 75.0 x 16.4mm / 6.30 x 2.95 x 0.65in. | |
| Weight | 288g / 10.16 oz (device with battery) | |
| Display | 5.5'' , 1440 x 720 | |
| Power | 5000mAh removable main battery, support quick charge | |
| Sealing | IP68 per IEC sealing specifications | |
| Drop | Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range | |
| NFC | 13.56 MHz, 2-4 cm | |
| Cameras | 5MP front; 13MP Autofocus with flash rear | |
| Configuration differences | The two rows below are the only ones that differ | |
| 2D Scanner | — | Zebra: SE4710; CM60 |
| Symbologies | — | 1D and 2D, listed in full under Specifications |
| Platform | Common to both configurations | |
| Operating System | Android 12; GMS | |
| CPU | Octa-core, 2.0GHz | |
| RAM+ROM | 4GB + 64GB | |
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA | |
| Bluetooth | Bluetooth 5.0 | |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo | |
Accessory compatibility — The adaptor, USB cable, and charging cradle listed under Optional Accessories fit both configurations. For detailed specification, please check Accessory Guide.
Every value in this table matches the full Specifications section below.
A Closer Look at the Hardware

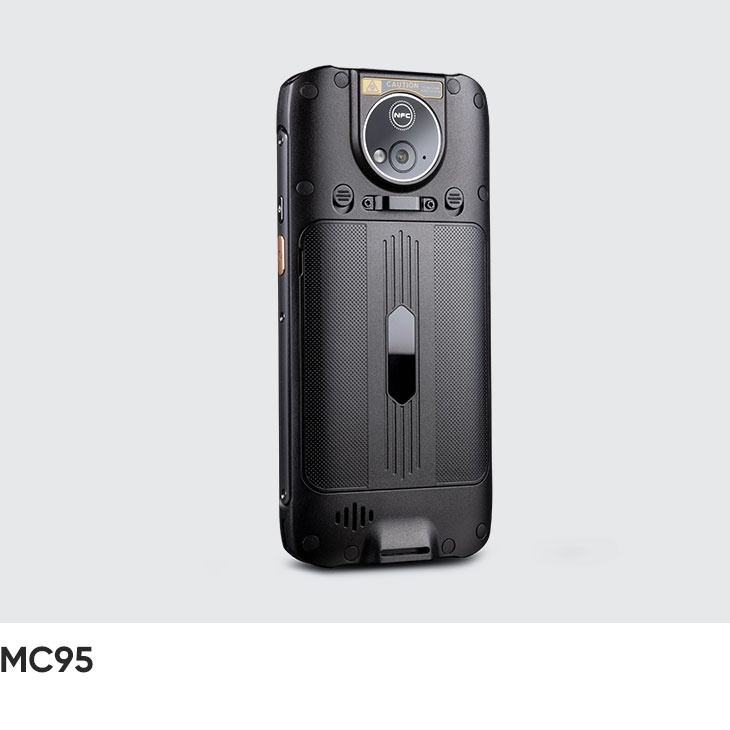

Battery door with two latchesThe removable main battery sits behind a door held by two latches, so a spare goes in without tools. The NFC read area and the rear camera with its flash sit above the door, and a speaker port runs along the lower edge.

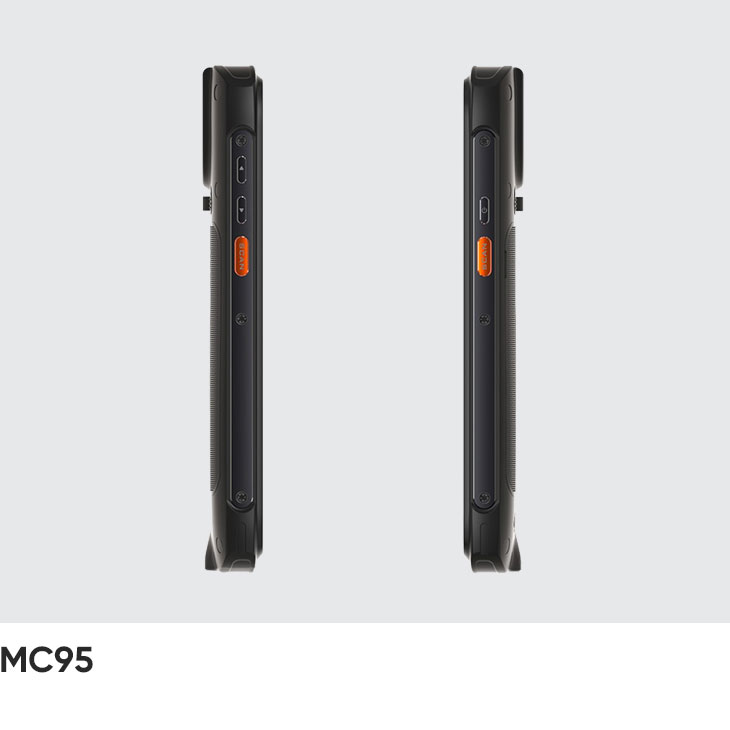

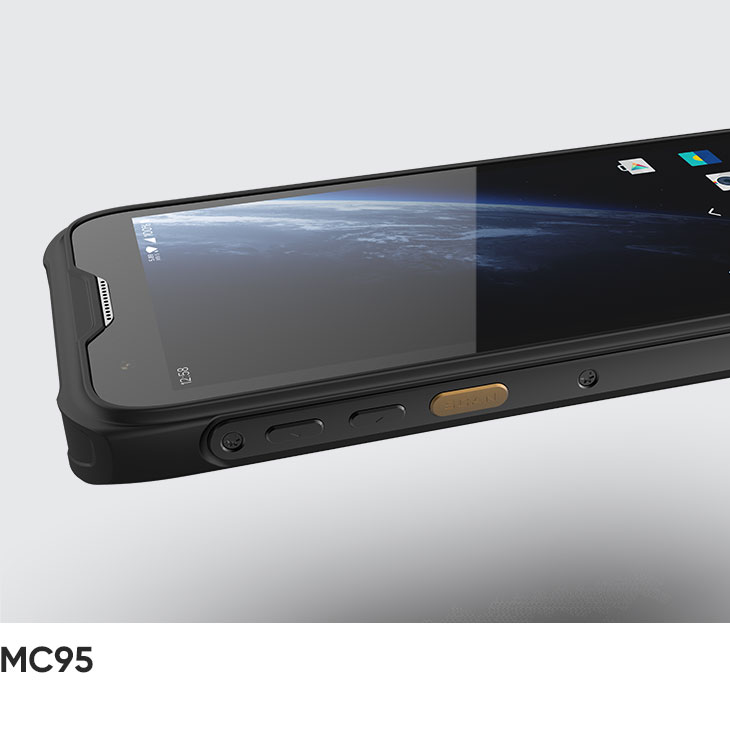

A scan key on each side edgeThe keypad carries a power key, two scan keys, and volume (+/-) keys. One scan key sits on each side edge beside the volume keys, so left- and right-handed users reach the trigger the same way.

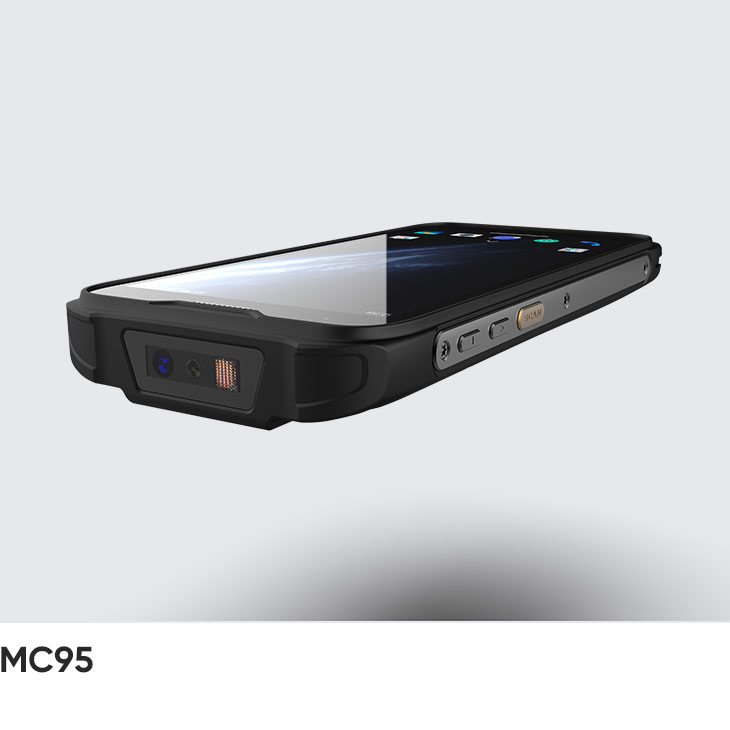

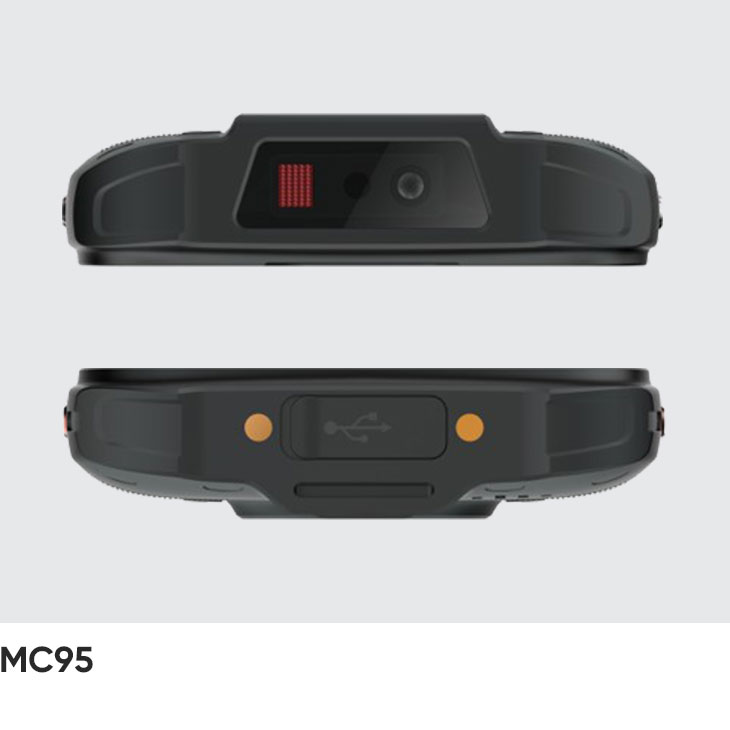

Scan window up top, port belowThe scan window and the rear camera share the top face, pointing away from the operator. On the bottom face a hinged cover protects the USB Type-C port, with a metal contact to either side of it.
Specifications
Physical Characteristics
- Dimensions
- 160.0 x 75.0 x 16.4mm / 6.30 x 2.95 x 0.65in.
- Weight
- 288g / 10.16 oz (device with battery)
- Display
- 5.5'' , 1440 x 720
- Touch Panel
- Multi-touch panel, gloves and wet hands supported
- Power
- 5000mAh removable main battery, support quick charge
- Notification
- Sound, LED indicator, vibrator
- Expansion Slot
- 1 slot for SIM card, 1 slot for SIM or TF card
- Interfaces
- USB Type-C, USB 2.0, OTG
- Audio
- 2 microphones, 1 for noise cancellation; 2 speakers; receiver
- Keypad
- Power key, 2 scan keys, volume (+/-) keys
- Sensors
- Light sensor, proximity sensor, gravity sensor
Communication
- WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, 5G PA
- WWAN
- 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 /
B20 / B28A / B28B)
TDD-LTE (B38 / B39 / B40 / B41) - Bluetooth
- Bluetooth 5.0
- Vo-LTE
- Support
- GNSS
- GPS/AGPS, GLONASS, BeiDou, Galileo
Developing Environment
- Operating System
- Android 12; GMS
- SDK
- CedaGlo Software Development Kit
- Language
- Java
- Tool
- Eclipse / Android Studio
Performance
- CPU
- Octa-core, 2.0GHz
- RAM+ROM
- 4GB + 64GB
- Expansion
- Supports up to 256GB Micro SD (TF) card
User Environment
- Operating Temp.
- -4 °F to 122 °F / -20 °C to 50 °C
- Storage Temp.
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
- Drop Specification
- Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
- Tumble Specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Sealing
- IP68 per IEC sealing specifications
- ESD
- ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
- 2D Scanner
- Zebra: SE4710; CM60
- 1D Symbologies
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
*This function is optional
Camera
- Front Camera
- 5MP
- Rear Camera
- 13MP Autofocus with flash
NFC
- Frequency
- 13.56 MHz
- Protocol
- ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
- Chips
- M1 card (S50, S70), CPU card, NFC tags, etc.
- Range
- 2-4 cm
Optional Accessories
- Accessories
- Adaptor, USB Cable, Charging Cradle, etc.
* For detailed specification, please check Accessory Guide.
Every row above is transcribed from the MC95 configuration sheet. Items not listed there are not offered on this page.
Why Buy the MC95 From CedaGlo
Components You Can Verify
We name the parts. The imager is a Zebra module, the operating system is Android 12 with GMS, and both appear by name in the specifications above. Look them up on the vendor sites before you decide, not after the units land.
Configured Before It Ships
You pick the build when you order, not off a shelf. The imager option, the memory image, and the network settings are set before the units leave us, so the first handheld your team opens is already the one you asked for.
Try It Before You Commit
Ask for an evaluation unit and run it through a real working day. Scan your own labels, cover your own aisles, and check your own access points. We would rather find a mismatch now than halfway through a rollout.
Serviceable for the Long Run
Hardware outlives a purchase order. Batteries, cradles, and cables stay orderable, and repairs run through a written return process. Warranty length and spare part supply are set out in writing at the point of purchase.
Frequently Asked Questions
What can the 2D imager on the MC95 read?
The imager is a Zebra SE4710 or CM60, chosen at order time. It reads the 1D symbologies listed in the specifications above, among them UPC/EAN, Code128, Code39, Codabar, and Interleaved 2 of 5, and the 2D symbologies including PDF417, MicroPDF417, Datamatrix, QR code, Micro QR code, Aztec, and MaxiCode, plus the postal codes listed there. Read distance depends on symbol size, print quality, and ambient light, so no single figure applies. The imager is optional and the configuration without it is on this page.
Which of the two configurations should I order?
Order the configuration with the Zebra imager when the work is barcode-driven: picking, receiving, and stock counts. Order the configuration without it when the work runs on NFC card taps, forms, photos, and voice. Everything else matches across both, including the 5.5 inch 1440 x 720 display, the 5000mAh removable battery, the radios, and the software image, so one image serves a mixed fleet.
Which components are inside the MC95?
The 2D imager is a Zebra SE4710 or CM60. The operating system is Android 12 with GMS. Wireless covers IEEE802.11 a/b/g/n/ac on 2.4G and 5G with a 5G PA, Bluetooth 5.0, Vo-LTE, and GNSS across GPS/AGPS, GLONASS, BeiDou, and Galileo. NFC works at 13.56 MHz over a 2-4 cm range. Every one of these names is published by the component vendor itself, so you can check each one without going through us.
How long will an MC95 fleet stay useful?
The main battery is 5000mAh, removable, and supports quick charge, so a depleted battery is swapped on the floor rather than sent back. Storage is 64GB with a slot that accepts a Micro SD (TF) card up to 256GB, which leaves headroom as application images grow. The second slot takes either a SIM or a TF card, so a change of data plan does not force a change of hardware.
How rugged is the MC95?
The body is sealed to IP68 per IEC sealing specifications and rated for multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range, plus 1000 falls from 0.5 m / 1.64 ft. at room temperature. ESD is rated at plus or minus 15 KV air discharge and plus or minus 8 KV conductive discharge. Operating temperature runs from minus 20 to 50 degrees Celsius. These figures are transcribed from the manufacturer configuration sheet.
How is the MC95 serviced after purchase?
The battery, adaptor, USB cable, and charging cradle are ordered as accessories, and because the battery is removable, a swap does not need a service visit. The platform is Android 12 with GMS, so the mobile device management tooling your team already runs applies here. Repair turnaround, warranty length, and spare part supply are confirmed in writing with each order rather than promised on this page.
