One Handheld, Three Ways to Capture Data
A 5.2'' 1920 x 1080 display, a 5000 mAh battery, and a body rated for 1.8 m / 5.9 ft. drops to concrete.
The C71 reads EPC C1 GEN2 tags up to 3m in its UHF configuration, depending on tags and environment. The standard C71 covers barcode and card work with an optional imager and 13.56 MHz NFC; the C71 UHF adds an Impinj E Series engine on a circular polarization antenna; the C71 Fingerprint carries a TCS1, TLK1NC02, or Optical Morpho CBM-E3 sensor. Scan engines come from Zebra and Honeywell, and the cover glass is Corning Gorilla Glass. All three configurations run Android 11 / 13 on one octa-core 2.3GHz platform, with GMS, FOTA, Soti MobiControl, and SafeUEM supported.
- Corning Gorilla GlassMulti-touch cover panel
- Zebra SE4710, SE47502D imager engine options
- Honeywell N6603, N4313Imager and linear options
- Impinj E SeriesUHF engine chips
- EPC C1 GEN2, ISO18000-6CUHF air-interface protocols
- ISO14443A/B, ISO15693NFC and HF card protocols
- ISO7816 T=0, T=1PSAM card protocol
- IEEE802.11 a/b/g/n/ac2.4G/5G dual-band
- Bluetooth 5.0Core specification version
- GPS, GLONASS, BeiDouInternal GNSS antenna
- Soti MobiControl, SafeUEMSupported MDM platforms
- ISO19794-5 compatibleRear camera face capture
Overview
The C71 is a rugged Android handheld for teams that scan stock, read cards, or verify identity through a full shift. A 5.2'' IPS LTPS 1920 x 1080 panel sits behind Corning Gorilla Glass that stays usable with gloves and wet hands, and an octa-core 2.3GHz processor with 3GB + 32GB, or 4GB + 64GB as an option, runs the applications your operation already deploys. The main battery is a 5000 mAh Li-ion pack, rated for over 350 hours of standby and over 12 hours of continuous use depending on user environment.
What sets the C71 apart from a phone in a rugged case is how much of it is settled before it ships. One body accepts a 1D linear scanner or a 2D imager, an Impinj E Series UHF engine, one of three fingerprint sensors, two PSAM slots, and either NFC or HF RFID at 13.56 MHz. A team that needs tag counting in the warehouse and identity checks at the counter can order both from one product family, on one software image, instead of qualifying two devices.
The scan engine choices are Zebra SE4710, SE4750SR, SE4750MR, SE4750DP, Honeywell N6603, N4313, and CM60, and the UHF engine is based on Impinj E Series chips with support for Impinj Gen2X. Android 11 / 13 arrives with GMS, and FOTA, Soti MobiControl, and SafeUEM are supported, so IT can enroll the fleet with the tools it already runs. Explore the full range of CedaGlo mobile computers.
Key Features
Platform and Memory
- Octa-core, 2.3GHz
- 3GB + 32GB or 4GB + 64GB
- Android 11 / 13 with GMS
- 5.2'' IPS LTPS 1920 x 1080
- Up to 256GB Micro SD (TF) card
Power and Environment
- 5000 mAh, over 12 hours of use
- IP65 / IP67 sealing
- 1.8 m / 5.9 ft. drops to concrete
- 1000 x 0.5 m / 1.64 ft. falls
- -20 °C to 50 °C operating
Data Capture Options
- Zebra and Honeywell engines
- Impinj E Series UHF, up to 3m
- NFC or HF RFID at 13.56 MHz
- Three fingerprint sensor options
- 2 slots for PSAM cards
Features & Functions at a Glance
Choose Your Configuration
| Feature | C71 | C71 UHF | C71 Fingerprint |
|---|---|---|---|
| Best for | Barcode picking, receiving, and card work | Counting tagged stock a few items at a time | Identity checks at the point of service |
| Shared hardware | Identical in all 3 configurations | ||
| Display | 5.2'' IPS LTPS 1920 x 1080 | ||
| Processor and memory | Octa-core, 2.3GHz; 3GB + 32GB, 4GB + 64GB (optional) | ||
| Main battery | Li-ion, rechargeable, 5000 mAh | ||
| Barcode scanning | Honeywell N4313 linear; Zebra SE4710 / SE4750SR / SE4750MR / SE4750DP, Honeywell N6603, CM60 imagers (optional) | ||
| NFC | 13.56 MHz, 2-4 cm range | ||
| HF RFID | 13.56 MHz, 3-8 cm range (optional; HF RFID alternative to NFC) | ||
| PSAM | 2 slots for PSAM cards, ISO7816 T=0, T=1 (optional) | ||
| Camera | 13 MP autofocus rear camera with flash; 5 MP front camera (optional) | ||
| Sealing and drop | IP65 / IP67 per IEC sealing specifications; multiple 1.8 m / 5.9 ft. drops to the concrete | ||
| Capture module | The rows below are the only differences | ||
| UHF engine | — | Based on Impinj E Series chips | — |
| UHF frequency | — | 865-868 MHz / 920-925 MHz / 902-928 MHz | — |
| UHF read range | — | Up to 3m (depend on tags and environment) | — |
| Fingerprint sensor | — | — | TCS1 Capacitive, TLK1NC02, or Optical Morpho CBM-E3 |
| Operating temperature | -20 °C to 50 °C | -20°C to 45°C | -20 °C to 50 °C |
| Platform | Common to all 3 configurations | ||
| Operating system | Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported | ||
| Development | CedaGlo Software Development Kit, Java, Eclipse / Android Studio | ||

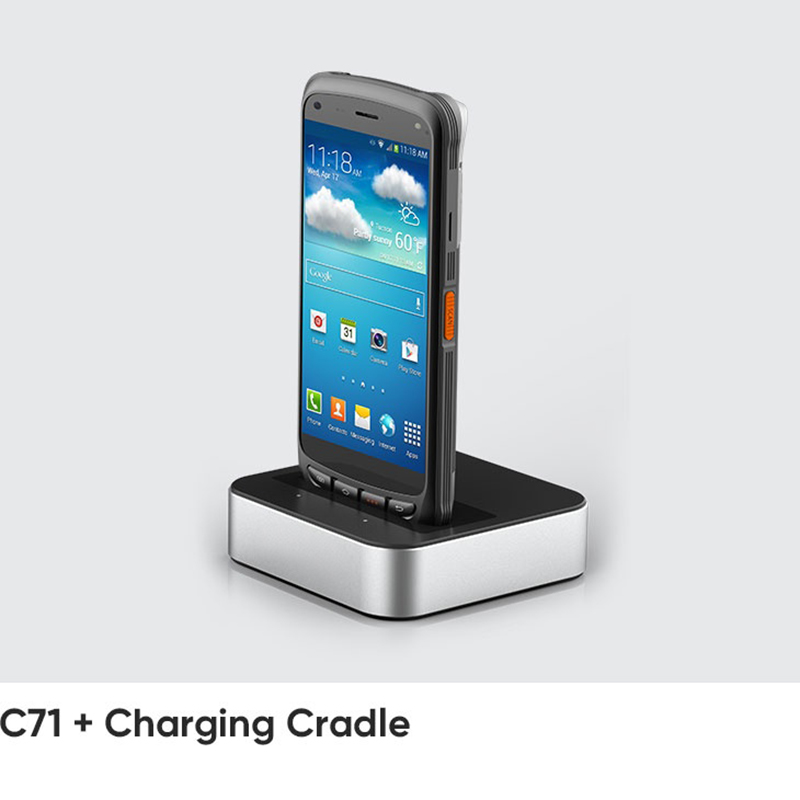

Accessory compatibility — the C71 configuration sheet does not list accessories, so cradle and spare-part compatibility is confirmed in writing with your order.
Every value in this table matches the full Specifications section below.
A Closer Look at the Hardware

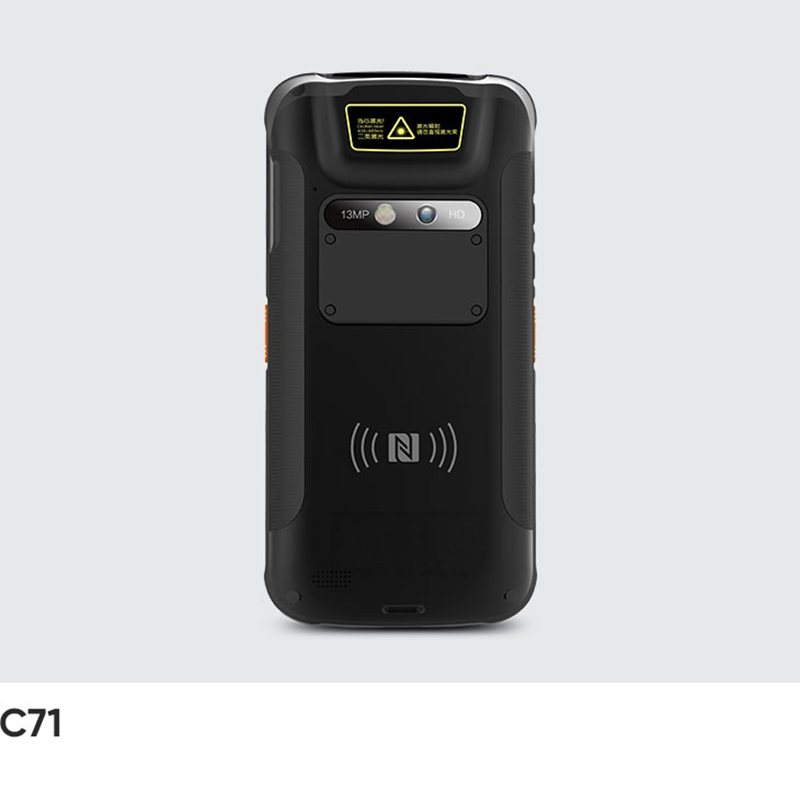

Camera, plate, and NFC areaThe 13 MP autofocus rear camera with flash sits above the module plate, and the NFC area is marked below it. The speaker and the USB 2.0 Type-C port are on the bottom edge.

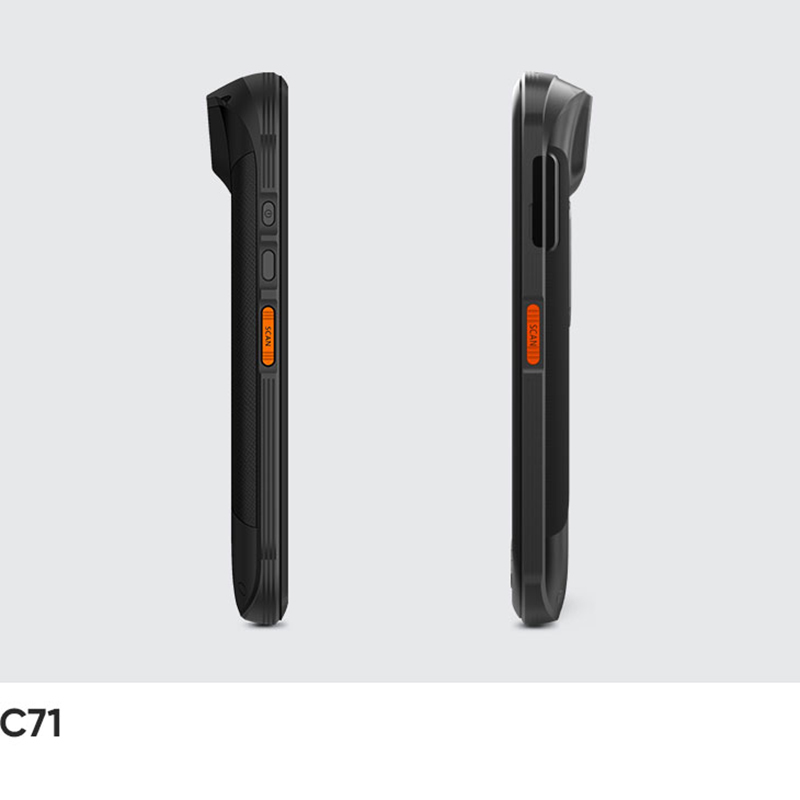

A scan key on each sideBoth sides carry a scan key, so left- and right-handed users trigger a read the same way. The power key and the multifunctional key sit above the scan key on one side.
One module at a timeThe plate on the back takes either the UHF antenna or a fingerprint sensor, not both. The window shown here is the TCS1 capacitive sensor, with a sensing area of 12.8 × 18.0 mm.
Specifications
Physical Characteristics
- Dimensions
- 164.2 x 78.8 x 17.0 mm / 6.46 x 3.1 x 0.67 in. (for standard version)
- Weight
- < 288 g / 10.15 oz. (for standard version)
- Display
- 5.2'' IPS LTPS 1920 x 1080
- Touch Panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Power
- Main battery: Li-ion, rechargeable, 5000 mAh
Standby: over 350 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable) - Notification
- Sound, LED indicator, vibrator
- Expansion Slot
- 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
- Interfaces
- USB 2.0 Type-C, OTG, Type-C headphones supported
- Audio
- 2 microphones, 1 for noise cancellation; 1 speaker; receiver
- Keypad
- 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
- Sensors
- Light sensor, proximity sensor, gravity sensor
Communication
- WLAN
- IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
- WWAN
- 2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA: B1/B2/B4/B5/B8
CDMA2000 EVDO: BC0
TD-SCDMA: A/F
4G: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
B28B/B38/B39/B40/B41 - WWAN (Others)
- Depending on the country's ISP
- Bluetooth
- Bluetooth 5.0
- GNSS
- GPS/AGPS, GLONASS, BeiDou; internal antenna
Developing Environment
- Operating System
- Android 11 / 13; GMS, FOTA, Soti MobiControl, SafeUEM supported.
- SDK
- CedaGlo Software Development Kit
- Language
- Java
- Tool
- Eclipse / Android Studio
Performance
- CPU
- Octa-core, 2.3GHz
- RAM+ROM
- 3GB + 32GB
4GB + 64GB (optional) - Expansion
- Supports up to 256GB Micro SD (TF) card
User Environment
- Operating Temp.
- 4 °F to 122 °F / -20 °C to 50 °C
- Storage Temp.
- -40 °F to 158 °F / -40 °C to 70 °C
- Humidity
- 5% RH - 95% RH non condensing
- Drop Specification
- Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
- Tumble Specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Sealing
- IP65 / IP67 per IEC sealing specifications
- ESD
- ±15 KV air discharge, ±6 KV conductive discharge
* Operating temperature of UHF version: -20°C to 45°C
Barcode Scanning
- 1D Linear Scanner
- Honeywell: N4313
- 2D Imager Scanner
- Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
- 1D Symbologies
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
* This function is optional

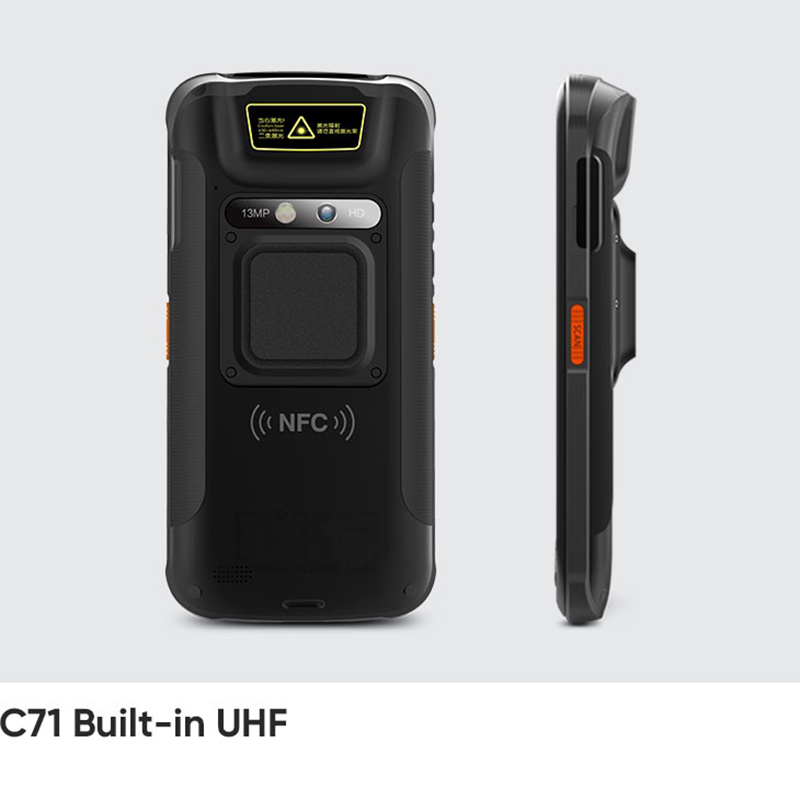

UHF RFID
- Engine
- Based on Impinj E Series chips
- Frequency
- 865-868 MHz / 920-925 MHz / 902-928 MHz
- Protocol
- EPC C1 GEN2 / ISO18000-6C
Supports Impinj Gen2X - Antenna
- Circular polarization
- Power
- 1W ( +5 dBm to +30 dBm adjustable)
- Max Read Range
- Up to 3m (depend on tags and environment)
* This function is optional

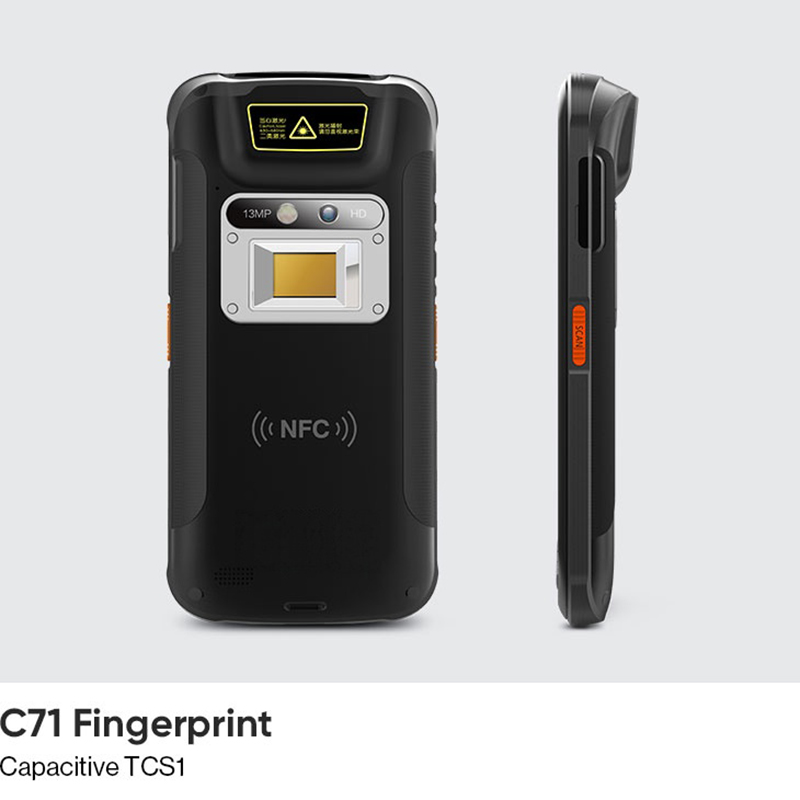

Fingerprint 1
- Sensor
- TCS1 Capacitive
- Sensing Area (mm)
- 12.8 × 18.0
- Resolution (dpi)
- 508 dpi, 8-bit greylevel
- Certifications
- FIPS 201, STQC
- Format Extraction
- ISO 19794, WSQ, ANSI 378, JPEG2000
- Fake Finger Detection
- Support by SDK
- Security
- AES, DES key encryption of the host communication channel
* This function is optional
Fingerprint 2
- Sensor
- TLK1NC02
- Sensing Area (mm)
- 14 X 22
- Resolution (dpi)
- 508dpi, 256 greylevel
- Certifications
- FIPS 201, FBI
- Format Extraction
- ISO19794, WSQ, ANSI 378, JPEG2000
- Fake Finger Detection
- Support by SDK
- Security
- AES, DES key encryption of the host communication channel
* This function is optional

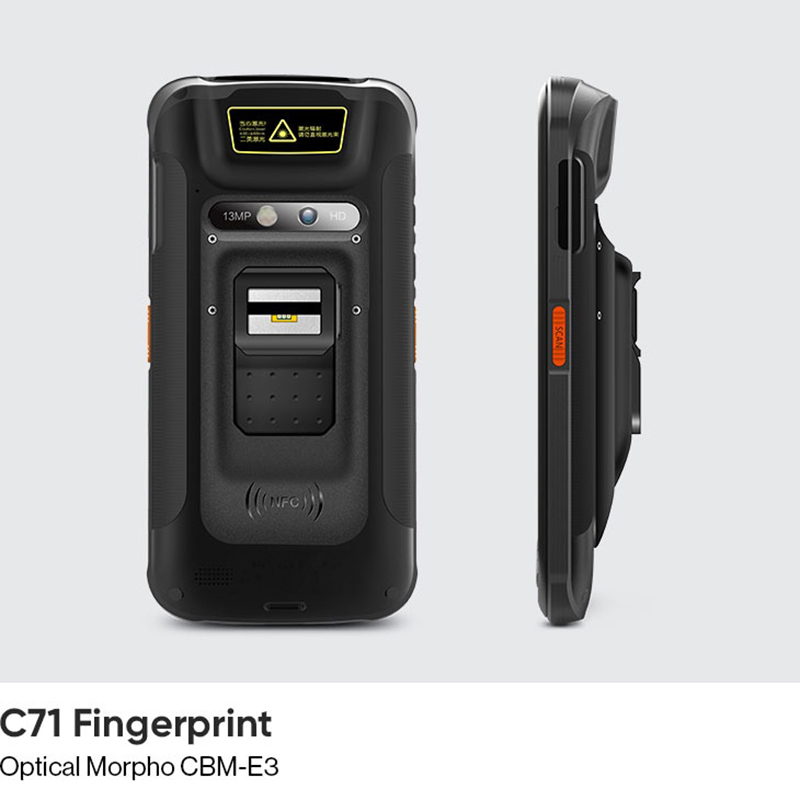

Fingerprint 3
- Sensor
- Optical Morpho CBM-E3
- Sensing Area (mm)
- 14 x 22
- Resolution (dpi)
- 500 dpi, 256 greylevel
- Certifications
- FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 compliant, STQC
- Format Extraction
- ISO 19794-2/4, WSQ, ANSI 378, etc
- Fake Finger Detection
- Latex, GeLatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
- Security
- FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
* This function is optional
Camera
- Front Camera
- 5 MP
*This function is optional - Rear Camera
- 13 MP autofocus rear camera with flash
Facial Recognition ISO19794-5 Compatible
NFC
- Frequency
- 13.56 MHz
- Protocol
- ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
- Chips
- M1 card (S50, S70), CPU card, NFC tags, etc.
- Range
- 2-4 cm
*NFC alternative to HF RFID.
PSAM
- Slots
- 2 slots for PSAM cards
- Protocol
- ISO7816 T=0, T=1
* This function is optional
HF RFID
- Frequency
- 13.56 MHz
- Protocol
- ISO14443A/B, ISO15693
- Chips
- M1 card (S50/S70), M0 (Ultralight), M3 (Desfire D40/D41/D81)
CPU_A card, CPU_B card
ICODE II, TI2048, LRI64K
Others for customization - Range
- 3-8 cm
* This function is optional; HF RFID alternative to NFC.
Every row above is transcribed from the C71 configuration sheet. Items not listed there are not offered on this page.
Why Buy the C71 From CedaGlo
Components You Can Verify
Every engine, chip, and sensor on this page is named: Zebra, Honeywell, Impinj, Corning, Morpho. Look each one up on the site of the company that makes it, and hold us to what the configuration sheet says.
Configured Before It Ships
You pick the scanning engine, the UHF or fingerprint module, and the memory tier at order time, and units arrive built that way. No field retrofits, and no half-populated devices sitting in a stockroom waiting for a part to turn up.
Test One Before You Commit
Ask for a single unit and run your applications on it, on your network, with the tags and cards your sites actually handle. Two weeks of that settles questions a page of numbers never will.
Serviceable for the Long Run
Spare-part supply, warranty terms, and RMA turnaround are confirmed in writing with your order, so procurement gets dates it can put in a contract. Android 11 / 13 and FOTA keep the software on the fleet current.
Frequently Asked Questions
How far will the C71 UHF read a tag?
Up to 3m, and that figure depends on tags and environment. The engine is based on Impinj E Series chips, works across 865-868 MHz, 920-925 MHz, and 902-928 MHz, and its output is adjustable from +5 dBm to +30 dBm, up to 1W, on a circular polarization antenna. It reads EPC C1 GEN2 / ISO18000-6C tags and supports Impinj Gen2X.
Which of the 3 configurations should I order?
Order the standard C71 when the work is barcode picking, receiving, and card reading, since it pairs an optional imager with 13.56 MHz NFC. Order the C71 UHF when your stock carries UHF tags and you count a few items at a time. Order the C71 Fingerprint when you verify people, and pick the TCS1 Capacitive, TLK1NC02, or Optical Morpho CBM-E3 sensor at the same time. All three run Android 11 / 13.
Which components are used inside the C71?
The linear scanner is a Honeywell N4313. The imager options are Zebra SE4710, SE4750SR, SE4750MR, SE4750DP, Honeywell N6603, and CM60. The UHF engine is based on Impinj E Series chips and supports Impinj Gen2X. The touch panel is Corning Gorilla Glass. The fingerprint sensors are TCS1 Capacitive, TLK1NC02, and Optical Morpho CBM-E3. Every one of those names can be checked with the company that makes the part.
How long will a C71 fleet stay in service?
The platform is Android 11 / 13 with GMS, and FOTA, Soti MobiControl, and SafeUEM are supported, so updates and policy pushes go out through tools your IT team already runs. The main battery is a 5000 mAh Li-ion pack rated for over 350 hours of standby and over 12 hours of continuous use, depending on user environment. Spare-part supply and warranty length are confirmed in writing with your order.
How rugged is the C71 body?
The configuration sheet rates it IP65 / IP67 per IEC sealing specifications, with multiple 1.8 m / 5.9 ft. drops to the concrete, at least 20 times, across the operating temperature range, plus 1000 x 0.5 m / 1.64 ft. falls at room temperature. Operating temperature runs 4 degrees Fahrenheit to 122 degrees Fahrenheit, or -20 degrees Celsius to 50 degrees Celsius, and the UHF version is rated to 45 degrees Celsius. Ask us for the test report reference before you write these figures into a tender.
How is the C71 supported after it ships?
Send the serial number and a description of the fault, and we route the unit through RMA. Turnaround targets, warranty terms, and the number of years spare parts stay available are confirmed in writing with your order rather than promised on this page. On the software side, the CedaGlo Software Development Kit covers Java in Eclipse or Android Studio.
