A 5.7-Inch Rugged Handheld Your Team Can Carry All Shift
A 1440 x 720 display, a 5000 mAh battery, and a body rated for multiple 1.5 m / 4.92 ft. drops to the concrete.
The C90 runs an octa-core 2.0 GHz processor behind a 5.7-inch IPS LTPS panel at 1440 x 720, so a scanning task and the web app your team already runs sit together on one device. Three memory builds are offered: 3GB + 32GB, 3GB + 64GB, and 4GB + 64GB. Every other row of the configuration sheet is identical across the three, including the 5000 mAh main battery, IP67 sealing, and the optional 2D imager built around Honeywell N6603, N6703, or CM60 engines. The touch panel is Corning Gorilla Glass and stays usable with gloves and wet hands. Android 10/14 arrives with GMS, Zero-Touch, and SOTI MobiControl support.
- N6603, N6703, CM602D imager engine options
- Corning Gorilla GlassTouch panel cover glass
- Android 10/14GMS included
- SOTI MobiControlSupported MDM platform
- Android Zero-TouchBulk enrollment supported
- IEEE802.11 a/b/g/n/ac2.4G and 5G dual-band
- 802.11r and OKCFast roaming methods
- Bluetooth 5.0V4.1+HS and BT5.0
- ISO14443A/B, ISO15693NFC read protocols
- GPS, GLONASS, BeiDouGalileo, internal antenna
- Android EnterpriseRecommended device program
- Java, Android StudioEclipse also supported
Overview
The C90 is a rugged handheld computer built around a 5.7-inch 18:9 IPS LTPS display and an octa-core 2.0 GHz processor. It measures 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in. and weighs 230g / 8.11 oz. with the battery in place, which keeps it a one-handed device across a full shift.
What separates the three builds is memory alone: 3GB + 32GB, 3GB + 64GB, and 4GB + 64GB. Radios, sealing, imager options, keypad, and cameras do not change between them, so one software image, one accessory list, and one set of acceptance tests cover the whole fleet. Local storage stretches further with a Micro SD (TF) card of up to 256GB.
Barcode scanning is optional and uses Honeywell N6603, N6703, or CM60 imagers. The touch panel is Corning Gorilla Glass, the NFC front end reads ISO14443A/B and ISO15693 at 13.56 MHz, and positioning covers GPS with AGPS, GLONASS, BeiDou, and Galileo on an internal antenna. Android 10/14 arrives with GMS, FOTA, Zero-Touch, Android Enterprise Recommended, and SOTI MobiControl support. Explore the full range of rugged mobile computers.
Key Features
Display and Build
- 5.7-inch IPS LTPS, 1440 x 720
- Corning Gorilla Glass touch panel
- Gloves and wet hands supported
- 230g / 8.11 oz. with battery
- 158.5 x 76.0 x 13.1 mm body
Power and Ruggedness
- 5000 mAh, over 12 hours of use
- IP67 per IEC specifications
- Multiple 1.5 m / 4.92 ft. drops
- 1000 x 0.5 m / 1.64 ft. falls
- 5% RH to 95% RH non condensing
Capture and Connectivity
- 2D imager: N6603, N6703 or CM60
- NFC at 13.56 MHz, 2-4 cm range
- Octa-core 2.0 GHz, up to 4GB RAM
- 1 Nano SIM + 1 SIM or TF slot
- Dual-band Wi-Fi, 802.11r roaming
Features & Functions at a Glance
Choose Your Configuration
| Feature | C90 3GB + 32GB | C90 3GB + 64GB | C90 4GB + 64GB |
|---|---|---|---|
| Best for | One scanning application on a fixed route | Scanning plus a browser-based client | Several applications kept open at once |
| Shared hardware | Identical in all 3 configurations | ||
| Form factor | Handheld, 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in., 230g / 8.11 oz. (device with battery) | ||
| Display | 5.7-inch (18:9), IPS LTPS 1440 x 720, Corning Gorilla Glass, gloves and wet hands supported | ||
| CPU | Octa-core 2.0 GHz | ||
| Power | Main battery: built-in 5000 mAh; charging time: 2.5 hours | ||
| Barcode scanning | 2D imager scanner, Honeywell: N6603 / N6703; CM60. This function is optional | ||
| Wireless | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band; Bluetooth V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0; GPS/AGPS, GLONASS, BeiDou, Galileo | ||
| NFC | 13.56 MHz, ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc., 2-4 cm | ||
| Sealing and drop | IP67 per IEC sealing specifications; multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range | ||
| Expansion | Supports up to 256GB Micro SD (TF) card | ||
| The only difference | The row below is the one value that changes between the 3 configurations | ||
| RAM + ROM | 3GB + 32GB | 3GB + 64GB | 4GB + 64GB |
| Platform | Common to all 3 configurations | ||
| Operating system | Android 10/14, GMS, FOTA, SOTI MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM supported | ||
| Development | CedaGlo Software Development Kit, Java, Eclipse / Android Studio | ||
Accessory compatibility — the Charging Cradle and the Lanyard fit all 3 configurations, because the three share one body and one port layout. The configuration sheet lists no accessory that is limited to a single build.
Every value in this table matches the full Specifications section below.
A Closer Look at the Hardware
Rear cameras above a textured coverThe 16MP and 2MP rear cameras sit beside the flash in one plate at the top of the back cover, clear of the palm. The cover itself is textured over its full height, with a recessed slot near the base.

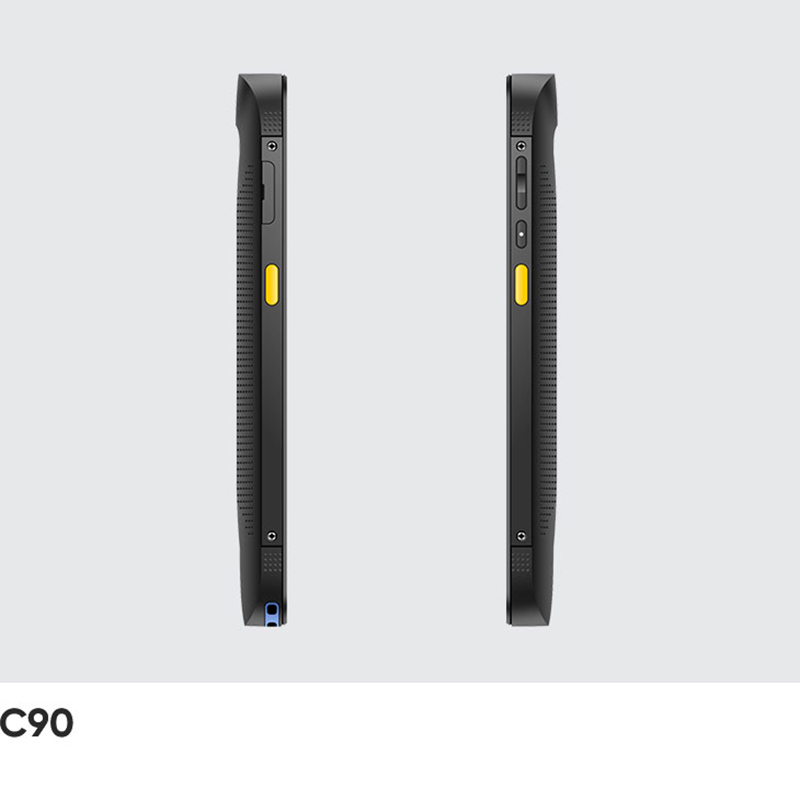

A scan key on each edgeThe keypad puts one of the two scan keys on the left edge and the other on the right, so left- and right-handed users reach the same control without changing grip. Volume and power sit higher on the right edge, away from the scan key.

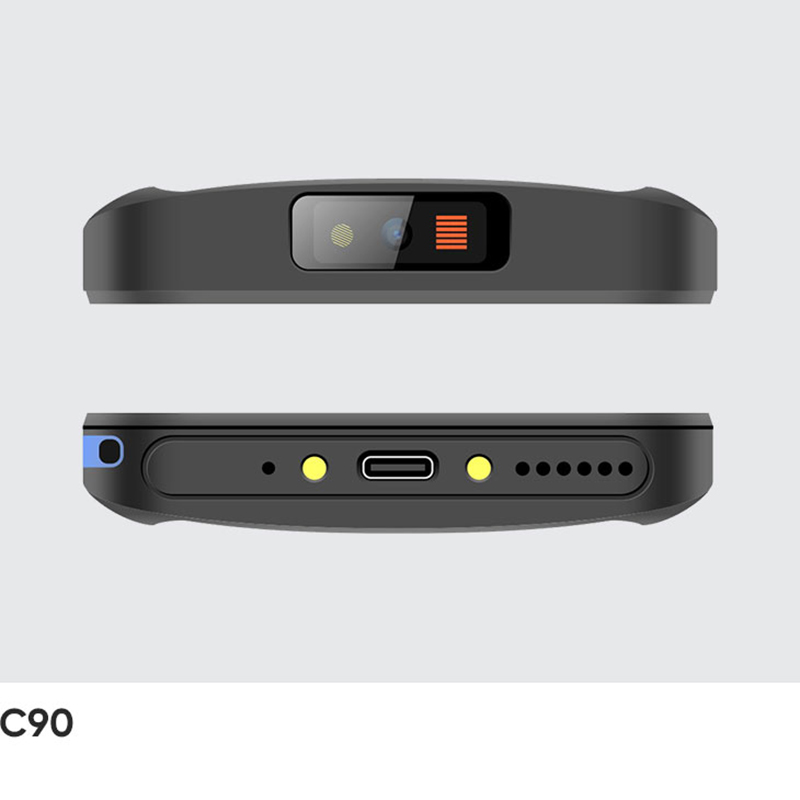

One port, centered on the bottom edgeThe USB Type-C port is centered on the bottom edge with the speaker grille to one side and a microphone opening to the other. The imager window is set into the top edge, above the rear cameras.
Specifications
Physical Characteristics
- Dimensions
- 158.5 x 76.0 x 13.1 mm / 6.24 x 2.99 x 0.52 in.
- Weight
- 230g / 8.11 oz. (device with battery)
- Display
- 5.7-inch (18:9), IPS LTPS 1440 x 720
- Touch Panel
- Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
- Power
- Main battery: built-in 5000 mAh
Standby: up to 490 hours (only main battery; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable) - Notification
- Sound, LED indicator, vibrator
- Interfaces
- USB Type-C, USB 2.0, OTG
- Card slot
- 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
- Audio
- 2 microphones, 1 for noise cancellation; 1 speaker; receiver
- Keypad
- Power, 2 scan keys, volume +/-
- Sensors
- Light sensor, proximity sensor, gravity sensor
Communication
- WLAN
- Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-band, IPV4, IPV6; Support 5G PA
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161,165), depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK, EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, etc. - WWAN (Europe, Asia)
- 2G: GSM850/GSM900/DCS1800/PCS1900
3G: CDMA EVDO: BC0
WCDMA: B1/B2/B4/B5/B8
TD-SCDMA: A/F(B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B20/B34/B38/B39/B40/B41 - WWAN (America)
- 2G: GSM850/GSM900/DCS1800/PCS1900
3G: CDMA EVDO: BC0/BC1
WCDMA: B2/B4/B5/B8
4G: B2/B4/B5/B7/B8/B12/B17/B28A/B28B/B38 - Bluetooth
- V2.1+EDR, 3.0+HS and V4.1+HS, BT5.0
- GNSS
- GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Developing Environment
- Operating System
- Android 10/14, GMS, FOTA, SOTI MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM supported
- SDK
- CedaGlo Software Development Kit
- Language
- Java
- Tool
- Eclipse / Android Studio
Performance
- CPU
- Octa-core 2.0 GHz
- RAM+ROM
- 3GB + 32GB / 3GB + 64GB / 4GB + 64GB
- Expansion
- Supports up to 256GB Micro SD (TF) card
User Environment
- Operating Temp.
- -20 ℃~+50 ℃
- Storage Temp.
- -40 ℃~+70 ℃
- Humidity
- 5% RH - 95% RH non condensing
- Drop Specification
- Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range
- Tumble Specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Sealing
- IP67 per IEC sealing specifications
- ESD
- ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
- 2D Imager Scanner
- Honeywell: N6603 / N6703; CM60
- 1D Symbologies
- UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
* This function is optional
Camera
- Front Camera
- 5 MP
- Rear Camera
- 16MP +2MP Microphotography, Autofocus with flash
NFC
- Frequency
- 13.56 MHz
- Protocol
- ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
- Chips
- M1 card (S50, S70), CPU card, NFC tags, etc.
- Range
- 2-4 cm
Optional Accessories
- Accessories
- Charging Cradle; Lanyard etc.
Every row above is transcribed from the C90 configuration sheet. Items not listed there are not offered on this page.
Why Buy the C90 From CedaGlo
Named parts, not adjectives
Every part we quote is named on the configuration sheet: Honeywell N6603, N6703, or CM60 imagers, a Corning Gorilla Glass panel, an octa-core 2.0 GHz processor. Look each one up with its own maker before you sign.
Built to your order sheet
Memory, radio band set, and the optional imager are chosen at order time, so the units that land on your dock match the build your team signed off on. Band sets for Europe, Asia, and America are listed above.
Try it before you commit
Ask for a sample and run it against the labels you actually print, the network you actually operate, and your back-end client for a full week. Sample availability and shipping terms are agreed up front, before anything ships.
Supported for the long run
Spare part supply, repair turnaround, and warranty length are written into your order. Units on Android 10/14 take FOTA and 90-day security updates, so an estate deployed this year stays on one managed baseline instead of drifting apart.
Frequently Asked Questions
How far does one charge actually get me?
The main battery is built in at 5000 mAh. Standby reaches up to 490 hours on the main battery alone, up to 470 hours on Wi-Fi, and up to 440 hours on 4G. Continuous use is over 12 hours, and the configuration sheet qualifies that figure as depending on the user environment. A dead battery recharges in 2.5 hours using the standard adaptor and USB cable.
Which of the three configurations should I order?
Memory is the only value that changes. 3GB + 32GB suits a device that stays in one application all day, 3GB + 64GB leaves room for a second one beside it, and 4GB + 64GB is the build to pick when several applications stay open at once. All three take a Micro SD (TF) card of up to 256GB, so local storage is not the deciding factor.
Which components are inside the C90?
Barcode scanning is optional and uses Honeywell N6603, N6703, or CM60 imagers. The touch panel is Corning Gorilla Glass and the processor is octa-core at 2.0 GHz. The NFC front end reads ISO14443A/B, ISO15693, NFC-IP1, and NFC-IP2 at 13.56 MHz over a 2-4 cm range. Positioning uses GPS with AGPS, GLONASS, BeiDou, and Galileo on an internal antenna.
How long can I keep buying and updating this model?
The platform is Android 10/14 with GMS, FOTA, Zero-Touch, and 90-day security updates, and both SOTI MobiControl and SafeUEM are supported for fleet management. Production lifetime, spare part availability, and the last date for firmware support are confirmed against your order, because those are commercial terms rather than figures from the configuration sheet.
How rugged is it, and under what test conditions?
The body is sealed to IP67 per IEC sealing specifications and rated for multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range, plus 1000 falls of 0.5 m / 1.64 ft. at room temperature. Operating temperature runs from minus 20 to plus 50 degrees Celsius and humidity from 5% RH to 95% RH non condensing. These are the manufacturer design figures transcribed from the configuration sheet.
How is a deployed fleet serviced?
Firmware moves over the air through FOTA, and policy is pushed with SOTI MobiControl or another SafeUEM-compatible tool, so a device does not have to come back to a bench for a software change. A Charging Cradle and a Lanyard are offered with the device. Repair turnaround, warranty length, and spare part terms are set out with your order paperwork.
