One 10.95-inch Tablet, Two Ways to Capture Data
A 1920x1200 IPS panel, a 10000mAh removable battery, and a body rated for 1.2 m / 3.94 ft. drops to concrete.
The P100 runs an octa-core platform at 2.4GHz, or at 2.6GHz when you order the faster option, behind a 10.95-inch panel large enough to keep a pick list and a form on screen at the same time. Two configurations share that platform: the standard P100 stays 13.5mm thick and reads NFC tags at 2-4cm, while the P100 Built-in UHF carries the reader inside a 23.0mm body and reaches up to 3m with an Impinj M750 tag. Barcode work is handled by a Zebra SE4100, SE55, or CM60 engine, and the UHF side is built on an Impinj E-Series chip with Impinj Gen2X supported. Both configurations run Android 14 and the same CedaGlo Software Development Kit, so one application covers your whole fleet.
- Android 14Operating system
- Zebra scan enginesSE4100, SE55, CM60
- Impinj E-SeriesUHF reader chip
- Impinj Gen2XSupported by the module
- EPC Class 1 Gen 2ISO18000-63 protocol
- 802.11ax Wi-Fi2.4G / 5G, 2x2 MIMO
- Bluetooth V5.2Headset supported
- 5G SA bandsEurope, Asia, America
- GNSS L1 + L5GPS, BeiDou, GLONASS
- NFC ISO14443A/BISO15693, NFC-IP1/IP2
- USB 3.0 Type-COTG supported
- ISO7816 PSAM1 PSAM card slot
Overview
The P100 is a 10.95-inch rugged tablet for teams that fill in forms and capture data on the same screen, in a vehicle cab, at a dock door, or on a shop floor. It runs Android 14 on an octa-core platform, ordered at 2.4GHz or at 2.6GHz, with 4GB+64GB or 8GB+256GB of memory and storage, and it carries a 10000mAh removable main battery with a battery meter so a unit can stay in service while a pack goes back on charge.
What separates the two configurations is how they read tags. The standard P100 keeps a 13.5mm body and picks up NFC cards at 2-4cm, which suits access control, service records, and card-based checks. The P100 Built-in UHF puts the reader inside a 23.0mm body, reads to 3m with an Impinj M750 tag, and covers a pallet face or a shelf section in one sweep instead of one label at a time. Both take the same Zebra SE4100, SE55, or CM60 barcode engine, so a site can mix the two and still train one way of working.
The parts are named so you can check them: an Impinj E-Series chip with Impinj Gen2X on the UHF side, Zebra engines on the barcode side, EPC global Class 1 Gen 2 / ISO18000-63 as the air interface protocol, 802.11ax with 2x2 MIMO antennas, and Bluetooth V5.2. Android 14 and the CedaGlo Software Development Kit are common to both, in Java, with Eclipse / Android Studio as the build tools. Explore the full range of rugged tablets.
Key Features
Platform and Connectivity
- Octa-core 2.4GHz, 2.6GHz optional
- 4GB+64GB or 8GB+256GB
- 802.11ax, 2x2 MIMO antennas
- 5G SA, region-specific bands
- Bluetooth V5.2, Vo-LTE HD calls
Power and Working Conditions
- 10000mAh removable, fast charge
- IP67 sealing per IEC
- 1.2 m / 3.94 ft. drops to concrete
- -20 °C to 50 °C in service
- ESD ±15KV air, ±8KV conductive
Data Capture and Display
- Zebra SE4100, SE55, CM60 engines
- 3m UHF read range, M750 tag
- Impinj Gen2X supported
- NFC at 2-4cm on the P100
- 10.95-inch 1920x1200 IPS panel
Features & Functions at a Glance
Choose Your Configuration
| Feature | P100 | P100 Built-in UHF |
|---|---|---|
| Best for | Form-driven shifts where the operator types more than scans, and checks cards at the door | Counting shifts where the operator sweeps a shelf face or a pallet instead of finding each label |
| Dimensions | 263.5 x 175.0 x 13.5mm / 10.37 x 6.89 x 0.53in. | 263.5×175.0×23.0mm / 10.37×6.89×0.91in. |
| Weight | 802g / 28.29oz. | 883g / 31.14oz. (with battery) |
| Shared hardware | Identical in both configurations | |
| Display | 10.95", 1920×1200, IPS | |
| CPU | Octa-core 2.4GHz; optional octa-core 2.6GHz | |
| RAM+ROM | 4GB+64GB / 8GB+256GB (Optional) | |
| Main battery | 10000mAh removable main battery with battery meter; supports fast charging | |
| WLAN | 802.11 a/b/g/n/ac/ax, 2.4G / 5G dual-band, 2×2 MIMO antennas | |
| WWAN | 5G SA, 4G, 3G and 2G bands; see Specifications for the Europe, Asia and America band lists | |
| Scan engine | Zebra: SE4100, SE55; CM60 | |
| UHF engine | Based on Impinj E-Series chip; Impinj Gen2X supported | |
| UHF read range | 3m (with Impinj M750 tag) * | |
| PSAM | 1 PSAM card slot, ISO7816 (Optional) | |
| Differences | The rows below are the only differences | |
| Cover glass | — | Corning Glass, multi-touch panel, gloves and wet hands supported |
| Notification | Sound, LED indicator | Sound, LED indicator, vibration |
| Volume keys | 2 volume keys (+/-) | 1 volume key (+/-) |
| NFC | 13.56MHz, 2-4cm range | — |
| Platform | Common to both configurations | |
| Operating system | Android 14 | |
| SDK | CedaGlo Software Development Kit, in Java, built with Eclipse / Android Studio | |
| Expansion | Supports up to 512GB Micro SD card | |
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Accessory compatibility — A power adapter and a USB data cable are supplied as standard. The configuration sheet lists the same optional accessories for both configurations: wrist strap, shoulder strap, protective case, and charging dock. No accessory is exclusive to one configuration; see the Accessory Guide for details.
Every value in this table matches the full Specifications section below.
A Closer Look at the Hardware
The battery cover is the whole backThe cover lifts off over the 10000mAh removable main battery, and a slider on the right edge locks it down. The NFC area is marked at the upper left, beside the rear camera.

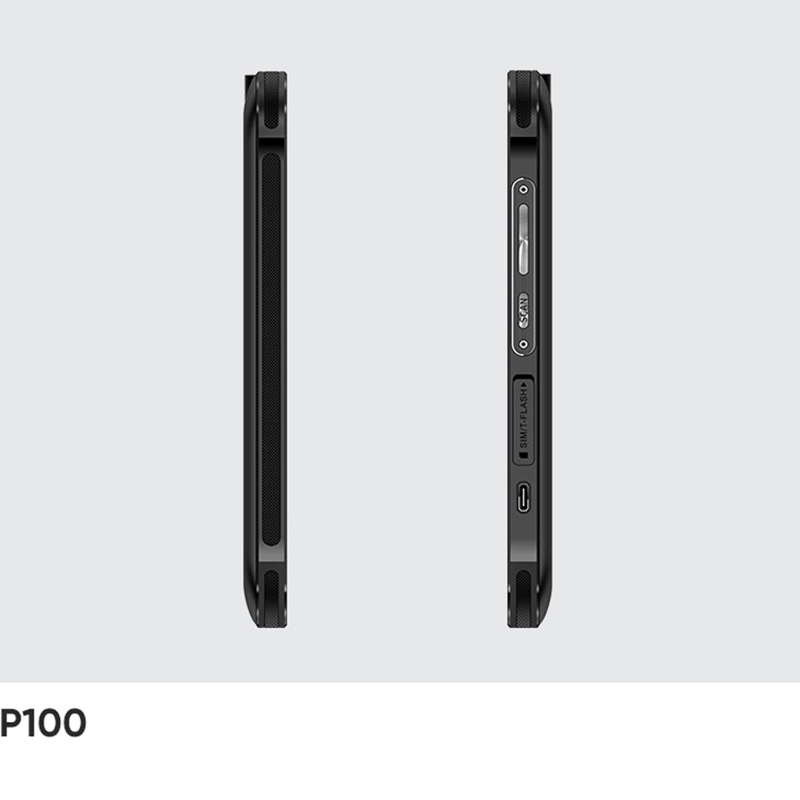

Keys and slots on one edgeThe volume keys and the scan key run down the right edge, above a sealed door for the Nano SIM and TF card slots and the USB 3.0 Type-C port. The opposite edge carries a speaker grille.

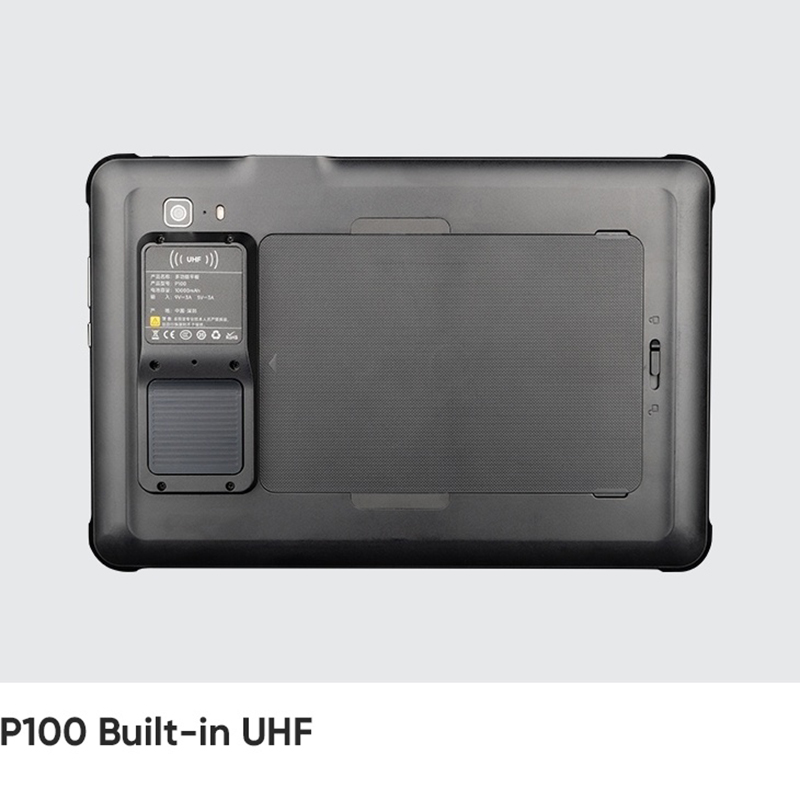

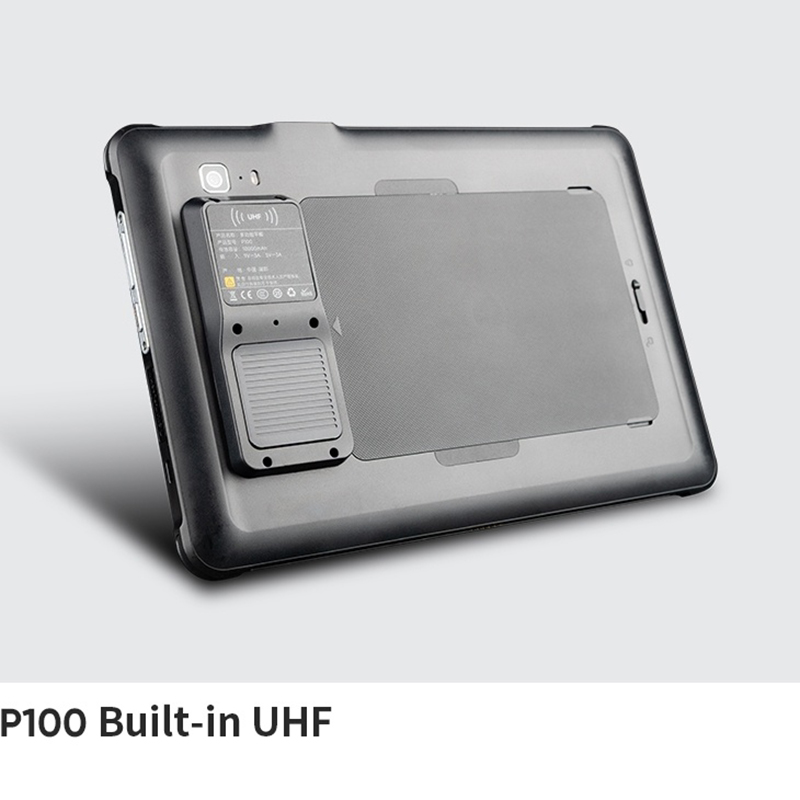

Where the extra 9.5mm goesOn the Built-in UHF configuration the reader module sits in a raised housing at the upper left of the back panel, under the camera. That housing is why this body measures 23.0mm rather than 13.5mm.
Specifications
Physical Characteristics
- Dimensions
- P100: 263.5 x 175.0 x 13.5mm / 10.37 x 6.89 x 0.53in.
P100 Built-in UHF: 263.5×175.0×23.0mm / 10.37×6.89×0.91in. - Weight
- P100: 802g / 28.29oz.
P100 Built-in UHF: 883g / 31.14oz. (with battery) - Display
- 10.95", 1920×1200, IPS
- Touch Panel
- P100 Built-in UHF: Corning Glass, multi-touch panel, gloves and wet hands supported
- Power
- 10000mAh removable main battery with battery meter; supports fast charging
- Notification
- P100: Sound, LED indicator
P100 Built-in UHF: Sound, LED indicator, vibration - Expansion Slot
- 1 slot for Nano SIM card, 1 slot for Nano SIM / TF card; 1 PSAM card (Optional); eSIM compatible
- Interfaces
- USB 3.0 Type-C, OTG, Support USB Type-C Digital Earphone
- Audio
- 2 microphones, 2 speakers
- Keypad
- P100: 1 scan key, 1 power key, 2 volume keys (+/-), 2 virtual keys
P100 Built-in UHF: 1 scan key, 1 power key, 1 volume key (+/-), 2 virtual keys - Sensors
- Gravity sensor, light sensor, proximity sensor, gyroscope, geomagnetic sensor
Communication
- WLAN
- Support 802.11 a / b / g / n / ac / ax, 2.4G / 5G dual-band 2*2 MIMO antennas
- WWAN (Europe, Asia)
- 2G: GSM B2 / B3 / B5 / B8 CDMA 1XEVDO BC0, BC1
3G: WCDMA B1 / B2 / B5 / B8
4G: TDD LTE B34 / B38 / B39 / B40 / B41 (2496-2690) / B42 / B43
FDD LTE B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28full / B66
5G: SA N1 / N3 / N5 / N7 / N8 / N20 / N28 / N38 / N41 (PC2) / N66 / N77 / N78 / N79 - WWAN (America)
- 2G: GSM B2 / B3 / B5 / B8 CDMA 1XEVDO BC0, BC1
3G: WCDMA B1 / B2 / B4 / B5
4G: TDD LTE B38 / B41 (2496-2690)
FDD LTE: B1 / B2 / B4 / B5 / B7 / B12 / B13 / B17 / B25 / B26 / B66 / B71
5G: SA N2 / N5 / N7 / N12 / N13 / N25 / N26 / N29 / N38 / N41 / N48 / N66 / N70 / N71 / N77 / N78 - Bluetooth
- Bluetooth V5.2, support Bluetooth headset
- Vo-LTE
- Support Vo-LTE HD video voice call
- GNSS
- GPS, BeiDou, GLONASS, Galileo; AGPS support; Dual-frequency positioning (L1+L5)
Developing Environment
- Operating System
- Android 14
- SDK
- CedaGlo Software Development Kit
- Language
- Java
- Tool
- Eclipse / Android Studio
Performance
- CPU
- Octa-core 2.4GHz; optional octa-core 2.6GHz
- RAM+ROM
- 4GB+64GB / 8GB+256GB (Optional)
- Expansion
- Supports up to 512GB Micro SD card
User Environment
- Operating Temp.
- -20 °C to 50 °C / -4 °F to 122 °F
- Storage Temp.
- -40 °C to 70 °C / -40 °F to 158 °F
- Humidity
- 5% RH - 95% RH (non condensing)
- Drop Specification
- Multiple 1.2 m/3.94 ft. drops to concrete across the operating temperature range
- Sealing
- IP67 per IEC sealing specifications; IP68/IP69K available upon request
- ESD
- ±15KV air discharge, ±8KV conductive discharge
* Drop and sealing figures are the design specifications quoted in the configuration sheet. Test report numbers are available on request.
Barcode Scanning
- Scan engine
- Zebra: SE4100, SE55; CM60
- 1D Symbologies
- UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
UHF RFID
- Engine
- Based on Impinj E-Series chip
- Frequency
- 865-868 MHz / 920-925 MHz / 902-928 MHz ( custom-design for frequency band )
- Impinj Gen2X
- Supported
- Protocol
- EPC global Class 1 Gen 2/ISO18000-63 RFID
- Antenna
- Circularly polarized antenna
- Power
- 0.5W
- Read Range
- 3m (with Impinj M750 tag)
* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Camera
- Front Camera
- 5 MP
- Rear Camera
- 13MP Autofocus with flash; optional 16MP
NFC
- Frequency
- 13.56MHz
- Protocol
- ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
- Chips
- M1 card (S50, S70), CPU card, NFC tags, etc.
- Range
- 2-4cm
* This section is listed for the P100 configuration.
PSAM
- Slots
- 1 PSAM card slot
- Protocol
- ISO7816
* This function is optional
Accessories
- Standard
- Power adapter, USB data cable
- Optional
- Wrist strap, shoulder strap, protective case, charging dock, etc.
* See details in Accessory Guide
Every row above is transcribed from the P100 configuration sheet. Items not listed there are not offered on this page.
Why Buy the P100 From CedaGlo
Components you can verify
Every part named on this page can be looked up at its own maker: Zebra SE4100, SE55 and CM60 engines, an Impinj E-Series chip, Corning Glass on the Built-in UHF body. None of it rests on our word alone.
Configured before it ships
You choose the body, the memory, the scan engine and the frequency band when you place the order, and the units arrive built that way. Nobody has to open cases on arrival or fit modules in your stockroom.
Borrow a unit before you buy
Ask for a demo unit and run your own labels, your own tags and your own application on it for a week. Read distances shift with the tag and the surroundings, so a measurement on your site beats any published figure.
Serviceable for the long run
The main battery lifts out, so a worn pack is a part swap and not a tablet out of service, and straps, cases and charging docks are ordered separately. Spare part terms are agreed in the purchase contract.
Frequently Asked Questions
How far will the P100 Built-in UHF read a tag?
Up to 3m with an Impinj M750 tag. That figure is measured in the open outdoors in a low interference environment, and it moves with the tag you use and with what surrounds it, so treat it as a ceiling rather than a guaranteed working distance. The module is based on an Impinj E-Series chip, runs at 0.5W through a circularly polarized antenna, and supports Impinj Gen2X.
Which of the two configurations should I order?
Take the standard P100 if the work is form-driven and card reading happens at 2-4cm, which is where NFC operates. Take the P100 Built-in UHF if operators count or search for tagged items, since it reaches 3m under the conditions described above. The Built-in UHF body measures 23.0mm rather than 13.5mm, weighs 883g rather than 802g, and adds Corning Glass with glove and wet hand input.
Which components are used inside the P100?
Barcode scanning runs on a Zebra SE4100, SE55 or CM60 engine, chosen at order time. The UHF side is based on an Impinj E-Series chip and follows EPC global Class 1 Gen 2 / ISO18000-63. Wireless is 802.11 a/b/g/n/ac/ax with 2x2 MIMO antennas plus Bluetooth V5.2, and positioning uses GPS, BeiDou, GLONASS and Galileo with L1+L5 dual-frequency support.
How long will one software build stay usable?
Both configurations ship on Android 14 with the CedaGlo Software Development Kit, written in Java and built with Eclipse or Android Studio, so a single application covers a mixed fleet of standard and Built-in UHF units. Update terms, support duration and spare part availability are confirmed in writing at quotation rather than promised on this page.
How rugged is the P100 in daily use?
The configuration sheet quotes IP67 per IEC sealing specifications, with IP68 and IP69K available upon request, and multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range. Operating temperature runs from minus 20 degrees Celsius to 50 degrees Celsius. ESD is quoted as plus or minus 15KV air discharge and plus or minus 8KV conductive discharge. These are the design specifications from the sheet; test report numbers are available on request.
What does servicing look like after delivery?
The 10000mAh main battery is removable, so a failed pack is a part swap and not a returned tablet, and the wrist strap, shoulder strap, protective case and charging dock are each ordered on their own. Warranty length, spare part supply and return handling are set out in writing with your order.
