Keypad-Driven Data Capture in a 256g IP67 Handheld
A 4-inch 480 x 800 touch panel, a 5000mAh removable battery, and a body rated for multiple 1.5 m / 4.9 ft. drops to the concrete.

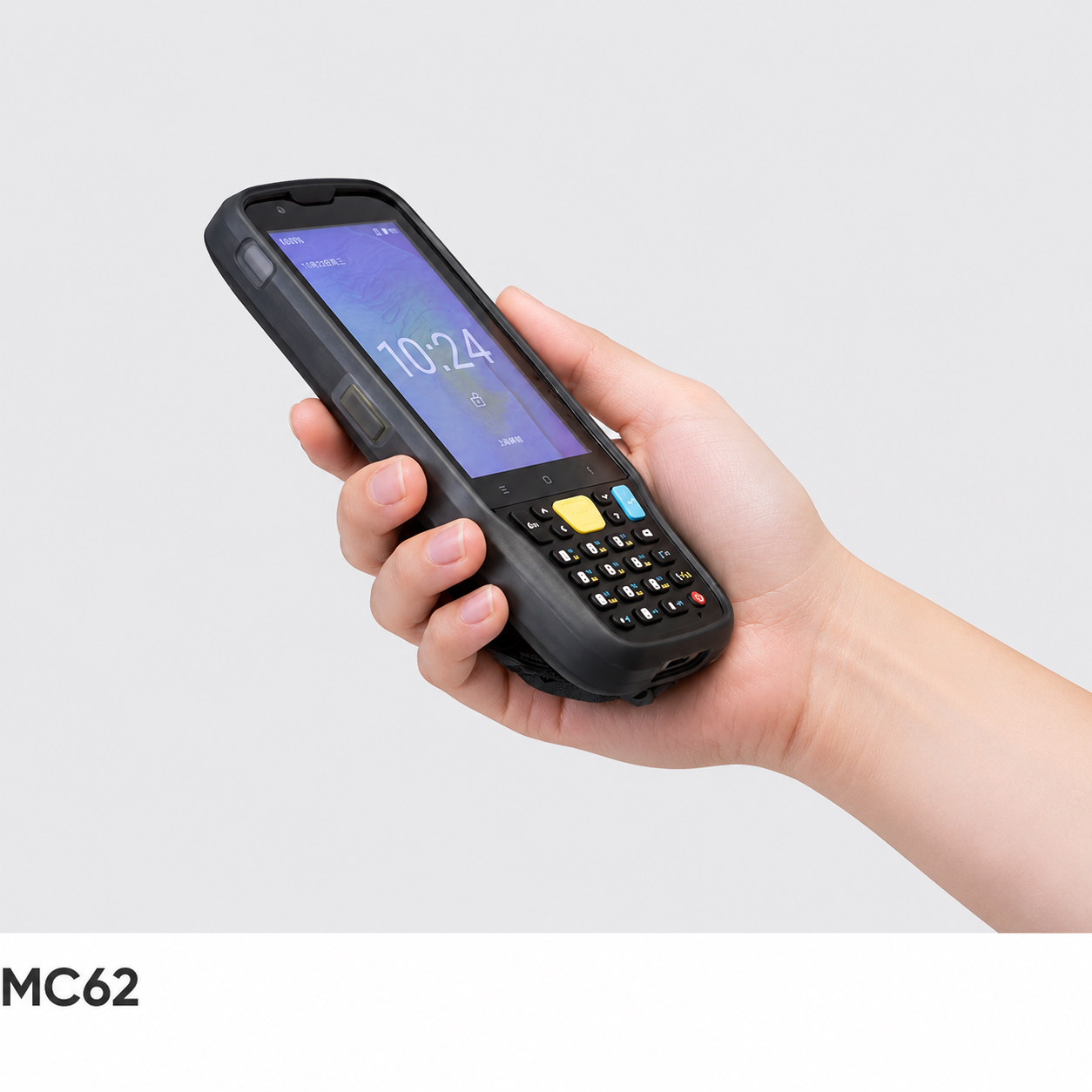

The MC62 carries a main keypad, 2 scan keys and multi-function keys below a 4-inch touch panel, so an operator keys in a quantity and confirms it without changing grip. Two configurations run on one chassis: order the optional 2D scan engine for barcode-driven work, or leave it off when contactless card reads and photo records cover the job. The engine itself is a Zebra SE4710 or a Zebra CM60, and both read the 1D and 2D symbology lists below. Underneath sits an octa-core 2.0GHz processor with 4GB + 64GB and a second card slot that takes a Micro SD (TF) card up to 256GB. Android 13 with GMS runs on the device, and the CedaGlo Software Development Kit supports Java under Eclipse or Android Studio.
- Android 13Shipped with GMS
- Octa-core, 2.0GHz4GB + 64GB on board
- 802.11 a/b/g/n/ac2.4GHz and 5GHz dualband
- Bluetooth 5.0Wireless peripheral link
- Vo-LTEVoice over the 4G radio
- GPS, GLONASS, BeiDouGalileo and AGPS as well
- Zebra SE4710 / CM60The two 2D engine choices
- 13.56 MHzNFC operating frequency
- ISO14443A/B, ISO15693Contactless card standards
- NFC-IP1 and NFC-IP2Also on the protocol list
- USB Type-CUSB 2.0 with OTG
- Micro SD (TF) to 256GBIn the second card slot
Overview

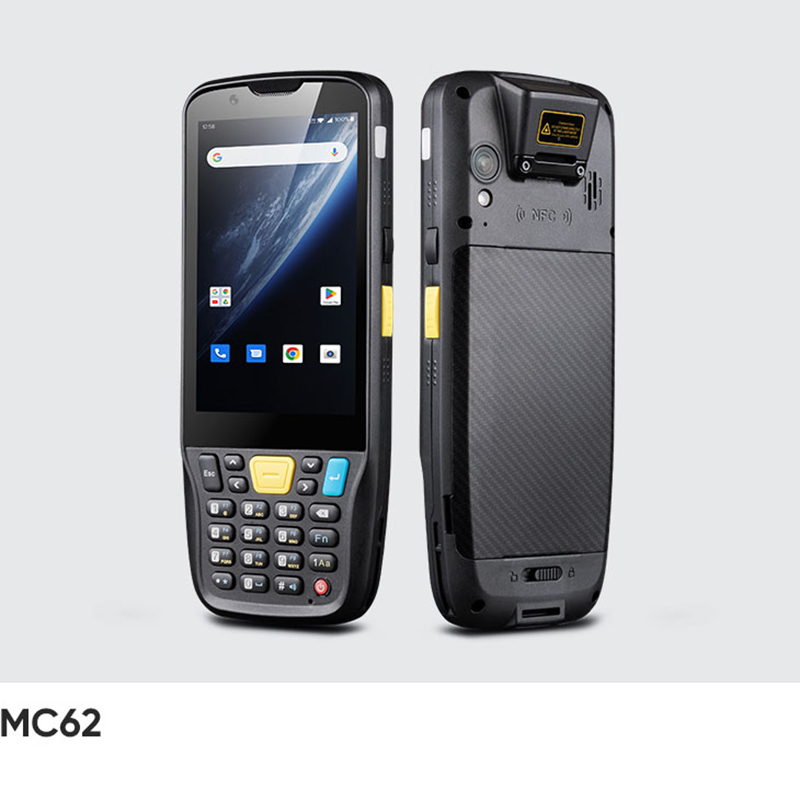

The MC62 is a keypad-first Android handheld for operators who enter and confirm data all shift. It measures 163.5 x 67.0 x 17.1mm, weighs 256g with the battery in it, and puts a main keypad, 2 scan keys and multi-function keys under a 4-inch 480 x 800 touch panel that answers to gloves and wet hands. An octa-core 2.0GHz processor with 4GB + 64GB drives it, and the 5000mAh battery is removable and supports quick charge.
The decision to make at order time is the 2D scan engine. Take it, and the handheld reads the full 1D and 2D symbology lists through a Zebra SE4710 or a Zebra CM60. Leave it off, and the NFC side still reads contactless cards at 13.56 MHz over a range of 2-4 cm while the 13MP autofocus rear camera records the evidence photo. Both configurations run Android 13 on the same chassis with the same 5000mAh battery, so a mixed fleet is bought, stocked and managed as one device.
The parts a buyer can look up are named on the configuration sheet: the scan engine is Zebra, the operating system is Android 13 with GMS, and the contactless side follows ISO14443A/B, ISO15693, NFC-IP1 and NFC-IP2. Development work runs on the CedaGlo Software Development Kit in Java, under Eclipse or Android Studio. Explore the full range of keypad mobile computers.
Key Features
Platform and Radios
- Android 13 with GMS
- Octa-core, 2.0GHz
- 4GB + 64GB, Micro SD (TF) to 256GB
- 802.11 a/b/g/n/ac, 2.4 and 5GHz
- Bluetooth 5.0, Vo-LTE, GNSS
Body and Endurance
- 163.5 x 67.0 x 17.1mm, 256g
- 4-inch 480 x 800 touch panel
- Gloves and wet hands supported
- 5000mAh removable, quick charge
- IP67 per IEC sealing specifications
Scanning and Reading
- Zebra SE4710 or CM60 2D engine
- 1D and 2D symbology lists
- NFC at 13.56 MHz, 2-4 cm
- 13MP autofocus rear camera
- Main keypad, 2 scan keys
Features & Functions at a Glance
Choose Your Configuration
| Feature | MC62 with 2D scan engine | MC62 without 2D scan engine |
|---|---|---|
| Best for | Barcode-driven picking, receiving and stock counts, where a scan key beats a keystroke | Keyed entry, contactless card checks and photo records, where there is no printed label to read |
| Form factor | 163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in, 256g / 9.03oz (device with battery) | |
| Shared hardware | Identical in both configurations | |
| Display | 4-inch, 480 x 800; multi-touch panel, gloves and wet hands supported | |
| Keypad | Main keypad, 2 scan keys, multi-function keys | |
| NFC | 13.56 MHz; ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.; range 2-4 cm | |
| Camera | Front 5MP; rear 13MP Autofocus with flash | |
| Power | 5000mAh removable battery, support quick charge | |
| The only difference | The three rows below are the only points on which the two configurations differ | |
| 2D Scanner | Zebra: SE4710; CM60 | — |
| 1D Symbologies | UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc. | — |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc. | — |
| Platform | Common to both configurations | |
| Operating System | Android 13; GMS | |
| CPU and memory | Octa-core, 2.0GHz; 4GB + 64GB; supports up to 256GB Micro SD (TF) card | |
| Wireless | 802.11 a/b/g/n/ac dualband; Bluetooth 5.0; 2G / 3G / 4G with Vo-LTE; GPS/AGPS, GLONASS, BeiDou, Galileo | |
| Interfaces | USB Type-C, USB 2.0, OTG | |
| Environment | IP67 per IEC sealing specifications; multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range | |
Both configurations are built on one chassis with one 5000mAh removable battery. The 2D scan engine is the only order-time choice.
Every value in this table matches the full Specifications section below.
A Closer Look at the Hardware

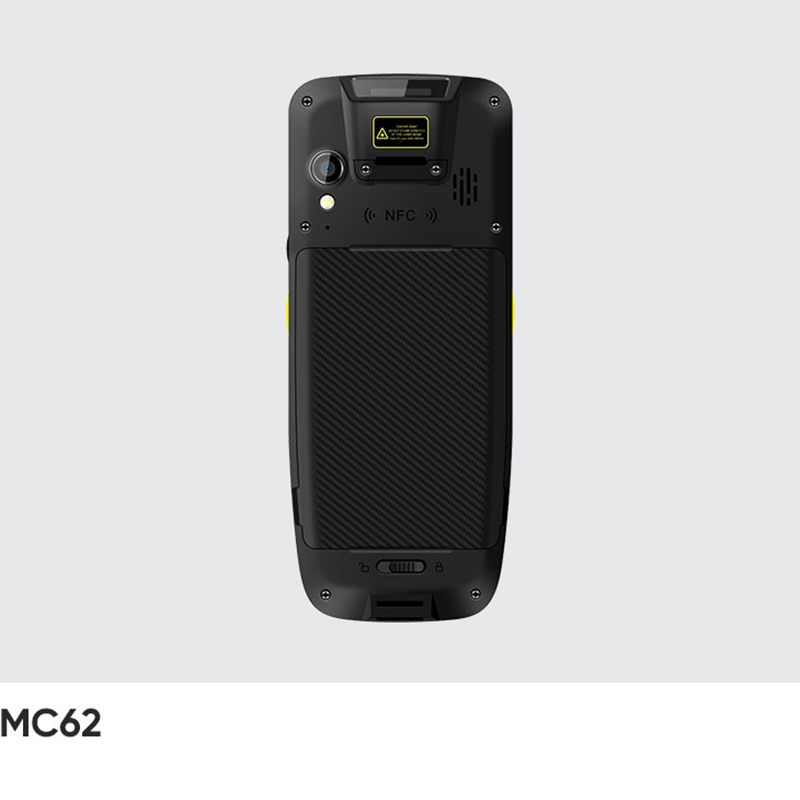

The back carries the NFC antenna and the batteryThe NFC mark sits above the cover, the 13MP autofocus rear camera and its flash sit beside it, and the latch at the foot releases the cover so the 5000mAh battery comes out on the floor.

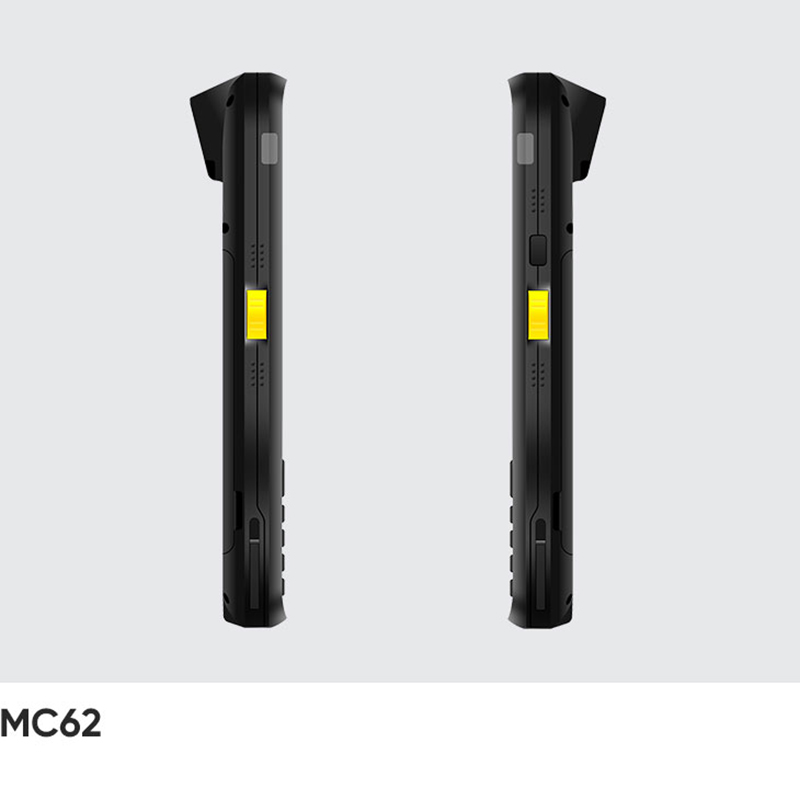

One scan key on each sideThe configuration sheet lists 2 scan keys, and one sits on each flank at the same height, so left- and right-handed operators reach the key with the thumb without turning the device around.

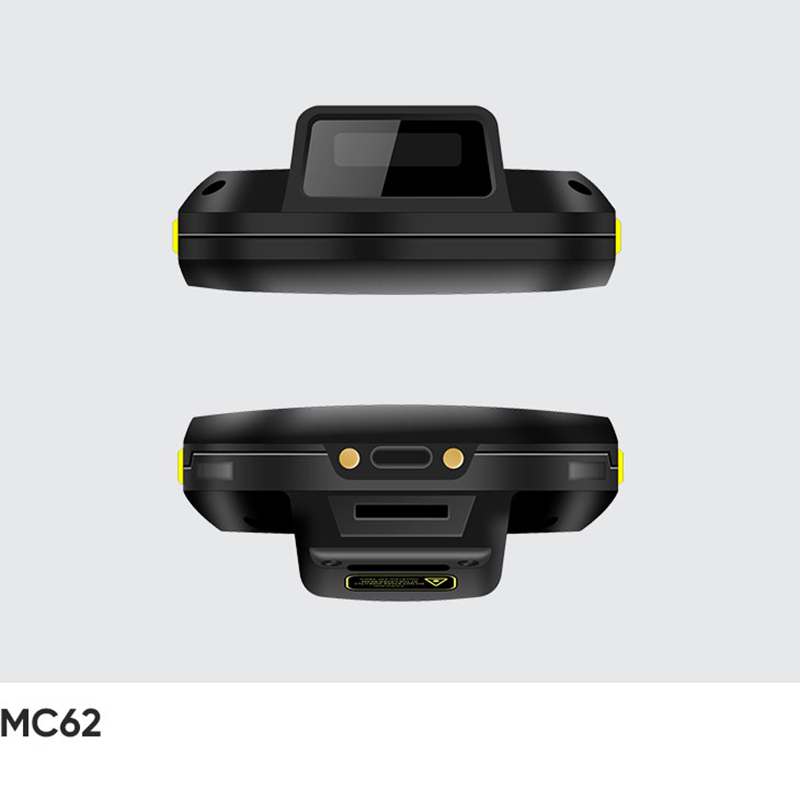

Scan window on top, USB Type-C belowThe scan window sits on the top edge above the display, and the bottom edge carries the USB Type-C port with a metal contact on either side. The port itself runs USB 2.0 and OTG.
Specifications
Physical Characteristics
- Dimensions
- 163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in
- Weight
- 256g / 9.03oz (device with battery)
- Display
- 4-inch, 480 x 800
- Touch Panel
- Multi-touch panel, gloves and wet hands supported
- Power
- 5000mAh removable battery, support quick charge
- Notification
- Sound, LED indicator, vibrator
- Expansion Slot
- 1 slot for SIM card, 1 slot for SIM or TF card
- Interfaces
- USB Type-C, USB 2.0, OTG
- Audio
- 2 microphones, 1 for noise reduction, back; 1 speaker; receiver
- Keypad
- Main keypad, 2 scan keys, multi-function keys
- Sensors
- Gravity sensor, distance sensor, light sensor; Gyroscope (optional), geomagnetic sensor (optional)
Communication
- WLAN
- 802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband (2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA
- WWAN
- 2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
TD-SCDMA (B34 / B39)
4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 /
B28A / B28B)
TDD-LTE (B34 / B38 / B39 / B40 / B41) - Bluetooth
- Bluetooth 5.0
- Vo-LTE
- Support
- GNSS
- GPS/AGPS, GLONASS, BeiDou, Galileo
Developing Environment
- Operating System
- Android 13; GMS
- SDK
- CedaGlo Software Development Kit
- Language
- Java
- Tool
- Eclipse / Android Studio
Performance
- CPU
- Octa-core, 2.0GHz
- RAM+ROM
- 4GB + 64GB
- Expansion
- Supports up to 256GB Micro SD (TF) card
User Environment
- Operating Temp.
- -4 ℉ to 122 ℉ / -20 ℃ to 50 ℃
- Storage Temp.
- -40 ℉ to 158 ℉ / -40 ℃ to 70 ℃
- Humidity
- 5% RH - 95% RH non condensing
- Drop Specification
- Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range
- Tumble Specification
- 1000 x 0.5 m / 1.64 ft. falls at room temperature
- Sealing
- IP67 per IEC sealing specifications
- ESD
- ±15 KV air discharge, ±8 KV conductive discharge
Barcode Scanning
- 2D Scanner
- Zebra: SE4710; CM60
- 1D Symbologies
- UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
- 2D Symbologies
- PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
*This function is optional
Camera
- Front Camera
- 5MP
- Rear Camera
- 13MP Autofocus with flash
NFC
- Frequency
- 13.56 MHz
- Protocol
- ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
- Chips
- M1 card (S50, S70), CPU card, NFC tags, etc.
- Range
- 2-4 cm
Every row above is transcribed from the MC62 configuration sheet. Items not listed there are not offered on this page.
Why Buy the MC62 From CedaGlo
Every Part Is Named
We list the scan engine as a Zebra SE4710 or CM60 and the contactless protocols as ISO14443A/B and ISO15693. Take those names to the component vendors and check them before you order a single unit.
Built to Your Order
The 2D scan engine is decided at order time, not fixed on a price list. Tell us which of the two configurations you need, and the build sheet and the lead time come back to you before production starts.
Try It Before You Commit
Ask for a test unit and put it through a full shift on your own network and back-end system. Scale up only after the keypad, the scanning and the battery have held up in your building.
Serviceable on Your Bench
The 5000mAh battery is removable, so the part most likely to wear out is the part you can stock. Spare-part availability, warranty terms and repair turnaround are set out in your order documents, not promised on a web page.
Frequently Asked Questions
Which barcodes can the MC62 read, and with which scan engine?
The 2D scan engine is a Zebra SE4710 or a Zebra CM60, and it is optional, so it is chosen at order time. With the engine fitted, the listed 1D symbologies include UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI and RSS, and the listed 2D symbologies include PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec and MaxiCode, together with postal codes. Read distance depends on the symbol size and the print quality of the label, so we do not quote a figure that the configuration sheet does not carry.
Which of the two configurations should I order?
Order the configuration with the 2D scan engine when the work is barcode-driven, that is picking, receiving or stock counts against printed labels. Order the configuration without it when operators key data in on the main keypad, read NFC cards at 13.56 MHz, or record a photo with the 13MP autofocus rear camera. Both configurations use the same body, the same 5000mAh removable battery and the same Android 13 build, so a mixed fleet is stocked and managed as one device.
Which components are named on the configuration sheet?
The 2D scan engine is a Zebra SE4710 or a Zebra CM60. The processor is octa-core at 2.0GHz, paired with 4GB of RAM and 64GB of storage, and the second card slot takes a Micro SD (TF) card up to 256GB. The NFC side works at 13.56 MHz and follows ISO14443A/B, ISO15693, NFC-IP1 and NFC-IP2. The operating system is Android 13 with GMS.
How long will the MC62 stay in service?
The 5000mAh battery is removable and supports quick charge, so the part that ages fastest is the part an operator can swap on the floor instead of sending the device away. Android 13 with GMS is the build it ships on. Spare-part availability, software support and end-of-life dates are commercial terms rather than specifications, so they are agreed when the order is placed.
How rugged is the MC62?
The configuration sheet rates the body to IP67 per IEC sealing specifications, to multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range, and to 1000 falls of 0.5 m / 1.64 ft. at room temperature. Electrostatic discharge is rated at plus or minus 15 KV air discharge and plus or minus 8 KV conductive discharge, and the operating range runs from minus 20 to 50 degrees Celsius. These are the design figures transcribed from the configuration sheet; ask us if you need the underlying test reports.
What does support look like after delivery?
Software work runs on the CedaGlo Software Development Kit in Java, under Eclipse or Android Studio, so an in-house team can build against the device without waiting on us. On the hardware side the battery, the SIM and Micro SD (TF) slots and the USB Type-C port are all reachable by the user. Warranty length, repair turnaround and spare-part terms are stated on the order confirmation.
