UHF Card | 860–960 MHz RAIN RFID Card
Long-Range Identification for Parking, Asset Tracking and Inventory
UHF cards are standard card-format passive RAIN RFID cards designed for long-range identification and data capture, operating at 860–960 MHz. Built on EPC Class 1 Gen 2 / ISO/IEC 18000-63 standards, available with Impinj, NXP UCODE, and Alien Higgs chip platforms. CR80 card format with PVC, PET or ABS composite material options, full personalization and OEM/ODM support.
- 📡860–960 MHz
UHF - ▣EPC Gen2 /
ISO 18000-63 - 🔊Long-Range
Reading - ✅Customizable &
Durable
What Are UHF Cards?
UHF cards are standard card-format passive RAIN RFID cards designed for long-range identification and data capture. These UHF RFID card solutions deliver reliable performance and are widely used for parking access, vehicle identification, warehouse inventory management, asset tracking, and logistics-related identification. Built on global standards, our long-range RFID card supports EPC Gen2 card and ISO 18000-63 to ensure compatibility with a broad range of UHF RFID readers and systems. Common chip platforms include Impinj M730 / M750 / M780, NXP UCODE 8 / UCODE 9, and Alien Higgs 3 / Higgs 9. CedaGlo supports OEM and ODM programs with full personalization for project-specific customization. Learn more about our UHF card range.
Common Requirements in UHF Card Projects
Reliable long-range card reading in daily operations
Compatibility with common UHF RFID readers and fixed reader systems
Flexible chip and memory choices for different project levels
Printable visual identification combined with RFID functionality
Durable card construction for repeated handling and deployment
OEM/ODM support for parking cards, vehicle ID cards, and warehouse cards
Why Choose CedaGlo UHF Cards
Broad chip selection for cost, performance, and memory flexibility — Impinj, NXP UCODE, and Alien Higgs platforms available.
Stable antenna design and consistent UHF card performance for reliable long-range identification across varied environments.
CR80 standard card format for easy issuance and daily use, compatible with standard card printers and encoders.
Support for printing, variable data, barcode, QR code, and serial number. OEM/ODM support for project-specific customization.
Technical Highlights
RAIN RFID / UHF 860–960 MHz
EPC Class 1 Gen 2 / ISO/IEC 18000-63 compliant
Typical standard CR80 card construction
Optional EPC / TID / user memory depending on selected chip
Typical read range depends on reader, antenna, and application
Optional access / kill password and advanced chip-level features on selected chips
Key Features
- 860–960 MHz; EPC Class 1 Gen 2 / ISO/IEC 18000-63
- Impinj M730 / M750 / M780 / M830 / M850
- NXP UCODE 8 / UCODE 8m / UCODE 9 / UCODE DNA
- Alien Higgs 3 / Higgs 9 or equivalent
- CR80 standard format: 85.60 × 53.98 mm
- 0.76 mm standard thickness; customizable
- PVC / PET / ABS composite material options
- Glossy, matte or frosted finish available
- Offset / silk-screen / digital printing
- UID / serial number, barcode, QR code
- EPC / TID / User Memory pre-encoding
- Signature panel optional add-on
Technical Specifications
| UHF Card — Technical Specifications | |
|---|---|
| Card Type | UHF Card / Standard RAIN RFID Card |
| Frequency | 860–960 MHz (regional versions available) |
| Protocol | EPC Class 1 Gen 2 / ISO/IEC 18000-63 |
| Technology | Passive UHF / RAIN RFID |
| Common Applications | Parking access, vehicle identification, warehouse inventory management, logistics identification, asset tracking |
| Chip Options | Impinj M730 / M750 / M780 / M830 / M850, NXP UCODE 8 / UCODE 8m / UCODE 9 / UCODE DNA, Alien Higgs 3 / Higgs 9, or equivalent |
| EPC Memory | Typically 96-bit to 496-bit, chip-dependent |
| TID Memory | Typically 32-bit to 96-bit or chip-dependent |
| User Memory | Optional, depending on selected chip |
| Read / Write Type | Readable and writable depending on selected chip and encoding |
| Write Endurance | Typically up to 100,000 cycles, chip-dependent |
| Data Retention | Typically up to 50 years, chip-dependent |
| Read Range | Typical 1–8 m, depending on reader, antenna, environment, and application |
| Operating Temperature | Typical project range -20°C to +70°C; options vary by chip and material |
| Security / Encryption Type | EPC Gen2 access / kill password; optional authenticated or advanced security features on selected chips |
| Card Size | CR80, 85.60 × 53.98 mm |
| Thickness | 0.76 mm standard; customizable |
| Material | PVC / PET / ABS composite options |
| Finish | Glossy / Matte / Frosted |
| Personalization | Offset / silk-screen / digital printing, UID / serial number, barcode, QR code, signature panel optional |
Specifications may vary by selected chip, card material, reader setup, and project requirements.
Volume Pricing
| Quantity | Unit Price (USD / pc) |
|---|---|
| 100 – 199 pcs | From US$0.30 |
| 200 – 299 pcs | From US$0.28 |
| 300+ pcs | Contact Sales |
Final unit price depends on chip selection, card material, printing configuration, encoding, and order quantity. Minimum order 100 pcs. Contact our sales team for project-specific pricing.
Supported Chip Platforms
Other UHF chip platforms available on request. Contact our team to confirm compatibility with your existing reader infrastructure and application requirements.
UHF Chip Selection Guide
| Chip | Brand | EPC Memory | TID Memory | Security | Best For |
|---|---|---|---|---|---|
| Impinj M730 | Impinj | 96-bit | 48-bit | Access / Kill password | General-purpose asset ID, cost-driven parking projects |
| Impinj M750 | Impinj | 96-bit | 48-bit | Access / Kill password | Balanced performance for warehouse and retail applications |
| Impinj M780 | Impinj | 128-bit | 96-bit | Authenticated | Higher-value asset tracking, extended read range projects |
| Impinj M830 / M850 | Impinj | 128 – 496-bit | 96-bit | Authenticated + Sensor | Premium logistics, cold chain, high-security applications |
| NXP UCODE 8 | NXP | 96 – 496-bit | 96-bit | Access / Kill password | Warehouse inventory, retail item-level tagging |
| NXP UCODE 8m | NXP | 96-bit | 96-bit | Access / Kill password | Metal-mountable applications, asset tags on metal surfaces |
| NXP UCODE 9 | NXP | 96 – 496-bit | 96-bit | Enhanced security | Long-range logistics, supply chain, high-volume reads |
| NXP UCODE DNA | NXP | 128-bit | 96-bit | AES cryptography | Brand protection, anti-counterfeiting, secure authentication |
| Alien Higgs 3 | Alien Technology | 96-bit | 32 – 96-bit | Access / Kill password | Cost-driven parking cards, general asset identification |
| Alien Higgs 9 | Alien Technology | 96 – 496-bit | 96-bit | Access / Kill password | Extended memory logistics and inventory tracking projects |
For cost-driven parking and general identification, Impinj M730 or Alien Higgs 3 offer reliable performance. For high-security or brand-protection applications, NXP UCODE DNA with AES cryptography is recommended. Contact our team for chip selection advice based on your read range and security requirements.
Application Scenarios

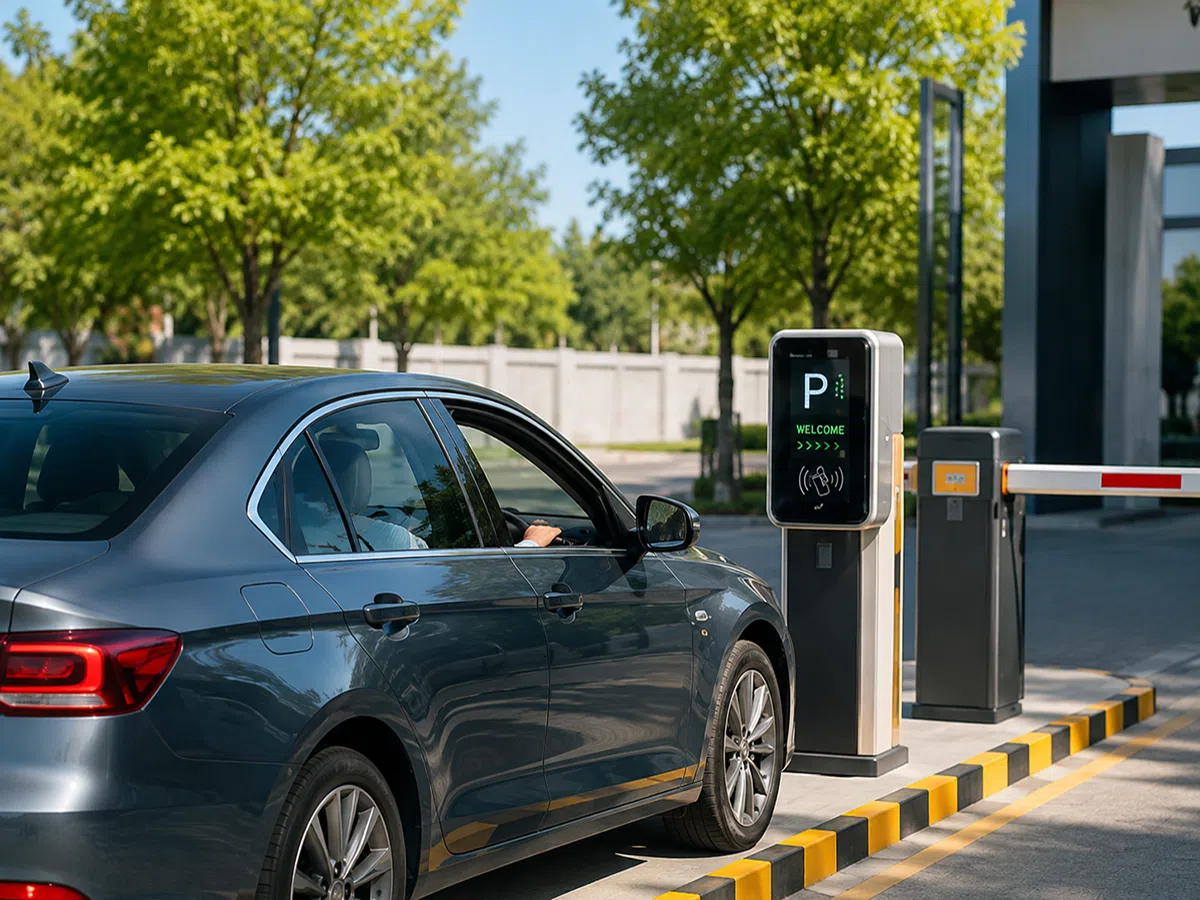

Long-range card identification for vehicle entry and parking management.
- Reads vehicle card at 1–8 m without driver stopping
- Impinj M730 or Alien Higgs 3 for cost-driven deployment
- Custom printing with license plate or resident ID

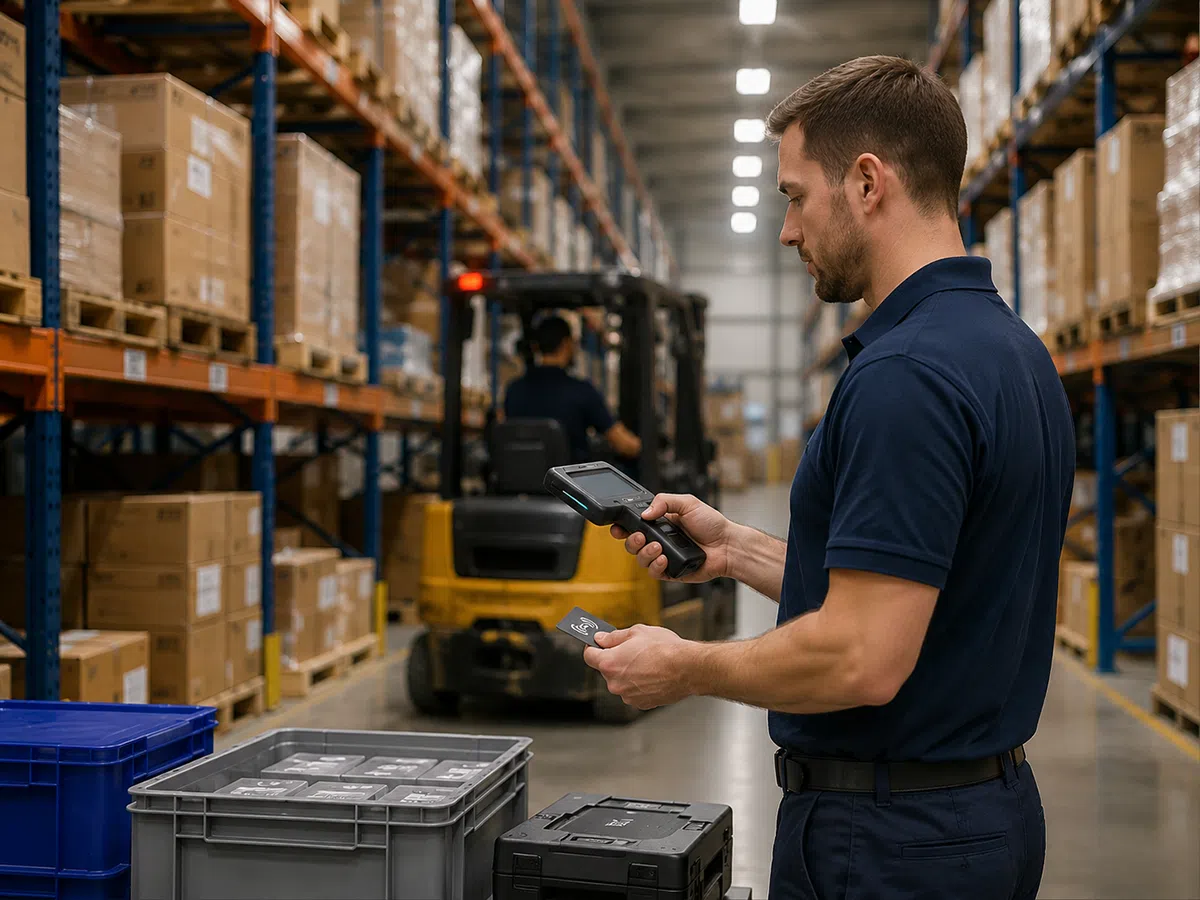

Fast identification for stock handling, tracking, and inventory visibility.
- NXP UCODE 8/9 for bulk item-level inventory scans
- Handheld or fixed reader compatible for flexible workflows
- EPC encoding supports real-time stock tracking systems

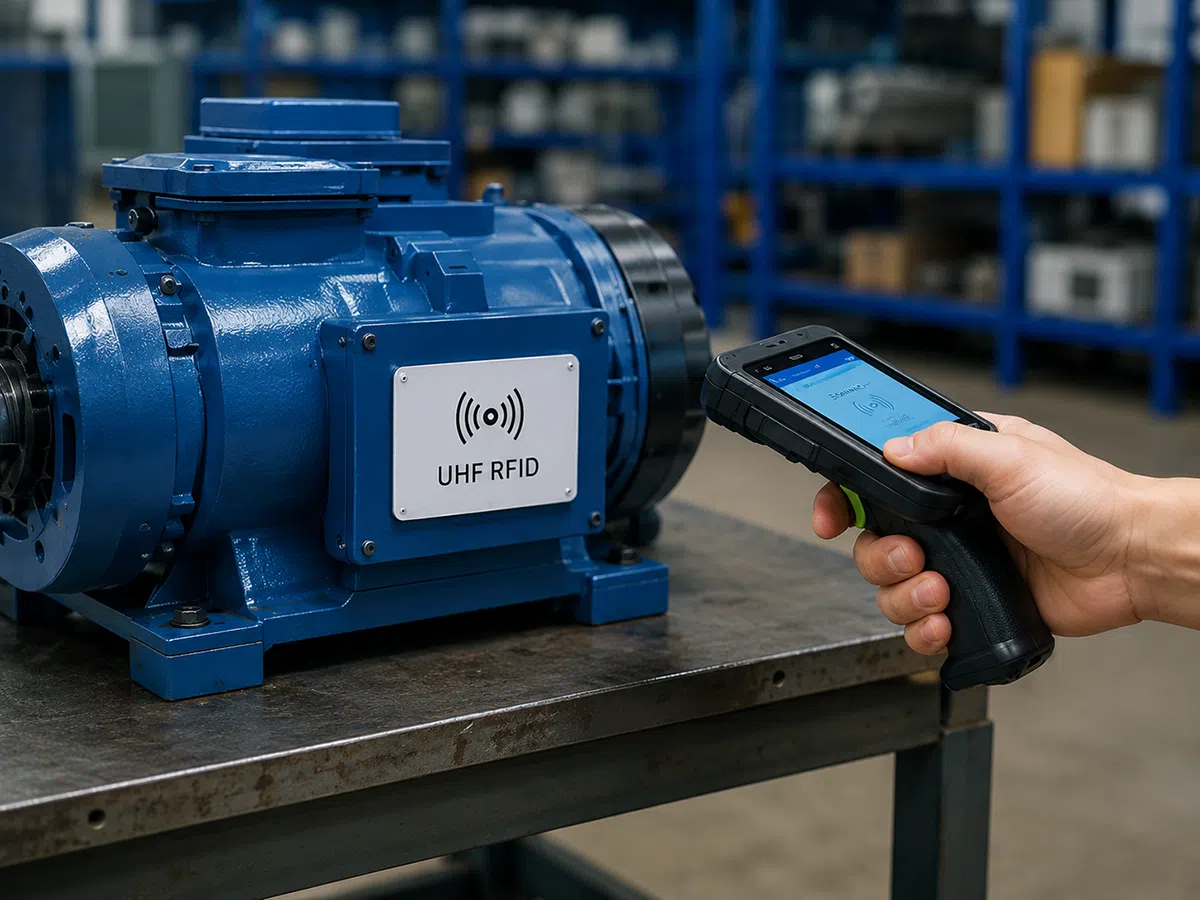

Reliable RFID card-based identification for tools, equipment, and reusable assets.
- UCODE 8m variant suitable for metal-mounted assets
- TID memory enables unique unforgeable asset serial numbers
- Durable card construction withstands industrial handling

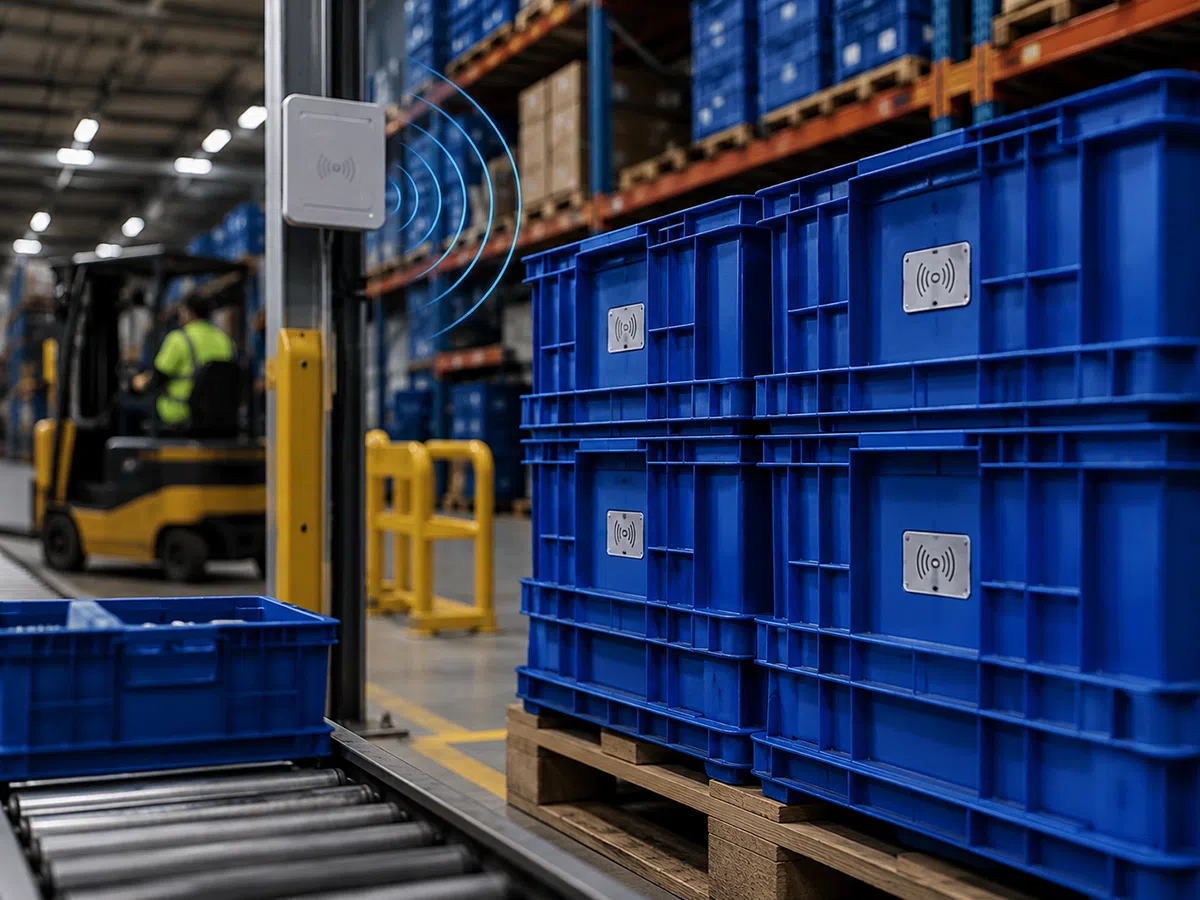

Efficient management of trays, bins, and reusable containers across operations.
- Bulk read capability tracks multiple containers simultaneously
- Impinj M780 extended range for automated dock scanning
- Rewritable memory updates container status and location
Frequently Asked Questions
What chip options are available for UHF cards?
CedaGlo offers a range of UHF chip platforms including Impinj M730/M750/M780/M830/M850, NXP UCODE 8/UCODE 8m/UCODE 9/UCODE DNA, and Alien Higgs 3/Higgs 9 or equivalent. EPC memory typically ranges from 96-bit to 496-bit, with TID memory from 32-bit to 96-bit depending on the selected chip. Contact our team for chip selection advice based on your read range and security requirements.
What is the typical read range for UHF RFID cards?
Typical read range is 1–8 meters, depending on the reader power, antenna gain, selected chip, and application environment. Fixed reader setups with higher-gain antennas combined with premium chips such as Impinj M780 or M830/M850 can achieve extended range for applications like automated dock scanning or long-range parking access. Contact our team for range recommendations based on your specific reader configuration.
What are typical use cases for UHF cards?
UHF cards are widely used for parking access and vehicle identification, warehouse inventory management, asset tracking and identification, returnable item or container tracking, and general logistics-related identification. Their long-range reading capability makes them suitable for both fixed-gate applications like parking barriers and mobile handheld scanning in warehouse environments.
Can I get custom-printed UHF cards with variable data encoding?
Yes. CedaGlo supports offset, silk-screen, and digital printing with variable data, UID/serial number, barcode, and QR code. EPC, TID, and User Memory can be pre-encoded according to your project requirements, and a signature panel is available as an optional add-on. OEM and ODM programs are available for project-specific customization. Please contact our sales team with your encoding specifications and quantity requirements for a tailored project quote.
