HF RFID Card | 13.56 MHz Contactless Smart Card
MIFARE, DESFire, NTAG & ICODE Cards for Access, Transit & Campus
High frequency RFID cards operating at 13.56 MHz, available with MIFARE Classic, MIFARE DESFire, MIFARE Ultralight, NTAG, ICODE and other chip platforms. Compliant with ISO/IEC 14443A/B and ISO/IEC 15693. CR80 card format with PVC, PET, PETG or ABS material options, full personalization and OEM/ODM support.
- 📡13.56 MHz
Contactless - 📶Broad Chip
Options - ⚡Fast &
Reliable - 🖨️Customizable
& Durable
What Are HF RFID Cards?
HF RFID cards are 13.56 MHz contactless smart cards widely used for access control, membership, campus systems, transit ticketing, cashless payment, library systems, and identification. They deliver stable and consistent performance with common HF platforms such as MIFARE Classic, MIFARE DESFire, MIFARE Ultralight, NTAG, ICODE, ST25, and selected compatible chips depending on project requirements. Compliant with ISO/IEC 14443A / 14443B and selected ISO/IEC 15693 platforms, HF RFID cards work with a wide range of contactless readers and infrastructure. CedaGlo supports OEM and ODM programs with full card personalization including printing and encoding for access control cards, campus cards, transit cards, and membership programs. Learn more about our HF RFID card range.
Common Requirements in HF Card Projects
Stable and reliable daily card reading performance across environments
Compatibility with common HF readers and existing infrastructure
Flexible chip and memory choices for different security requirements
Support for secure identification, ticketing, and stored-data use
Durable card body and personalization for long-term deployment
OEM/ODM support with encoding, printing, and serial number options
Why Choose CedaGlo HF RFID Cards
MIFARE Classic, DESFire, Ultralight, Plus, NTAG, ICODE SLIX, ST25 and other HF platforms for different security and memory levels.
Compliant with ISO/IEC 14443A/B and selected ISO/IEC 15693 platforms, compatible with most installed HF reader infrastructure.
UID-only, password-protected, CRYPTO1, 3DES or AES encryption depending on chip — from basic ID to high-security applications.
Offset, silk-screen, digital printing, UID / serial number, barcode, QR code, encoding and magnetic stripe optional. OEM/ODM supported.
Technical Highlights
13.56 MHz HF RFID operation; ISO/IEC 14443A / 14443B and selected ISO/IEC 15693 compliant
Common chip families: MIFARE, DESFire, NTAG, ICODE, ST25, FM11RF08 and equivalents
Security options from UID-only to CRYPTO1, 3DES and AES depending on selected chip
Typical write endurance up to 100,000 cycles; data retention 10 years or longer, chip-dependent
Read/write or secure multi-application depending on chip; reading distance typically 2–10 cm
CR80 card format, 85.6 × 54 mm; PVC / PET / PETG / ABS material options
Key Features
- 13.56 MHz; ISO/IEC 14443A/B and ISO/IEC 15693
- MIFARE Classic / Plus / DESFire / Ultralight families
- NTAG213 / 215 / 216; ICODE SLIX / SLIX2
- ST25TA / ST25TV / ST25TB; FM11RF08 compatible
- CR80 standard format: 85.6 × 54 mm
- 0.76 mm standard thickness; customizable
- PVC / PET / PETG / ABS material options
- Glossy, matte or frosted finish available
- Offset / silk-screen / digital full-color printing
- UID / serial number, barcode, QR code
- Chip encoding (sector data, application write)
- Magnetic stripe (LoCo / HiCo) optional add-on
Technical Specifications
| HF RFID Card — Technical Specifications | |
|---|---|
| Card Type | HF RFID Card / 13.56 MHz Contactless Smart Card |
| Frequency | 13.56 MHz |
| Common Applications | Access control, campus card, transit ticketing, cashless payment, library, membership, identification |
| Chip Options | MIFARE Classic EV1 1K / 4K, MIFARE Ultralight EV1 / Ultralight C, MIFARE Plus EV1 / EV2, MIFARE DESFire EV2 / EV3, NTAG213 / 215 / 216, ICODE SLIX / SLIX2, ST25TA / ST25TV / ST25TB series, FM11RF08 or equivalent |
| Memory Capacity | UID only / 48 B / 128 B / 512 bit / 1 KB / 4 KB / 8 KB typical, depending on selected chip |
| Interface / Protocol | Contactless HF RFID; ISO/IEC 14443 Type A / Type B, selected ISO/IEC 15693 options depending on chip |
| Read / Write Type | Read-only, read/write, or secure multi-application depending on selected chip |
| Write Endurance | Typical up to 100,000 cycles, chip-dependent |
| Data Retention | Typically 10 years or longer, chip-dependent |
| Reading Distance | Typical 2–10 cm; longer range possible for selected ISO/IEC 15693 chips and reader setups |
| Security / Encryption | UID only / password protection / CRYPTO1 / 3DES / AES, depending on chip |
| UID / Serial Number | 4-byte, 7-byte, or chip-specific UID depending on selected chip |
| Operating Temperature | Typically -25°C to +70°C; varies by chip and card material |
| Card Size | CR80, 85.6 × 54 mm |
| Thickness | 0.76 mm standard; customizable |
| Material | PVC / PET / PETG / ABS optional |
| Finish | Glossy / Matte / Frosted |
| Personalization | Offset / silk-screen / digital printing, UID / serial number, barcode, QR code, encoding, magnetic stripe optional |
Specifications are configured according to the selected chip, security level, reader environment, and project requirements.
Volume Pricing
| Quantity | Unit Price (USD / pc) |
|---|---|
| 100 – 199 pcs | From US$0.30 |
| 200 – 299 pcs | From US$0.28 |
| 300+ pcs | Contact Sales |
MOQ: 1 piece. Volume pricing begins at 100 pcs. Below that, order a single custom piece from US$50 per order, or test with white 13.56 MHz PVC cards from stock.
Final unit price depends on chip selection, card material, printing configuration, and order quantity. Contact our sales team for project-specific pricing.
Supported Chip Platforms
Other HF chip platforms available on request. Contact our team to confirm compatibility with your existing reader infrastructure.
HF Chip Selection Guide
| Chip | Brand | Memory | R/W | Security | Protocol | Best For |
|---|---|---|---|---|---|---|
| MIFARE Classic EV1 1K | NXP | 1 KB EEPROM | Read/Write | CRYPTO1 | ISO 14443A | Access control, transit, campus (legacy & cost-driven) |
| MIFARE Classic EV1 4K | NXP | 4 KB EEPROM | Read/Write | CRYPTO1 | ISO 14443A | Multi-application access, larger data storage |
| MIFARE Ultralight EV1 | NXP | 48 / 128 B | Read/Write | Password (32-bit) | ISO 14443A | Low-cost ticketing, event passes, single-trip cards |
| MIFARE Ultralight C | NXP | 192 B EEPROM | Read/Write | 3DES auth | ISO 14443A | Ticketing with stronger auth than Ultralight EV1 |
| MIFARE Plus EV1 / EV2 | NXP | 2 / 4 KB EEPROM | Read/Write | AES-128 | ISO 14443A | Classic upgrade path; access, transit, payment migration |
| MIFARE DESFire EV2 | NXP | 2 / 4 / 8 KB | Read/Write | AES / 3DES | ISO 14443A | High-security multi-application: campus, transit, payment |
| MIFARE DESFire EV3 | NXP | 2 / 4 / 8 KB | Read/Write | AES / 3DES | ISO 14443A | Latest DESFire; transaction MAC, SUN messaging, IoT |
| NTAG213 / 215 / 216 | NXP | 144 / 504 / 888 B | Read/Write | Password (32-bit) | ISO 14443A / NFC | NFC marketing, URL/vCard, smart packaging, authentication |
| ICODE SLIX | NXP | 1 kbit EEPROM | Read/Write | Password protection | ISO 15693 | Library management, retail inventory, longer read range |
| ICODE SLIX2 | NXP | 2 kbit EEPROM | Read/Write | Password + EAS | ISO 15693 | Library, anti-theft (EAS), supply chain |
| ST25TA / ST25TV | STMicroelectronics | 512 B – 8 KB | Read/Write | RF / I2C password | ISO 14443A / NFC | Dual-interface IoT, pairing, authentication tags |
| ST25TB (SRT512 series) | STMicroelectronics | 512 B / 2 KB | Read/Write | Segment lock | ISO 14443B | Transit ticketing, loyalty cards (Type B infrastructure) |
| FM11RF08 / FM11RF32 | Fudan Microelectronics | 1 / 4 KB EEPROM | Read/Write | CRYPTO1-compatible | ISO 14443A | MIFARE Classic compatible, cost-driven access & campus |
Security strength varies significantly between chip generations. For high-security applications, MIFARE DESFire EV2/EV3 or MIFARE Plus EV2 with AES-128 is recommended. Contact our team for chip selection advice based on your reader infrastructure and security requirements.
Application Scenarios

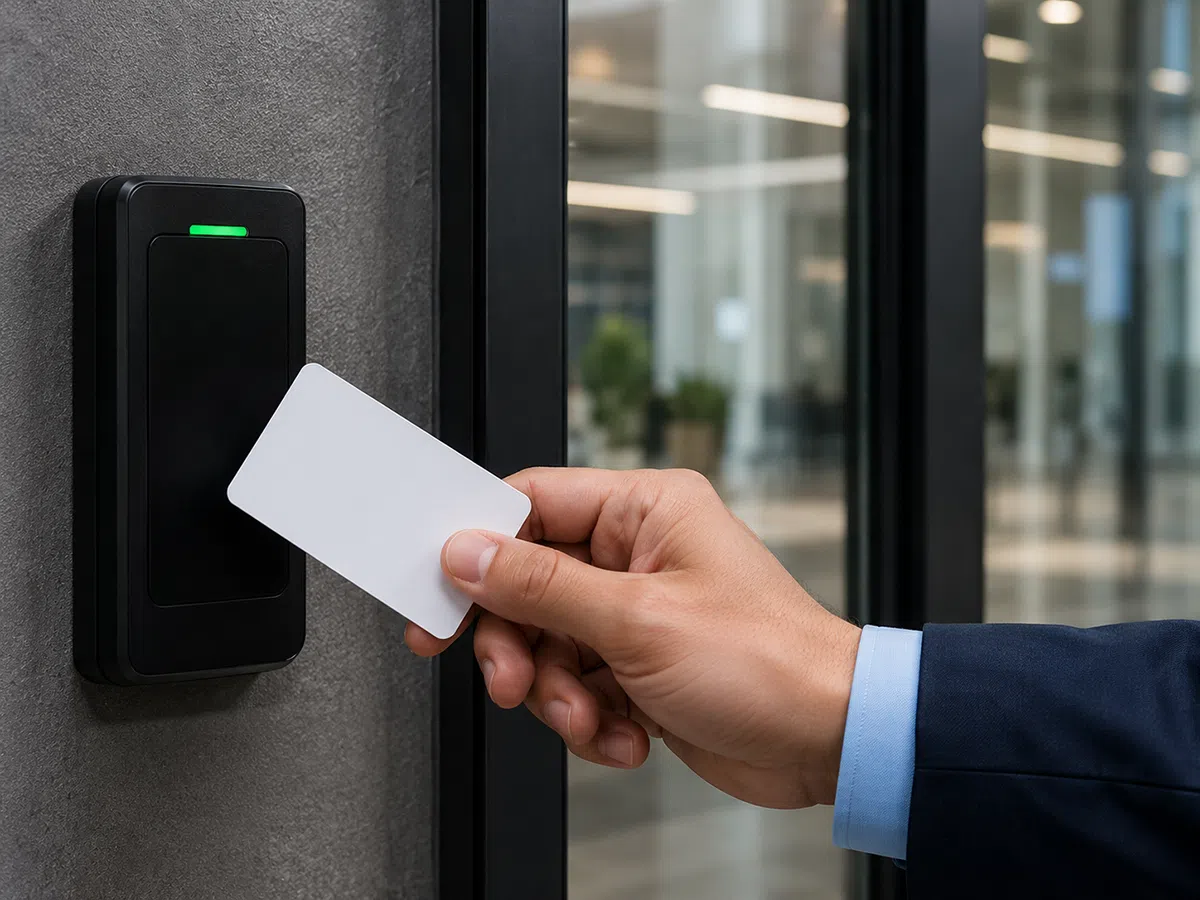

Secure entry to buildings and restricted areas.
- Works with ISO 14443A readers and MIFARE-compatible systems
- MIFARE Classic for legacy; DESFire EV2/EV3 for high security
- Supports multi-door, multi-zone access on one card
Student ID, library access and campus services.
- Multi-application card for ID, access, and cashless payment
- ICODE SLIX for library book tracking and anti-theft
- Full-color print with student photo and barcode encoding
Membership perks and cashless transactions.
- Stored-value payment on MIFARE Classic or DESFire chip
- Loyalty point encoding with full-color membership branding
- Magnetic stripe add-on available for dual-system use
Tap-and-go fare collection and travel convenience.
- Fast tap response for high-throughput turnstile gates
- MIFARE Ultralight for single-trip; DESFire for stored value
- ST25TB for ISO 14443B transit infrastructure compatibility
Frequently Asked Questions
What chip options are available for 13.56 MHz HF RFID cards?
CedaGlo offers a wide range of HF chip platforms including MIFARE Classic EV1 1K/4K, MIFARE Ultralight EV1/C, MIFARE Plus EV1/EV2, MIFARE DESFire EV2/EV3, NTAG213/215/216, ICODE SLIX/SLIX2, ST25TA/ST25TV/ST25TB series, and FM11RF08 or equivalent. Memory ranges from 48 B to 8 KB, and security options span from UID-only to AES-128 encryption depending on the selected chip. Contact our team for chip selection advice based on your application and reader infrastructure.
Are your HF RFID cards compatible with ISO/IEC 14443 and ISO/IEC 15693 readers?
Yes. Our HF RFID cards support ISO/IEC 14443 Type A and Type B (covering MIFARE, DESFire, NTAG, ST25TB and compatible chips) as well as selected ISO/IEC 15693 platforms (ICODE SLIX/SLIX2 for library and inventory applications). This ensures broad compatibility with standard HF contactless readers and existing infrastructure without requiring hardware replacement.
What are the typical applications for 13.56 MHz contactless smart cards?
HF RFID cards at 13.56 MHz are deployed across access control, campus and student ID systems, public transit ticketing, cashless and stored-value payment, library management, membership programs, and general identification. Their fast read response, flexible memory options, and strong security capabilities make them suitable for both simple ID applications and complex multi-application card programs.
Can I get custom-printed HF RFID cards with specific chip encoding?
Yes. CedaGlo provides full card personalization including offset, silk-screen and digital printing, UID and serial number printing, barcode and QR code, as well as chip encoding services — including sector key writing, application data initialization, and stored-value setup depending on the chip type. Magnetic stripe is also available as an optional add-on. Please contact our sales team with your artwork files, encoding specifications, and quantity requirements for a tailored project quote.
How many pieces of HF RFID Card do I need to order, and how are prices tiered?
One piece is enough to start: white 13.56 MHz PVC cards are available as samples, and a single custom piece is made from US$50. Tiered pricing begins at 100 pcs, from US$0.30 per piece down to US$0.28, depending on MIFARE, DESFire, NTAG or ICODE chips, printing, numbering and encoding.
Can HF RFID Card be made under our own brand, and how fast?
Yes, under OEM or ODM: MIFARE, DESFire, NTAG or ICODE chips, printing, numbering and encoding are all specified per order. Because we are the factory, we schedule production directly, and HF RFID Card samples usually leave in a week, and a 10,000-piece order in approximately two weeks.
