Informação do produto

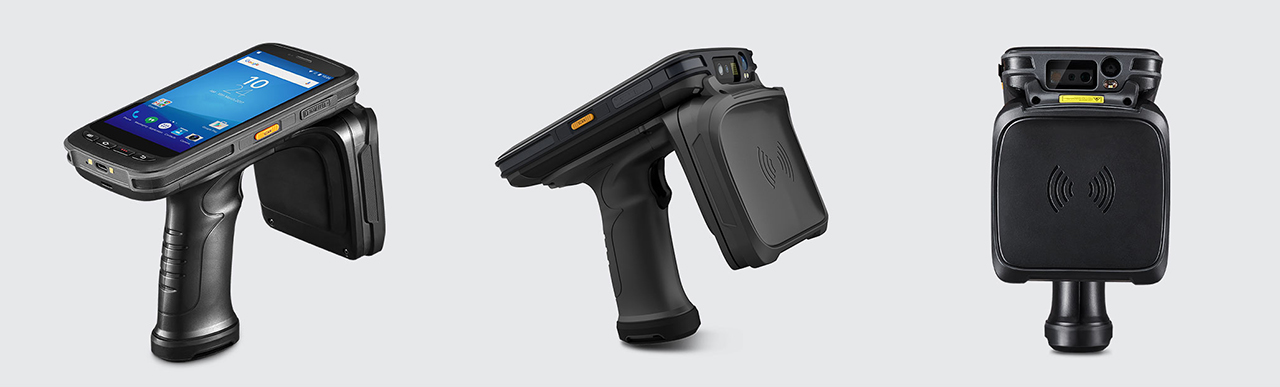

Gravity é um leitor RFID robusto para Android que possui a melhor capacidade RFID UHF da categoria. Construído com Impinj E710 / R2000 integrado, permite mais de 30 m de distância de leitura em ambientes externos. O leitor RFID possui leitura de código de barras opcional, processador Octa-Core e bateria poderosa de 8000mAh para atender perfeitamente às demandas em aplicações intensivas, especialmente em gerenciamento de ativos, varejo, armazenamento, estoque de vestuário, pedágio em vias expressas, gerenciamento de frota, finanças, etc.

Features
Android 11	Cortex-A53 Octa-core 2.3GHz
RAM+ROM: 3+32GB/4+64GB (Optional)	5.2'' IPS 1080P Screen
8000mAh Powerful Battery
Functions
UHF RFID (Impinj E710/R2000 Chip)	Barcode Scanning (Optional)
NFC (Optional)	13MP Autofocus Camera
Accurate GPS	Dual-band WIFI

Especificações

Características físicas

Dimensions	164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Weight	654 g / 23.07 oz.
Display	5.2'' IPS LTPS 1920 x 1080
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	Main battery: Li-ion, rechargeable, 8000 mAh Standby: over 500 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification	Sound, LED indicator
Expansion Slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces	USB 2.0 Type-C, OTG, Type-C headphones supported
Audio	1 microphone；1 speaker；receiver
Keypad	4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors	Light sensor, proximity sensor, gravity sensor

Comunicação

WLAN	IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN	2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8        CDMA2000 EVDO: BC0        TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A        B28B/B34/B38/B39/B40/B41
WWAN (Others)	Depending on the country's ISP
Bluetooth	Bluetooth 5.0
GNSS	GPS/AGPS, GLONASS, BeiDou; internal antenna
Note	*Gravity models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.



Ambiente em Desenvolvimento

Operating System	Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK	Software Development Kit
Language	Java
Tool	Eclipse / Android Studio



Desempenho

CPU	Cortex-A53 2.3 GHz Octa-core
RAM+ROM	3GB + 32GB 4GB + 64GB (optional)
Expansion	Supports up to 128 GB Micro SD card



Ambiente do usuário

Operating Temp.	4 °F to 122 °F / -20 °C to 50 °C
Storage Temp.	-40 °F to 158 °F / -40 °C to 70 °C
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 / IP67 per IEC sealing specifications
ESD	±15 KV air discharge, ±6 KV conductive discharge



Leitura de código de barras

1D Linear Scanner	Zebra: SE965; Honeywell: N4313
2D Imager Scanner	Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603; CM60
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note	*This function is optional



RFID UHF

Engine	CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11, Impinj Protected Mode Supported
Antenna	Linear polarization(1.8 dBi); circular polarization (4 dBi)
Power	1W (30 dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
Fastest Read Rate	1300+ tags/sec (circular polarization)
Max Read Range	Impinj E710 chip: 26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm) Impinj R2000 chip: 24m (Impinj MR6 tag, size 70 x 15mm) 24m (Impinj M750 tag, size 70 x 15mm) 28m (Alian H3 Anti-Metal tag, size 130 x 42mm)
Note	*Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
Note2	*This function is optional



Câmera

Camera

13 MP Autofocus with flash



NFC

Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm
Note	*This function is optional



Acessórios opcionais

Accessories	USB Cable, Adapter.
Note	*See details in accessory guide
