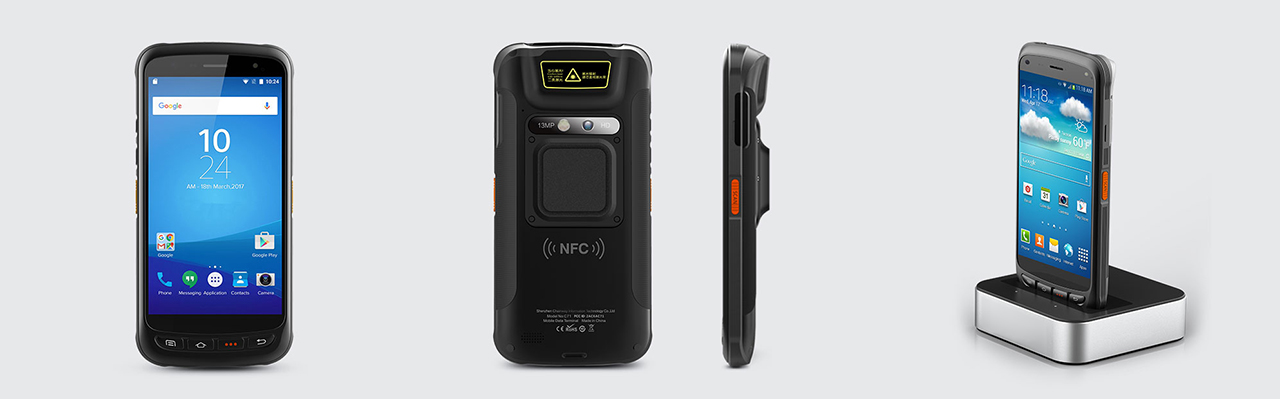

Nova - Built-in RFID Reader (Android 11)
Leve e portátil, capacidade UHF superior
Informação do produto
Nova é o auge da eficiência e versatilidade. Equipado com Android 11 e um processador Cortex-A53 Octa-core de 2,3 GHz, garante desempenho perfeito. Com opções de 3+32GB ou 4+64GB de RAM+ROM, expansível até 128GB, oferece amplo armazenamento. A tela IPS 1080P de 5,2'' oferece imagens nítidas, enquanto a poderosa bateria de 5000mAh garante uso prolongado. Sua vedação IP65 e design à prova de queda de 1,8 m garantem durabilidade. Apresentando capacidade UHF superior com o chip Impinj E310, oferece um alcance máximo de leitura de até 4m. Leitura de código de barras opcional, NFC e uma câmera com foco automático de 13 MP aumentam sua versatilidade. Com GPS preciso e WIFI de banda dupla, a conectividade é perfeita. Leve, portátil e repleto de recursos, nosso leitor RFID é a solução definitiva para diversas aplicações.
| Features | |
| Android 11 | Cortex-A53 Octa-core 2.3GHz |
| RAM+ROM: 3+32GB/4+64GB (Optional) | 5.2'' IPS 1080P Screen |
| 5000mAh Powerful Battery | 1.8m Drop Proof, IP65 Sealing |
| Functions | |
| UHF RFID (Impinj E310 Chip) | Barcode Scanning (Optional) |
| NFC | 13MP Autofocus Camera |
| Accurate GPS | Dual-band WIFI |
Especificações
Características físicas
| Dimensions | 164.2 x 78.8 x 17.5mm / 6.46 x 3.10 x 0.69 in. |
| Weight | ＜321 g / 11.32 oz. |
| Display | 5.2'' IPS LTPS 1920 x 1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | Main battery: Li-ion, rechargeable, 5000 mAh Standby: over 350 hours Continuous use: over 12 hours (depending on user environment) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Notification | Sound, LED indicator, vibrator |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card |
| Interfaces | USB 2.0 Type-C, OTG, Type-C headphones supported |
| Audio | 2 microphones，1 for noise cancellation；1 speaker；receiver |
| Keypad | 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key |
| Sensors | Light sensor, proximity sensor, gravity sensor |
Comunicação
| WLAN | IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna |
| WWAN | 2G: GSM850/GSM900/DCS1800/PCS1900 3G: WCDMA：B1/B2/B4/B5/B8 CDMA2000 EVDO: BC0 TD-SCDMA：A/F 4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A B28B/B34/B38/B39/B40/B41 |
| WWAN (Others) | Depending on the country's ISP |
| Bluetooth | Bluetooth 5.0 |
| GNSS | GPS/AGPS, GLONASS, BeiDou; internal antenna |
| Note | *Nova models being manufactured for Turkish & Egyptian Markets, do not include Voice Call ( Phone Call ) function. WAN module included on those models only support DATA transfer. |
Ambiente em Desenvolvimento
| Operating System | Android 11.0; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
Desempenho
| CPU | Cortex-A53 2.3 GHz Octa-core |
| RAM+ROM | 3GB + 32GB 4GB + 64GB (optional) |
| Expansion | Supports up to 128 GB Micro SD card |
Ambiente do usuário
| Operating Temp. | 4 °F to 122 °F / -20 °C to 50 °C |
| Storage Temp. | -40 °F to 158 °F / -40 °C to 70 °C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.8 m / 5.9 ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP65 / IP67 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±6 KV conductive discharge |
| Note | * Operating temperature of UHF version: -20°C to 45°C |
Leitura de código de barras
| 1D Linear Scanner | Zebra: SE965; Honeywell: N4313 |
| 2D Imager Scanner | Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | * This function is optional |
RFID UHF
| Engine | CM-Q module; CM-3N module based on Impinj E310 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular polarization (1.5 dBi) |
| Power | 1W (+19 dBm to +30 dBm adjustable) |
| Max Read Range | Impinj E310 chip: 3m (Impinj MR6 tag, size 70 x 15mm) 3m (Impinj M750 tag, size 70 x 15mm) 4m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note | * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. |
Câmera
| Front Camera | 5 MP *This function is optional |
| Rear Camera | 13 MP autofocus rear camera with flash |
NFC
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
Acessórios opcionais
| Accessories | USB Cable, Adapter. |
| Note | *See details in accessory guide |
