Informação do produto

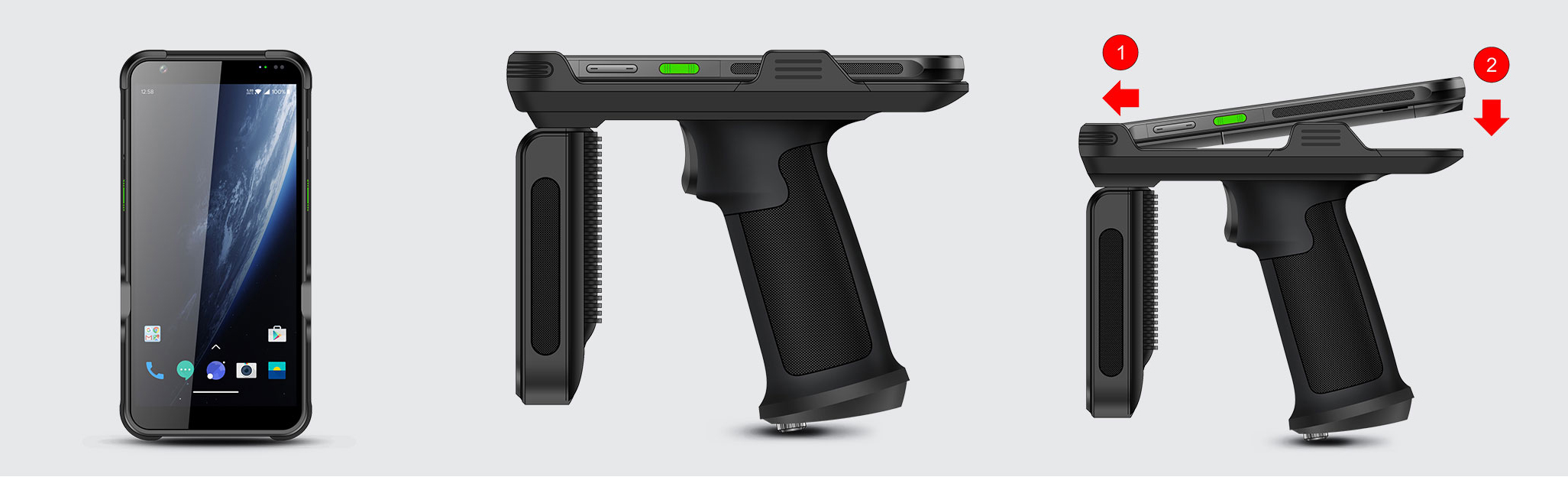

Nimbus é o nosso mais recente leitor RFID portátil, redefinindo eficiência e desempenho. Com Android 12, conectividade 5G e um processador octa-core de 2,0 GHz, ele garante uma transmissão de dados extremamente rápida. A impressionante tela HD de 6 polegadas oferece visibilidade aprimorada, enquanto o chip Impinj E710 proporciona desempenho UHF excepcional, com alcance máximo de leitura de até 30 metros. Apresentando uma bateria removível de 5000mAh e uma bateria opcional de alça de gatilho de 5200mAh, garante uso prolongado. Leitura de código de barras, recursos NFC e câmeras duplas aumentam a versatilidade. Com vedação IP67, foi construído para resistir a ambientes desafiadores. Este leitor RFID define a referência em confiabilidade e inovação.

Features
Android 12	5G
Octa-core 2.0GHz	5000mAh Removable Battery
5200mAh Trigger Handle Battery (Optional)	IP67 Sealing
Functions
Barcode Scanning (Optional)	NFC
Front & Rear Dual Camera	Impinj E710 chip
Bluetooth 5.1

Especificações

Características físicas

Dimensions	165.0 x 83.8x 138.0mm / 6.49 x 3.30 x 5.43 in.
Weight	679g / 23.95oz. (device with battery)
Display	6-inch high definition display (18:9), 1440 x 720
Touch Panel	Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power	5000mAh removable main battery 5200mAh removable pistol battery with / without Meter(Optional) support QC3.0 and RTC
Interfaces	USB Type-C, USB 3.1, OTG
Audio	2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver
Keypad	Power key, 2 scan keys, volume (+/-) keys
Sensors	G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
Sensors	Accelerometer sensor, light sensor, proximity sensor, gravity sensor



Comunicação

WLAN	Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc.
WWAN	2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41 5G: N1/N3/N8/N28/N41/N78/N79
Bluetooth	Bluetooth 5.1
Vo-LTE	Support Vo-LTE HD video voice call
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna



Ambiente em Desenvolvimento

Operating System	Android 12
SDK	Software Development Kit
Language	Java
Tool	Eclipse / Android Studio



Desempenho

CPU	Octa-core, 2.0GHz
RAM+ROM	4GB + 64GB / 6GB + 128GB (Optional)
Expansion	Supports up to 256GB TF card



Ambiente do usuário

Operating Temp.	-4°F to 122°F / -20°C to +50°C
Storage Temp.	-40°F to 158°F / -40°C to +70°C
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification	1000 x 0.5m / 1.64ft. falls at room temperature
Sealing	IP67 per IEC sealing specifications



Leitura de código de barras

2D Scanner	Zebra: SE4710; CM60;
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note	*This function is optional



RFID UHF

Engine	CM710-1 module based on Impinj E710
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Circular Polarized Antenna (4 dBi)
Power	1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate	1300+ tags/sec (Circular Polarized)
Communication Mode	Pin Connector
Max Read Range	26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note2	*This function is optional *Ranges and rates depend on tags and environment



Câmera

Front Camera	5MP
Rear Camera	16MP Autofocus with flash



NFC

Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm



Acessórios opcionais

Accessories	USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc.
Note	*See details in accessory guide
