Informação do produto

Nebula Pro é uma ferramenta multifuncional de alto desempenho projetada para atender às necessidades dos usuários em vários campos. Equipado com processador Qualcomm Snapdragon 662 e 3 GB ou 4 GB de RAM opcionais, além de 32 GB ou 64 GB de armazenamento interno, garante operação suave e multitarefa eficiente. A funcionalidade inclui suporte para RFID UHF, leitura de código de barras, NFC e muito mais, tornando-o adequado para gerenciamento de armazém, rastreamento logístico, checkout de varejo e outros cenários. Apresentando uma tela IPS de 5,5 polegadas, design ergonômico e alça de gatilho opcional para melhor manuseio, oferece uma experiência de usuário aprimorada. Além disso, a longa duração da bateria, o carregamento rápido e a durabilidade robusta aumentam ainda mais sua praticidade e confiabilidade.

Features
Android 11/13	Qualcomm Octa-core 2.0GHz
5.5" IPS Display	Optional Trigger Handle: (Extended 5200mAh Battery)
4420mAh/5200mAh Removable Battery	QC3.0 18W Quick Charge
Functions
UHF RFID (Impinj E710/E510 Chip)	Barcode Scanning (Optional)
NFC	Support UHF Sled (Optional)
13MP Autofocus Camera	Wi-Fi 6-ready

Especificações

Características físicas

Dimensions	160.0 x 76.0 x 15.5 mm / 6.3 x 2.99 x 0.61 in.
Weight	657 g / 23.17 oz. (with battery, UHF 1, UHF back clip) 798 g / 28.15 oz. (with battery, UHF 2, Nebula+Sled reader) 297 g / 10.47 oz. (with battery, UHF 3, Built-in UHF)
Display	5.5-inch high definition full display (18:9) , IPS 1440 x 720
Battery	Removable main battery (normal version:4420 mAh ; with fingerprint / built-in UHF / volume measurement version: 5200mAh ) 5200 mAh optional pistol battery, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel	Multi-touch panel, gloves and wet hands supported
Notification	Sound, LED indicator, vibrator
Interfaces	USB Type-C, USB 3.1, OTG, extended thimble;
Card slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio	2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad	1 power key, 2 scan keys, 2 volume keys
Sensors	Accelerometer sensor, light sensor, proximity sensor, gravity sensor



Comunicação

WLAN	Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc.
WWAN (Europe, Asia)	2G: 850/900/1800/1900 MHz 3G: CDMA EVDO: BC0        WCDMA: 850/900/1900/2100MHz        TD-SCDMA: A/F(B34/B39) 4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
WWAN (America)	2G: 850/900/1800/1900 MHz 3G: 850/900/1900/2100 MHz 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth	Bluetooth 5.1
Vo-LTE	Support Vo-LTE HD video voice call
GNSS	GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note	*Nebula models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.



Ambiente em Desenvolvimento

Operating System	Android 11/13; GMS, 90-day security updates, Android Enterprise, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 16 pending feasibility
SDK	Software Development Kit
Language	Java
Tool	Eclipse / Android Studio



Desempenho

CPU	Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM+ROM	3 GB + 32 GB 4 GB + 64 GB (optional)
Expansion	Supports up to 128 GB Micro SD card



Ambiente do usuário

User Environment
Operating Temp.	-20 ℃~+50 ℃
Storage Temp.	-40 ℃~+70 ℃
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 per IEC sealing specifications
ESD	±15 KV air discharge, ±8 KV conductive discharge



Leitura de código de barras

2D Scanner	Zebra: SE4710 / SE2100; Honeywell: N6603; E3200; IA166S; CM60
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note	*This function is optional



UHF1

Engine	CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11, Impinj Prtoected Mode Supported
Antenna	Circular Polarized Antenna (4dBi)
Power	1W (30dBm, +5 dBm to +30 dBm adjustable) 2W Optional (33dBm, for Latin America, etc.)
Max Read Range	Impinj E710 chip: 28m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 32m (Alien H3 Anti-Metal tag, size 130 x 42mm) Impinj R2000 chip: 22m (Impinj MR6 tag, size 70 x 15mm) 24m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate	1300+ tags/sec
Communication Mode	Pin Connector
Note	* UHF back clip * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. * This function is optional



UHF2

Engine	CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Antenna	Circular Polarized Antenna (3 dBi)
Power	1W (30 dBm, support +5~+30 dBm adjustable) 2W Optional (33 dBm, for Latin America, etc.)
Max Read Range	Impinj E710 chip: 30m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 31m (Alien H3 Anti-Metal tag, size 130 x 42mm) Impinj R2000 chip: 25m (Impinj MR6 tag, size 70 x 15mm) 26m (Impinj M750 tag, size 70 x 15mm) 25m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate	1300+ tags/sec
Communication Mode	Pin Connector / Bluetooth
Note	* Nebula + UHF Sled * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. * This function is optional



UHF3

Engine	CM-5N module based on Impinj E510
Frequency	865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol	EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11
Antenna	Circular polarization (-2.5 dBi)
Power	1 W (+5dBm to +30dBm adjustable)
Max Read Range	2.4m (Impinj MR6 tag, size 70 x 15mm) 2.6m (Impinj M750 tag, size 70 x 15mm) 2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note	* Build-in UHF * Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. * This function is optional; built-in UHF version does not support pistol



Câmera

Camera

Rear 13 MP Autofocus with flash



NFC

Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm



Acessórios opcionais

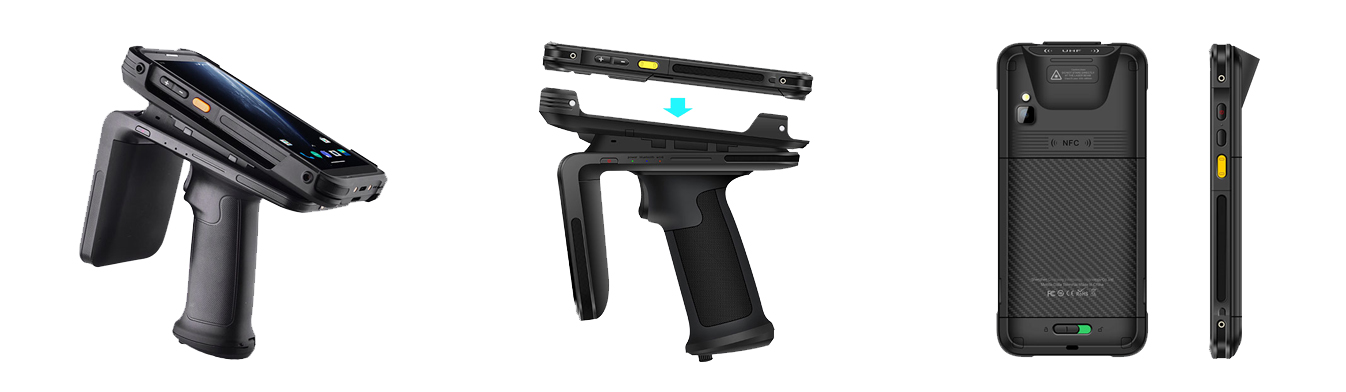

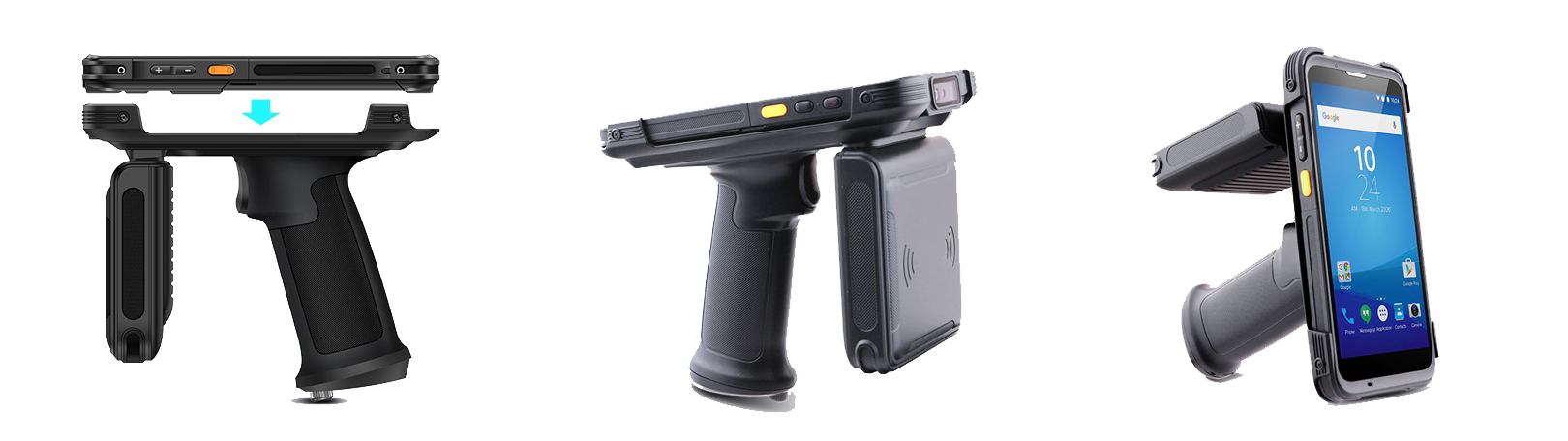

Accessories	Separate handle with one button； Handle + battery (handle battery 5200mAh, one button) ; UHF back clip + handle (5200mAh, one button) ; Wrist Strap; Rubber Bumper; Charging Cradle
Note	*See details in Accessory Guide
