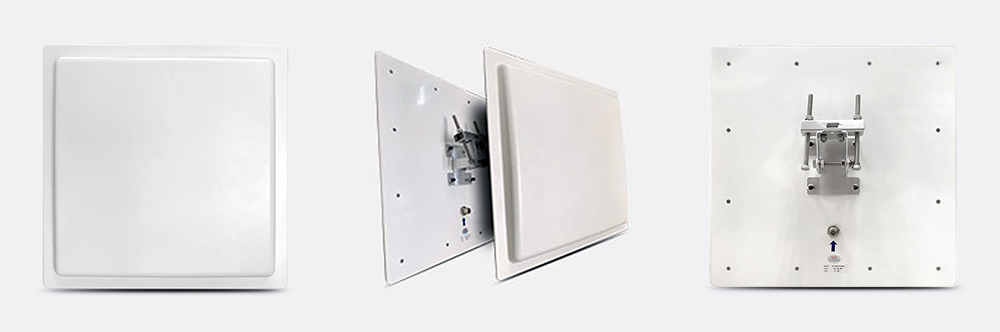

12dBi Panel Antenna
Excelente desempenho em UHF, atendendo diversas aplicações.
Informação do produto
| Features | |
| Fast Read & Write | Install and Use Conveniently |
| Long Read & Write Distance | IP67 |
| Functions | |
| Intelligent Transport System | Intelligent Parking Management |
| Sports Event Application | Logistics & Warehouse |
| Healthcare | Eletricity |
Característicos
- Attractive, install and use conveniently.
- Fast read & write, high performance, Long read & write distance.
- IP67
Especificações
Elétrico
| Frequency Range | 902-928MHz/865-868MHz |
| Polarization Type | RHCP |
| Gain | 12dBi |

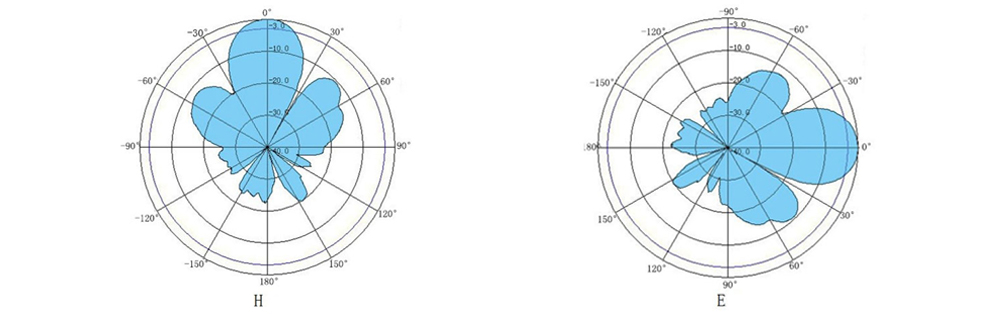

| 3dB Beam-Width.H-Plan | 40° |
| 3dB Beam-Width.E-Plan | 38° |
| VSWR | ≤1.3 |
| Front to backRatio | ≥17dB |
| Input Impedance | 50Ω |
| Max Input Power | 20W |
| Lightning Protection | DC Grounded |
Mecânico
| Connector Type | N-Type Female |
| Dimensions H*W*D (mm) | 445*445*30(mm) |
| Weight | 2.66kg(with mounting bracket) |
| Radome Material | ABS |
| Radome color | Off-white |
| Radiant board material | aluminum |
| Operating Temperature | -40°C/+60℃ |
| Sealing | IP67 |
| Installation mode | Pole mounted or Wall mounted |
| Support Pole Diameter | φ30-φ50(mm) |
| Rated Wind Velocity | 60m/s |
Aplicativo:
- Intelligent transport system.
- Intelligent parking management---automatic vehicle identification.
- Expressway management--- automatic identification of driving route, traffic flow, information collection and so on.
- Logistics &warehouse management.
- Sports event application.
- Personnel, access control, goods, animal husbandary management.
- Other applications: manufacturing, retail, national defense security, electricity, finance, tickets, medical equipment, school, attendance, dining, swimming pool management.
