Nimbus - UHF RFID Reader (5G, Android 12)
Faster 5G Wireless Transmission, a Larger 6” Screen and Exceptionally UHF Performance
Product Information

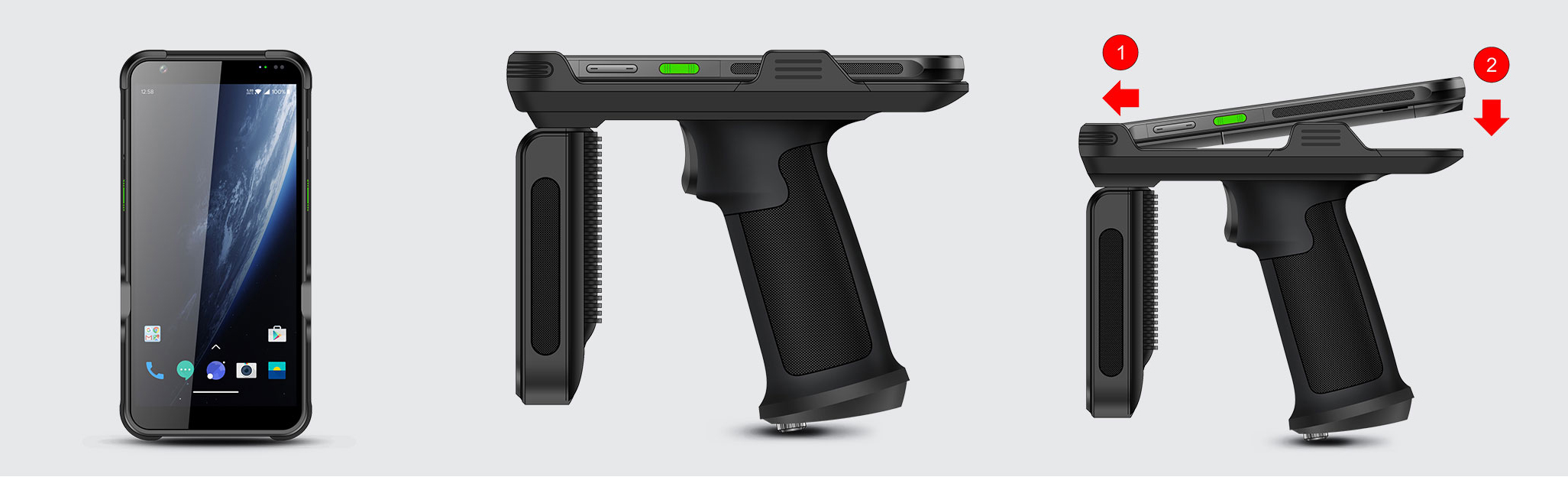

Nimbus is our latest Handheld RFID Reader, redefining efficiency and performance. With Android 12, 5G connectivity, and an octa-core 2.0GHz processor, it ensures lightning-fast data transmission. The impressive 6-inch HD display offers enhanced visibility, while the Impinj E710 chip powers exceptional UHF performance, with a max read range of up to 30 meters. Featuring a 5000mAh removable battery and optional 5200mAh trigger handle battery, it guarantees extended usage. Barcode scanning, NFC capabilities, and dual cameras enhance versatility. With IP67 sealing, it's built to withstand challenging environments. This RFID Reader sets the benchmark for reliability and innovation.
| Features | |
| Android 12 | 5G |
| Octa-core 2.0GHz | 5000mAh Removable Battery |
| 5200mAh Trigger Handle Battery (Optional) | IP67 Sealing |
| Functions | |
| Barcode Scanning (Optional) | NFC |
| Front & Rear Dual Camera | Impinj E710 chip |
| Bluetooth 5.1 |
Specifications
Physical Characteristics
| Dimensions | 165.0 x 83.8x 138.0mm / 6.49 x 3.30 x 5.43 in. |
| Weight | 679g / 23.95oz. (device with battery) |
| Display | 6-inch high definition display (18:9), 1440 x 720 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Power | 5000mAh removable main battery 5200mAh removable pistol battery with / without Meter(Optional) support QC3.0 and RTC |
| Interfaces | USB Type-C, USB 3.1, OTG |
| Audio | 2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver |
| Keypad | Power key, 2 scan keys, volume (+/-) keys |
| Sensors | G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope |
| Sensors | Accelerometer sensor, light sensor, proximity sensor, gravity sensor |
Communication
| WLAN | Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc. |
| WWAN | 2G: 850/900/1800/1900MHz 3G: 850/900/1900/2100MHz 4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41 5G: N1/N3/N8/N28/N41/N78/N79 |
| Bluetooth | Bluetooth 5.1 |
| Vo-LTE | Support Vo-LTE HD video voice call |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
| GNSS | GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna |
Developing Environment
| Operating System | Android 12 |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse / Android Studio |
Performance
| CPU | Octa-core, 2.0GHz |
| RAM+ROM | 4GB + 64GB / 6GB + 128GB (Optional) |
| Expansion | Supports up to 256GB TF card |
User Environment
| Operating Temp. | -4°F to 122°F / -20°C to +50°C |
| Storage Temp. | -40°F to 158°F / -40°C to +70°C |
| Humidity | 5% RH - 95% RH non condensing |
| Drop Specification | Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m / 1.64ft. falls at room temperature |
| Sealing | IP67 per IEC sealing specifications |
Barcode Scanning
| 2D Scanner | Zebra: SE4710; CM60; |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. |
| Note | *This function is optional |
UHF RFID
| Engine | CM710-1 module based on Impinj E710 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC C1 GEN2 / ISO18000-6C |
| Antenna | Circular Polarized Antenna (4 dBi) |
| Power | 1W (30dBm, +5dBm to +30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 1300+ tags/sec (Circular Polarized) |
| Communication Mode | Pin Connector |
| Max Read Range | 26m (Impinj MR6 tag, size 70 x 15mm) 28m (Impinj M750 tag, size 70 x 15mm) 30m (Alien H3 Anti-Metal tag, size 130 x 42mm) |
| Note2 | *This function is optional *Ranges and rates depend on tags and environment |
Camera
| Front Camera | 5MP |
| Rear Camera | 16MP Autofocus with flash |
NFC
| Frequency | 13.56 MHz |
| Protocol | ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc. |
| Chips | M1 card (S50, S70), CPU card, NFC tags, etc. |
| Range | 2-4 cm |
Optional Accessories
| Accessories | USB Cable, Adapter, Charging Cradle, Rugged Rubber Boot, etc. |
| Note | *See details in accessory guide |
