Product Information

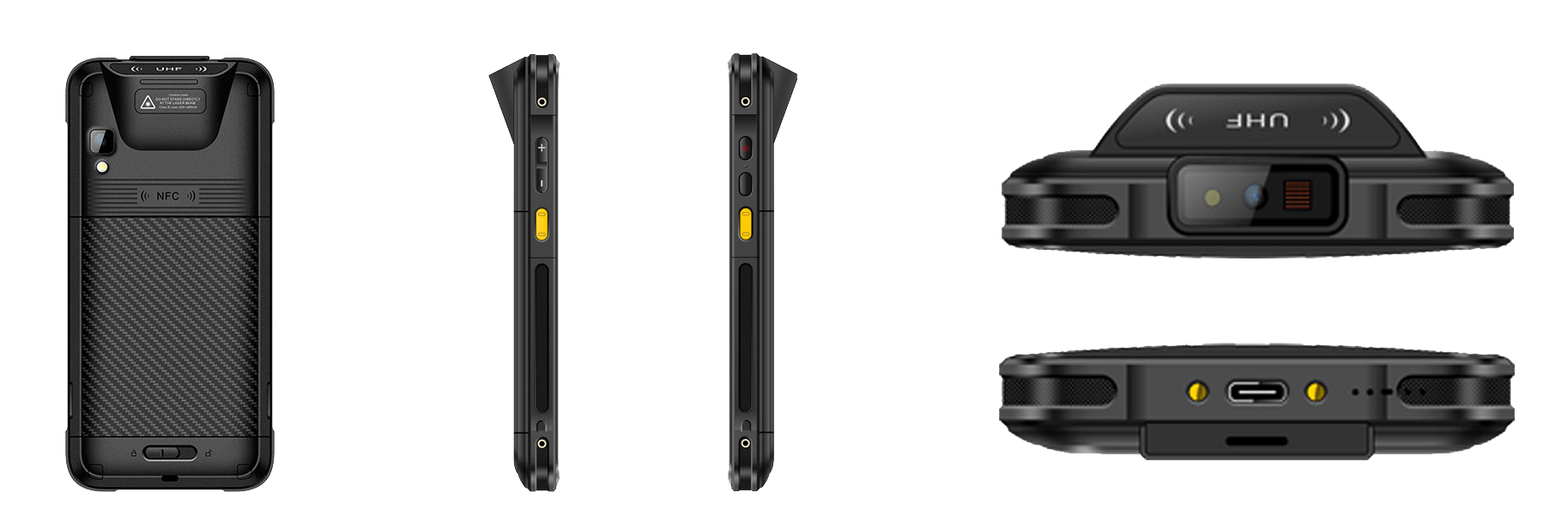

Nebula is our compact RFID Reader powered by Android 11. With a Qualcomm Snapdragon™ 662 Octa-core processor, it offers seamless performance. The built-in UHF RFID functionality, driven by Impinj E510 Chip, ensures a max read range of up to 2.7 meters, simplifying inventory management. Optional barcode scanning and NFC capabilities enhance its versatility. Its robust design, including IP65 sealing and rigorous testing, guarantees durability. Whether for inventory, asset tracking, or logistics, this RFID Reader delivers unmatched efficiency and reliability.

Features
Android 11	Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
5.5" IPS Display	RAM+ROM: 3+32GB/4+64GB (Optional)
5200mAh Removable Battery	QC3.0 Quick Charge and RTC
Functions
Built-in UHF RFID (Impinj E510 Chip)	Barcode Scanning (Optional)
NFC	13MP Autofocus Camera
Wi-Fi 6-ready

Specifications

Physical Characteristics

Dimensions	160.0 x 76.0 x 17.0 mm / 6.3 x 2.99 x 0.67 in.
Weight	297 g / 10.47 oz. (device with battery)
Display	5.5-inch high definition full display (18:9), IPS 1440 x 720
Battery	Removable main battery 5200mAh, support QC3.0 and RTC Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h) Continuous use: over 12 hours (depending on user environment) Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel	Multi-touch panel, gloves and wet hands supported
Notification	Sound, LED indicator, vibrator
Interfaces	USB Type-C, USB 3.1, OTG, extended thimble;
Card slot	1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio	2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad	1 power key, 2 scan keys, 2 volume keys
Sensors	Accelerometer sensor, light sensor, proximity sensor, gravity sensor



Communication

WLAN	Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA Fast roaming: PMKID caching, 802.11r, OKC Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165), Depends on local regulations Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc
WWAN (Europe, Asia)	2G: 850/900/1800/1900 MHz 2G: 850/900/1800/1900 MHz       WCDMA: 850/900/1900/2100MHz       TD-SCDMA: A/F(B34/B39) 4G: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
WWAN (America)	2G: 850/900/1800/1900 MHz 3G: 850/900/1900/2100 MHz 4G: B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
Bluetooth	Bluetooth 5.1
Vo-LTE	Support Vo-LTE HD video voice call
GNSS	GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna



Developing Environment

Operating System	Android 11 / 13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported
SDK	Software Development Kit
Language	Java
Tool	Eclipse / Android Studio



Performance

CPU	Qualcomm Snapdragon™ 662 Octa-core, 2.0 GHz
RAM+ROM	3 GB + 32 GB / 4 GB + 64 GB
Expansion	Supports up to 128 GB Micro SD card



User Environment

Operating Temp.	-4°F to 122°F / -20 ℃ to +50 ℃
Storage Temp.	-40°F to 158°F / -40 ℃ to +70 ℃
Humidity	5% RH - 95% RH non condensing
Drop Specification	Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
Tumble Specification	1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing	IP65 per IEC sealing specifications
ESD	±15 KV air discharge, ±8 KV conductive discharge



Barcode Scanning

2D Scanner	Zebra: SE4710/SE2100; Honeywell: N6603; E3200; IA166S; CM60
1D Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies	PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note	*This function is optional



UHF RFID

Engine	CM-5N module based on Impinj E510
Frequency	865-868MHz / 920-925MHz / 902-928MHz
Protocol	EPC C1 GEN2 / ISO18000-6C
Antenna	Circular polarization (-5 dBi)
Power	1W (+19dBm to +30dBm adjustable)
Max Read Range	2.4m (Impinj MR6 tag, size 70 x 15mm) 2.6m (Impinj M750 tag, size 70 x 15mm) 2.7m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Note	* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment. * built-in UHF version does not support pistol



Camera

Camera

Rear 13MP Autofocus with flash



NFC

Frequency	13.56 MHz
Protocol	ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips	M1 card (S50, S70), CPU card, NFC tags, etc.
Range	2-4 cm



Optional Accessories

Accessories

Wrist Strap; Rubber Bumper; Charging Cradle
