Harmony - Fixed RFID Reader
Outstanding UHF RFID Performance
Product Information

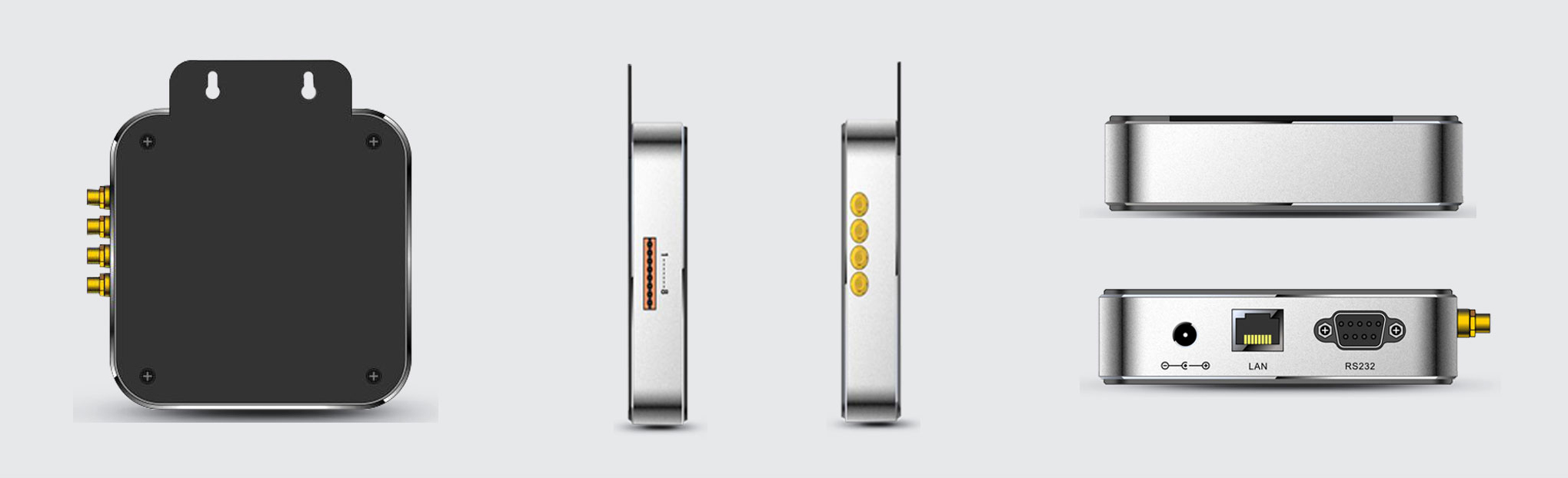

Harmony is a four-port fixed UHF RFID reader featuring the Impinj E710/R2000 RFID chip. It seamlessly supports RS232 and RJ45 connections and is compatible with a variety of antennas. Resistant to electromagnetic interference and boasting excellent heat dispersion, the CR6 is engineered for reliability. With its high integration level and stable capacity, this RFID reader excels in diverse environments, including warehousing, archives, library management, banking, apparel, jewelry, production lines, medical equipment cabinets, and vending machines.
| Features | |
| UHF RFID (Impinj E710/R2000 Chip) | Stylish Design |
| DC 12V Power Supply | Supports RS232/RJ45 |
| Compatible with Various Types of Antennas | |
| Functions | |
| Jewelry Monitoring | Vending Machines |
| Intelligent Manufacture | Archives and Library Management |
| Inventory Management | Clothing and Footwear Retail |
Specifications
Physical Characteristics
| Dimensions | 102.8 mm(L) x 102.8 mm(W) x 28 mm(H) |
| Weight | 329 g / 11.6 oz.(without antenna) |
| Material | Aluminium alloy |
| Input Voltage | DC 9V – 12V |
| Standby Current | < 30mA |
| Comm Interface | RS-232 / RJ45 |
| GPIO | 2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve) |
| Baud Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Work Current | 800mA +/-5% @ DC 12V Input |
| Ethernet interface | 10/100 Base-T Ethernet (RJ45) |
Developing Environment
| SDK | Windows, Linux, Android |
User Environment
| Operating Temp. | -25 °C to 65 °C |
| Storage Temp. | -40 °C to 85 °C |
| Humidity | 10% - 95% |
UHF RFID
| Engine | CM710-4 module based on Impinj E710 CM2000-4 module based on Impinj Indy R2000 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Antenna | Supporting a variety of antennas, such as 6dBic, 9dBic |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, support +10~+33dBm adjustable, for Latin America, etc.) |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -84 dBm |
| RSSI | Supported |
| Ambient Temp Monitor | Supported |
| Fastest Read Rate | 900+ tags/sec |
| Antenna Detector | Supported |
| Antenna Port | 4 channel 50Ω SMA port |
