Matrix - Fixed RFID Reader (Android 9)
Excellent RFID Capability with Suitable Android OS & Various Interface
Product Information
Matrix is a cutting-edge 4-port fixed UHF RFID reader powered by Android 9.0 and a Qualcomm octa-core processor. Experience lightning-fast read rates, enhanced sensitivity, and exceptional stability, even in high RF interference environments. Its robust design and advanced features ensure consistent performance across diverse applications. With multiple connectivity options including RS232, RJ45 (supporting POE/POE+), HDMI, Type-C, USB, GPIO, and more, the CRA6 offers unmatched flexibility. Seamlessly compatible with various antenna types, it delivers optimal performance in any scenario. Meet the ultimate solution for your RFID needs—CRA6: engineered for unparalleled performance, reliability, and adaptability.
| Features | |
| UHF RFID (Impinj E710/R2000 Chip) | Android 9 |
| Supports RS232/RJ45/HDMI | Heat Dispersion |
| 8000mAh Powerful Battery | |
| Functions | |
| Jewelry Monitoring | Shopping Guide |
| Vending Machines | Intelligent Manufacture |
| Archives and Library Management | Clothing and Footwear Retail |
Specifications

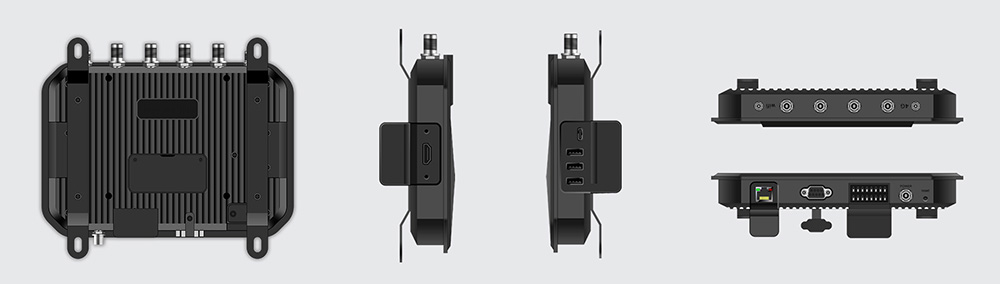

Physical Characteristics
| Dimensions | 214 (L) x 148 (W) x 30 (H) mm |
| Weight | 1000g / 35.27 oz. (without antenna) |
| Material | Aluminium alloy |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for TF card |
| Input Voltage | DC 10V – 24V |
| Standby Current | < 30mA |
| Comm Interface | 1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host |
| GPIO | 4 Input Optical-couplings, 4 Output Optical-ouplings, isolation, 1 Wiegand (optional) |
| Baud Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Work Current | 1300mA +/-5% @ DC 12V Input |
| Display Interface | HDMI Type A, support 720P |
| Power Supply | DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W) |
Communication
| Ethernet interface | 10/100 Base-T Ethernet (RJ45) |
| WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149, 153,157,161,165), Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
| WWAN (Europe, Asia) | 2G: B1/B5/B8 3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20 |
| WWAN (America) | 3G: B2/B4/B5 4G: B2/B4/B5/B7/B12/B13/B17/B28a/B28b |
| Bluetooth | Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR |
Developing Environment
| Operating System | Android 9.0 |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse/Android Studio |
Performance
| CPU | Qualcomm 1.8 GHz Octa-core |
| RAM+ROM | 3 GB + 32 GB 2 GB + 16 GB (optional) |
User Environment
| Operating Temp. | -25 °C to 65 °C |
| Storage Temp. | -40 °C to 85 °C |
| Humidity | 10% - 95% |
UHF RFID
| Engine | CM710-4 module based on Impinj E710 CM2000-4 module based on Impinj Indy R2000 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Antenna | Supporting a variety of antennas, such as 6dBic, 9dBic |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable, POE/DC power) 2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.) |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -84dBm |
| RSSI | Supported |
| Ambient Temp Monitor | Supported |
| Fastest Read Rate | 900+ tags/sec |
| Antenna Detector | Supported |
| Antenna Port | 4 channel 50Ω TNC port |
