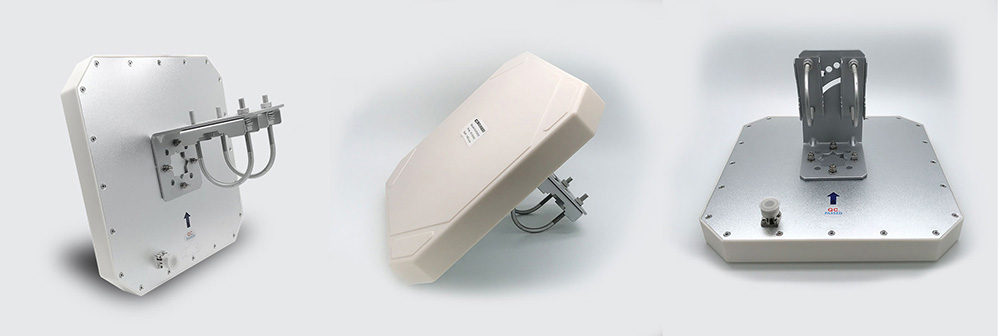

9dBi Panel Antenna
Environmental Adaptability, Easy Installation
Product Information
| Features | |
| Fast Read & Write | Install and Use Conveniently |
| Long Read & Write Distance | IP67 |
| Functions | |
| Logistics & Warehouse | Retail & Garment Industry |
| Eletricity | Access Control |
Features
- Antenna and reader is separated.
- Light weight and small size,low profile, install and use conveniently.
- Fast read & write, high performance, convenient, long read & write distance.
- IP67.
Specifications
Electrical
| Frequency Range | 902-928MHz/865-868MHz |
| Polarization Type | RHCP |
| Gain | 9dBi |

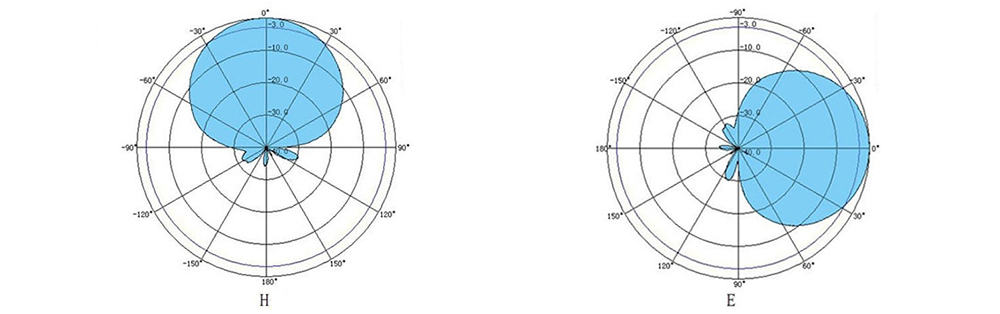

| 3dB Beam-Width.H-Plan | 60° |
| 3dB Beam-Width.E-Plan | 55° |
| VSWR | ≤1.3 |
| Front to backRatio | ≥17dB |
| Input Impedance | 50Ω |
| Max Input Power | 20W |
| Lightning Protection | DC Grounded |
Mechanical
| Connector Type | N-Type Female |
| Dimensions H*W*D (mm) | 255*255*30(mm) |
| Weight | 1.27kg(with mounting bracket) |
| Radome Material | ABS |
| Radome color | Off-white |
| Radiant board material | aluminum |
| Operating Temperature | -40°C/+60℃ |
| Sealing | IP67 |
| Installation mode | Pole mounted or Wall mounted |
| Support Pole Diameter | φ30-φ50(mm) |
| Rated Wind Velocity | 60m/s |
Application:
- Application
- Logistics&warehouse, production line and shelves management
- Access control, parking lot management
- Retail & garment industry
- Anti-counterfeit management
- Material management, medical equipment, electricity, military equipment, financial, ticket, animal husbandry etc.
