5dBi Panel Antenna
Being Portable and Compact, with Its Superior Performance
Product Information
| Features | |
| Light Weight and Small Size | Fast Read & Write |
| Install and Use Conveniently | IP67 |
| Functions | |
| Logistics & Warehouse | Healthcare |
| Eletricity | Access Control |
Features
- High Performance, Low Front to back Ratio, narrow Sidelobe, Attractive.
- Light weight, Small size, Low Profile Install and use conveniently.
- Fast read & write, no Blind zone identification Multi-tags, High performance.
- IP67.
Specifications
Electrical
| Frequency Range | 902-928MHz/865-868MHz |
| Polarization Type | RHCP |
| Gain | 5dBi |

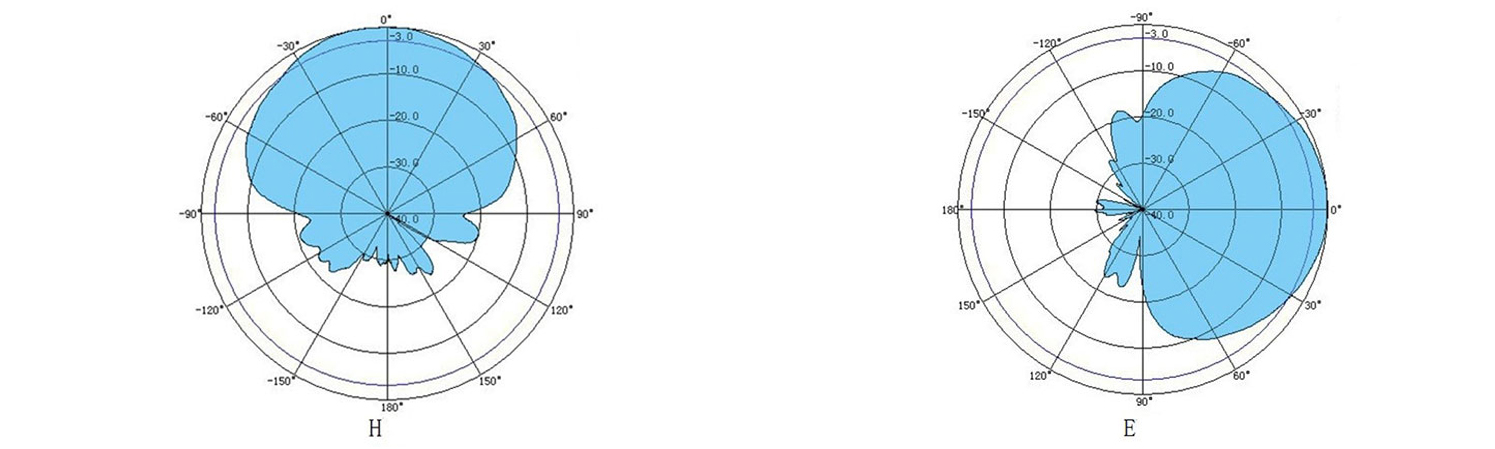

| 3dB Beam-Width.H-Plan | 80° |
| 3dB Beam-Width.E-Plan | 70° |
| VSWR | ≤1.3 |
| Front to backRatio | ≥17dB |
| Input Impedance | 50Ω |
| Max Input Power | 20W |
| Lightning Protection | DC Grounded |
Mechanical
| Connector Type | SMA female |
| Dimensions H*W*D (mm) | 145*145*20(mm) |
| Weight | 0.73kg(with mounting bracket) |
| Radome Material | ABS |
| Radome color | white |
| Radiant board material | aluminum |
| Operating Temperature | -40°C/+60℃ |
| Sealing | IP67 |

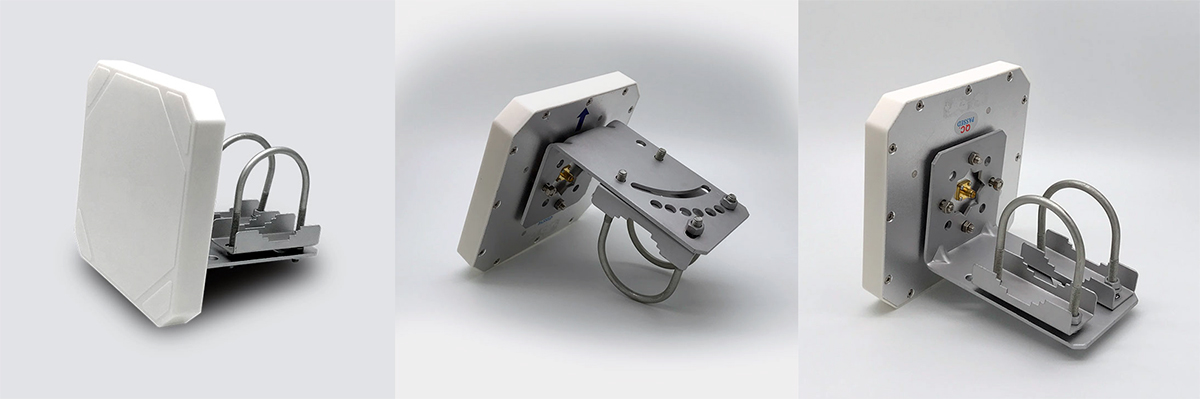

| Installation mode | Pole mounted or Wall mounted |
| Support Pole Diameter | φ30-φ50(mm) |
| Rated Wind Velocity | 60m/s |
Application:
- Logistic & warehouse management, forklift commodity reading.
- Access control.
- Production line & shelves management.
- Material management, healthcare, eletricity, military equipment, finance, tickets, animal husbandry.
