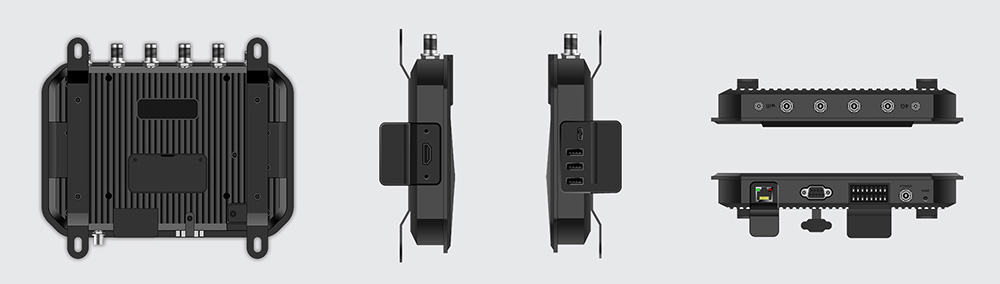

Matrix - Lector RFID fijo (Android 9)
Excelente capacidad RFID con sistema operativo Android adecuado y varias interfaces
Información del Producto
Matrix es un lector RFID UHF fijo de 4 puertos de última generación con Android 9.0 y un procesador Qualcomm octa-core. Experimente velocidades de lectura ultrarrápidas, sensibilidad mejorada y estabilidad excepcional, incluso en entornos con alta interferencia de RF. Su diseño robusto y características avanzadas garantizan un rendimiento constante en diversas aplicaciones. Con múltiples opciones de conectividad que incluyen RS232, RJ45 (compatible con POE/POE+), HDMI, Type-C, USB, GPIO y más, el CRA6 ofrece una flexibilidad inigualable. Perfectamente compatible con varios tipos de antenas, ofrece un rendimiento óptimo en cualquier escenario. Conozca la solución definitiva para sus necesidades de RFID: CRA6: diseñado para ofrecer un rendimiento, confiabilidad y adaptabilidad incomparables.
| Features | |
| UHF RFID (Impinj E710/R2000 Chip) | Android 9 |
| Supports RS232/RJ45/HDMI | Heat Dispersion |
| 8000mAh Powerful Battery | |
| Functions | |
| Jewelry Monitoring | Shopping Guide |
| Vending Machines | Intelligent Manufacture |
| Archives and Library Management | Clothing and Footwear Retail |
Especificaciones
Características físicas
| Dimensions | 214 (L) x 148 (W) x 30 (H) mm |
| Weight | 1000g / 35.27 oz. (without antenna) |
| Material | Aluminium alloy |
| Expansion Slot | 1 slot for Nano SIM card, 1 slot for TF card |
| Input Voltage | DC 10V – 24V |
| Standby Current | < 30mA |
| Comm Interface | 1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host |
| GPIO | 4 Input Optical-couplings, 4 Output Optical-ouplings, isolation, 1 Wiegand (optional) |
| Baud Rate | 115200 bps |
| Cooling Mode | Air cooling |
| Work Current | 1300mA +/-5% @ DC 12V Input |
| Display Interface | HDMI Type A, support 720P |
| Power Supply | DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W) |
Comunicación
| Ethernet interface | 10/100 Base-T Ethernet (RJ45) |
| WLAN | Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4,IPV6; Fast roaming: PMKID caching, 802.11r, OKC; Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149, 153,157,161,165), Depends on local regulations; Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC,etc. |
| WWAN (Europe, Asia) | 2G: B1/B5/B8 3G: CDMA EVDO: BC0 TD-SCDMA: B34/B39 WCDMA: B1/B5/B8 4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B3/B5/B7/B8/B20 |
| WWAN (America) | 3G: B2/B4/B5 4G: B2/B4/B5/B7/B12/B13/B17/B28a/B28b |
| Bluetooth | Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR |
Entorno en desarrollo
| Operating System | Android 9.0 |
| SDK | Software Development Kit |
| Language | Java |
| Tool | Eclipse/Android Studio |
Actuación
| CPU | Qualcomm 1.8 GHz Octa-core |
| RAM+ROM | 3 GB + 32 GB 2 GB + 16 GB (optional) |
Entorno de usuario
| Operating Temp. | -25 °C to 65 °C |
| Storage Temp. | -40 °C to 85 °C |
| Humidity | 10% - 95% |
RFID UHF
| Engine | CM710-4 module based on Impinj E710 CM2000-4 module based on Impinj Indy R2000 |
| Frequency | 865-868 MHz / 920-925 MHz / 902-928 MHz |
| Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C |
| Antenna | Supporting a variety of antennas, such as 6dBic, 9dBic |
| Output Power | 1W (30dBm, support +5~+30dBm adjustable, POE/DC power) 2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.) |
| Output Power Precision | +/- 1dB |
| Output Power Flatness | +/- 0.2dB |
| Receive Sensitivity | < -84dBm |
| RSSI | Supported |
| Ambient Temp Monitor | Supported |
| Fastest Read Rate | 900+ tags/sec |
| Antenna Detector | Supported |
| Antenna Port | 4 channel 50Ω TNC port |
